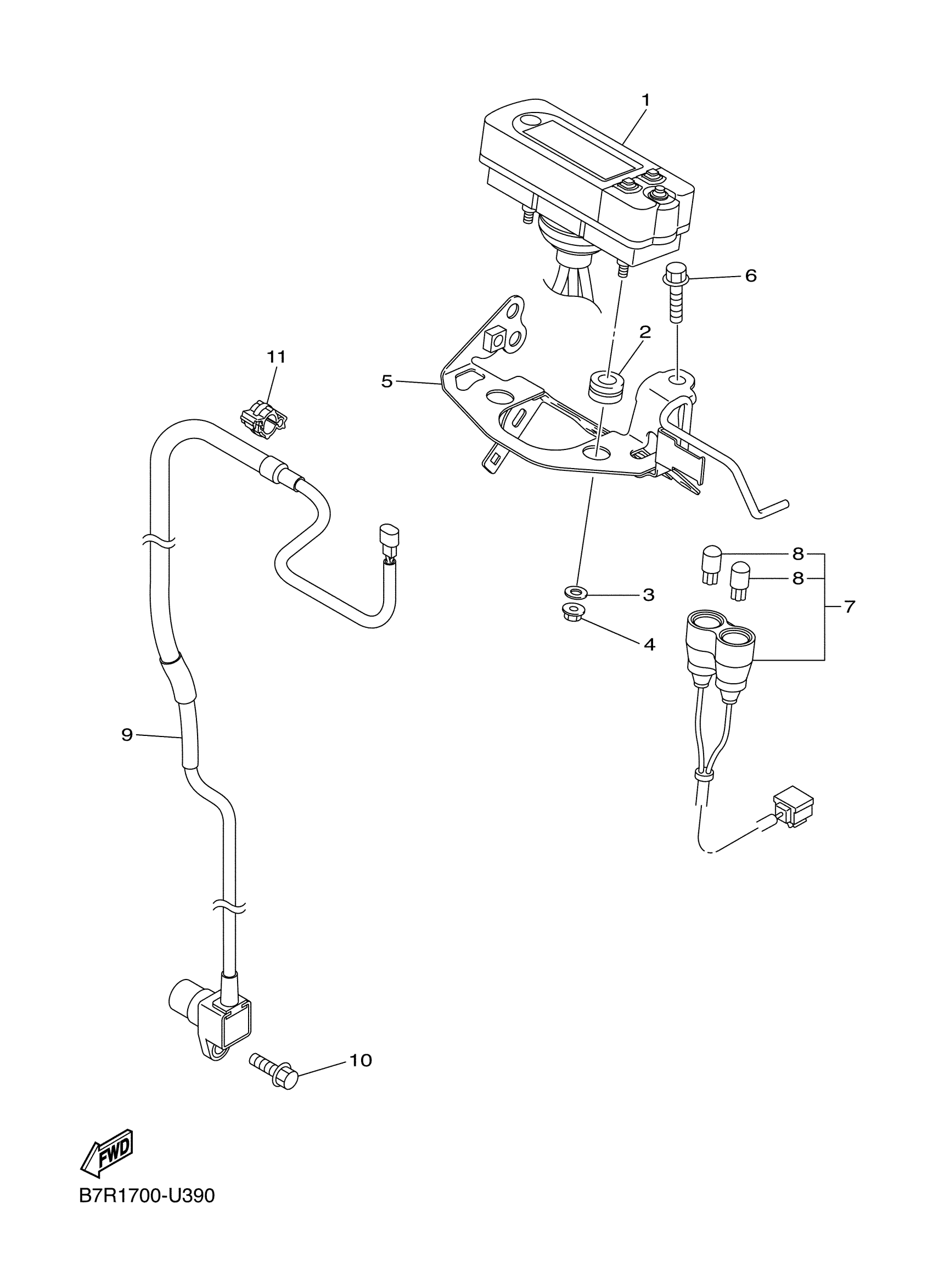

Yamaha WR250FL (WR250F) BAK2 2020 METER Diagram

#

Description
Price

1

METER ASSY

B7R-83500-20-00

Unavailable

2

GROMMET

90480-14012-00

Unavailable

3

WASHER, PLATE

90201-05021-00

$1.54

4

NUT, FLANGE

95702-05500-00

$0.73

5

BRACKET, METER

B7R-83519-01-00

Unavailable

6

BOLT, FLANGE

90105-06170-00

$3.95

7

PILOT LIGHT ASSY

2GB-83530-00-00

Unavailable

8

BULB (12V-1.7W)

3FV-83517-00-00

$6.04

9

SENSOR, SPEED

B7R-83755-00-00

Unavailable

10

BOLT, FLANGE

95022-06014-00

$2.46

11

CLAMP

90464-12013-00

$6.27
