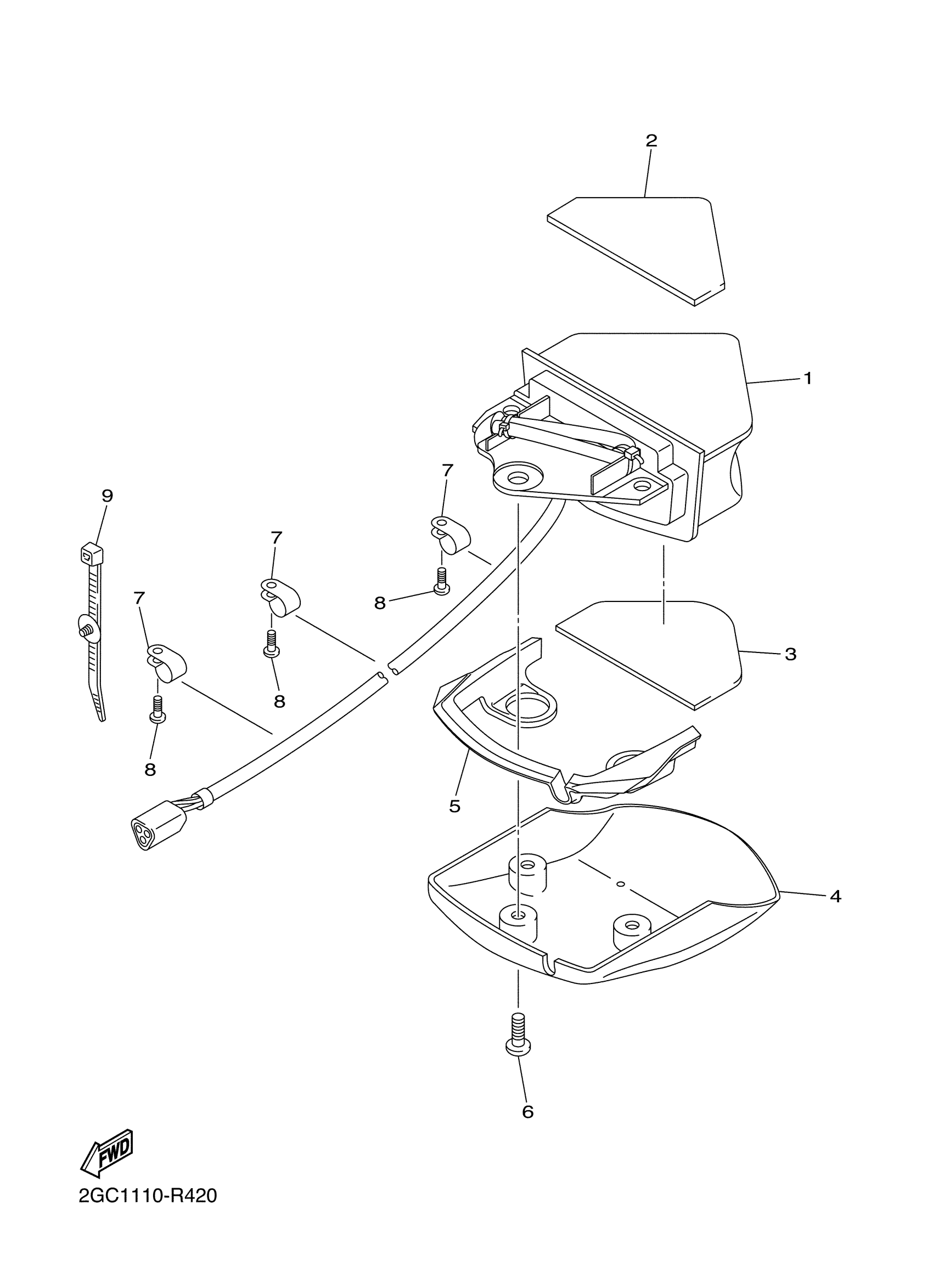

Yamaha WR250FH (WR250F) 2GBB 2017 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

BNK-84710-00-00

$222.82

2

DAMPER, TAIL 1

5UM-84736-E0-00

$3.85

3

DAMPER, TAIL 2

5UM-84737-E0-00

$3.52

4

COVER, TAILLIGHT

5UM-84716-E0-00

Unavailable

5

GROMMET

2GC-84718-00-00

$16.62

6

SCREW, TAPPING

97702-50016-00

$1.85

7

CLAMP

90464-11M18-00

$4.89

8

SCREW, TAPPING

97702-40010-00

$2.30

9

CLAMP

90464-31002-00

$3.57
