2017 Yamaha WR250F (WR250FH) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2017 Yamaha WR250F (WR250FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

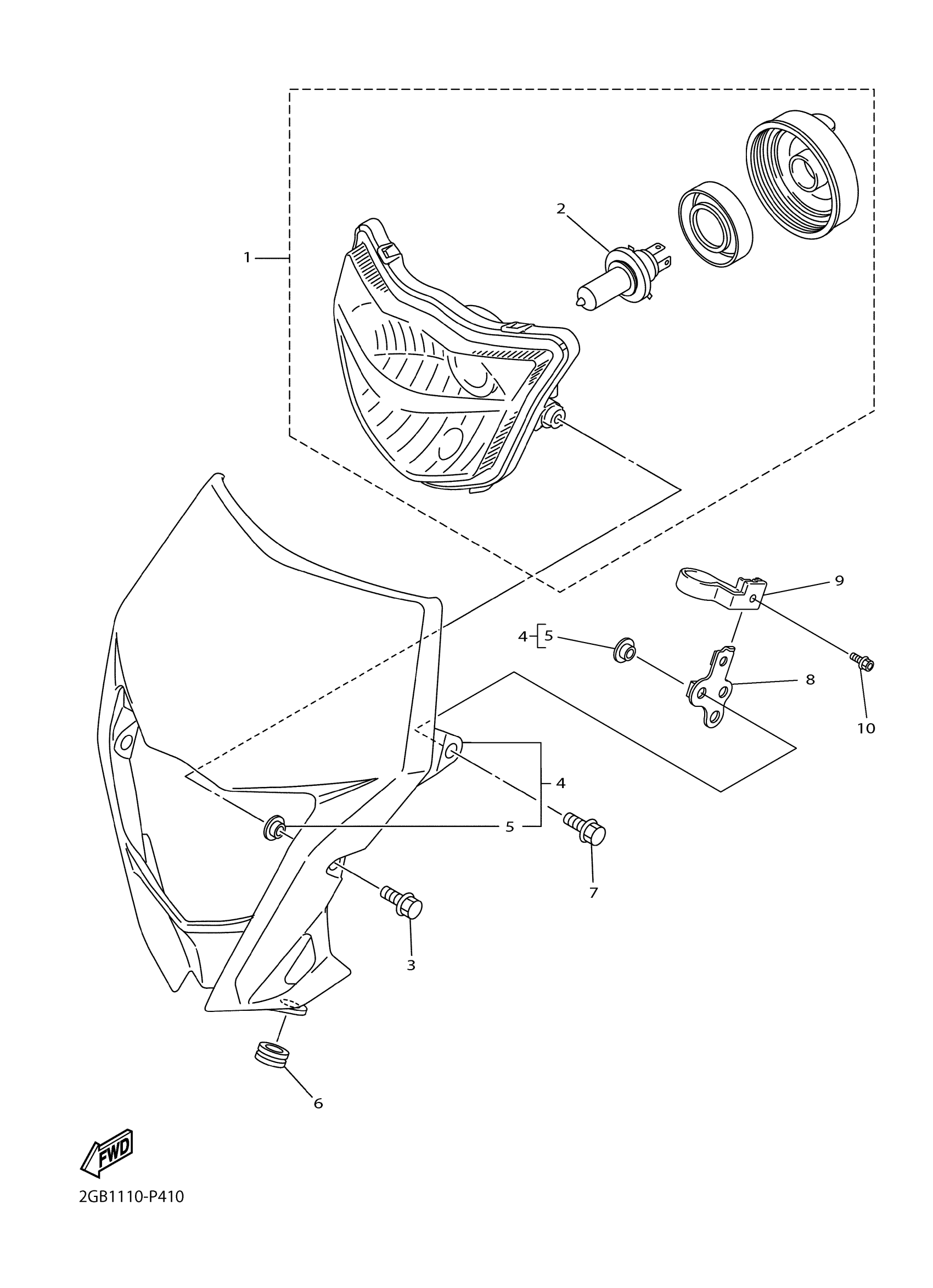

2017 Yamaha WR250F (WR250FH) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT ASSY

2GB-84300-00-00

—
Out of stock

2

BULB, HEADLIGHT (1

5ST-H4314-10-00

1

$24.78

In stock

3

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock

4

BODY ASSY

1DX-84330-00-00

1
Out of stock

5

COLLAR

90387-06170-00

1

$6.25

In stock

6

GROMMET

90480-12020-00

1

$7.23

In stock

7

BOLT, FLANGE

90105-06064-00

—

$2.66

In stock

8

STAY, HEAD LIGHT 1

2GB-2831V-00-00

1
Out of stock

9

GUIDE, CABLE

5TJ-2331E-80-00

1
Out of stock

10

BOLT, FLANGE

90105-05016-00

1

$4.38

In stock
