1992 Yamaha WR200R (WR200RD) Starter Diagram

← All diagrams

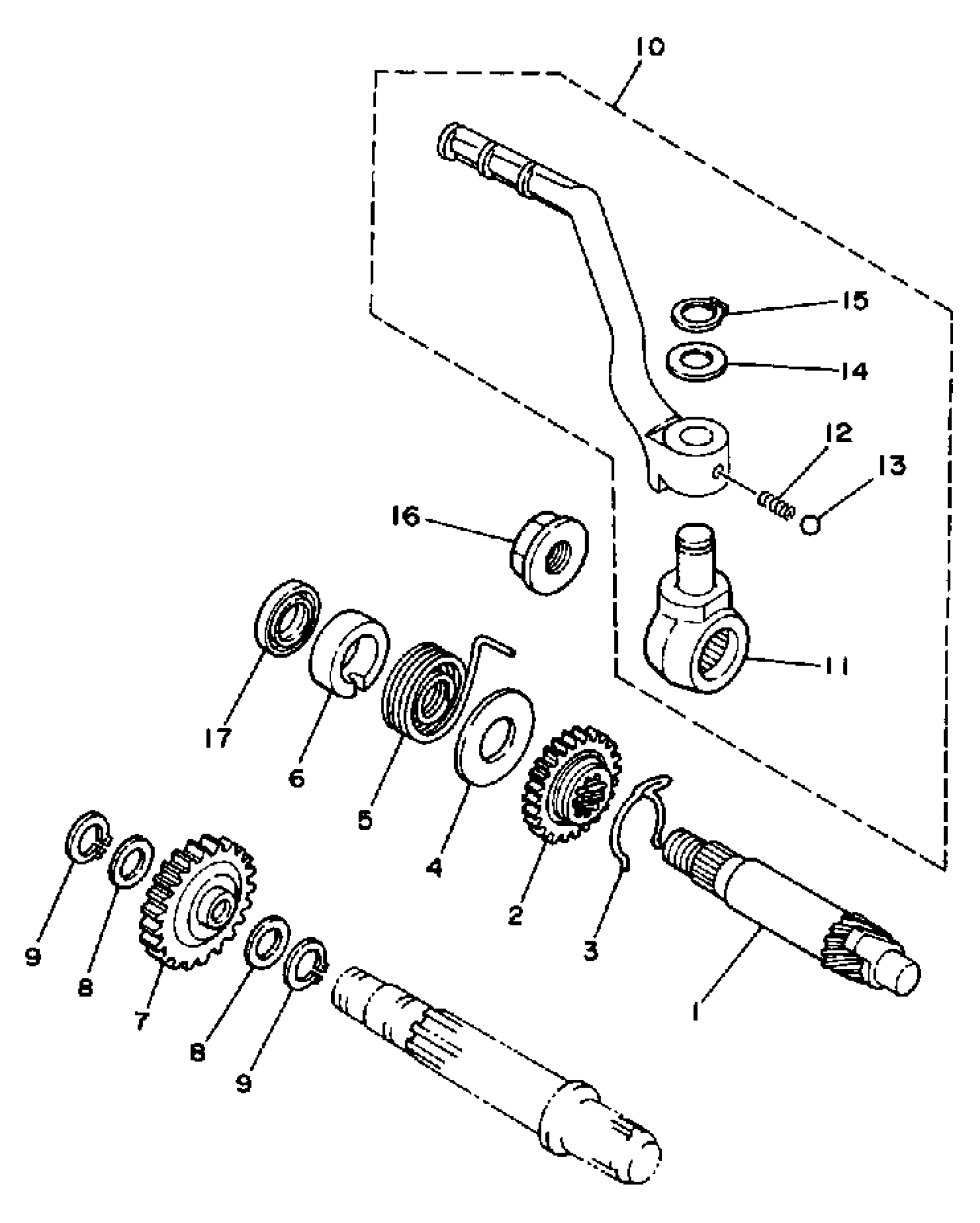

Find the part on the Starter diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha WR200R (WR200RD) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY

10V-15660-00-00

1
Out of stock

2

GEAR, KICK

10V-15641-00-00

—
Out of stock

3

CLIP 315156870000

90468-26048-00

1
Out of stock

4

WASHER, PLATE(47X)

90201-200J7-00

1
Out of stock

5

SPRING, TORSION(37F)

90508-26667-00

1
Out of stock

6

GUIDE, SPRING

5HP-15664-00-00

1
Out of stock

7

GEAR, KICK IDLE

10V-15651-00-00

—
Out of stock

8

WASHER, PLATE (4L0)

90201-154E8-00

1

$6.17

In stock

9

CIRCLIP

93440-15012-00

1
Out of stock

10

KICK CRANK ASSEMBLY (3XP-15620-00)

3XP-15620-01-00

1
Out of stock

11

. BOSS, KICK CRANK

3XP-15621-00-00

1
Out of stock

12

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

13

BALL (12R)

93507-32031-00

1
Out of stock

14

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

15

CIRCLIP (137)

93430-08007-00

1

$6.17

In stock

16

NUT(1EE)

90179-12659-00

—

$5.37

In stock

17

OIL SEAL,SD-TYPE

93102-20309-00

—

$8.77

In stock
