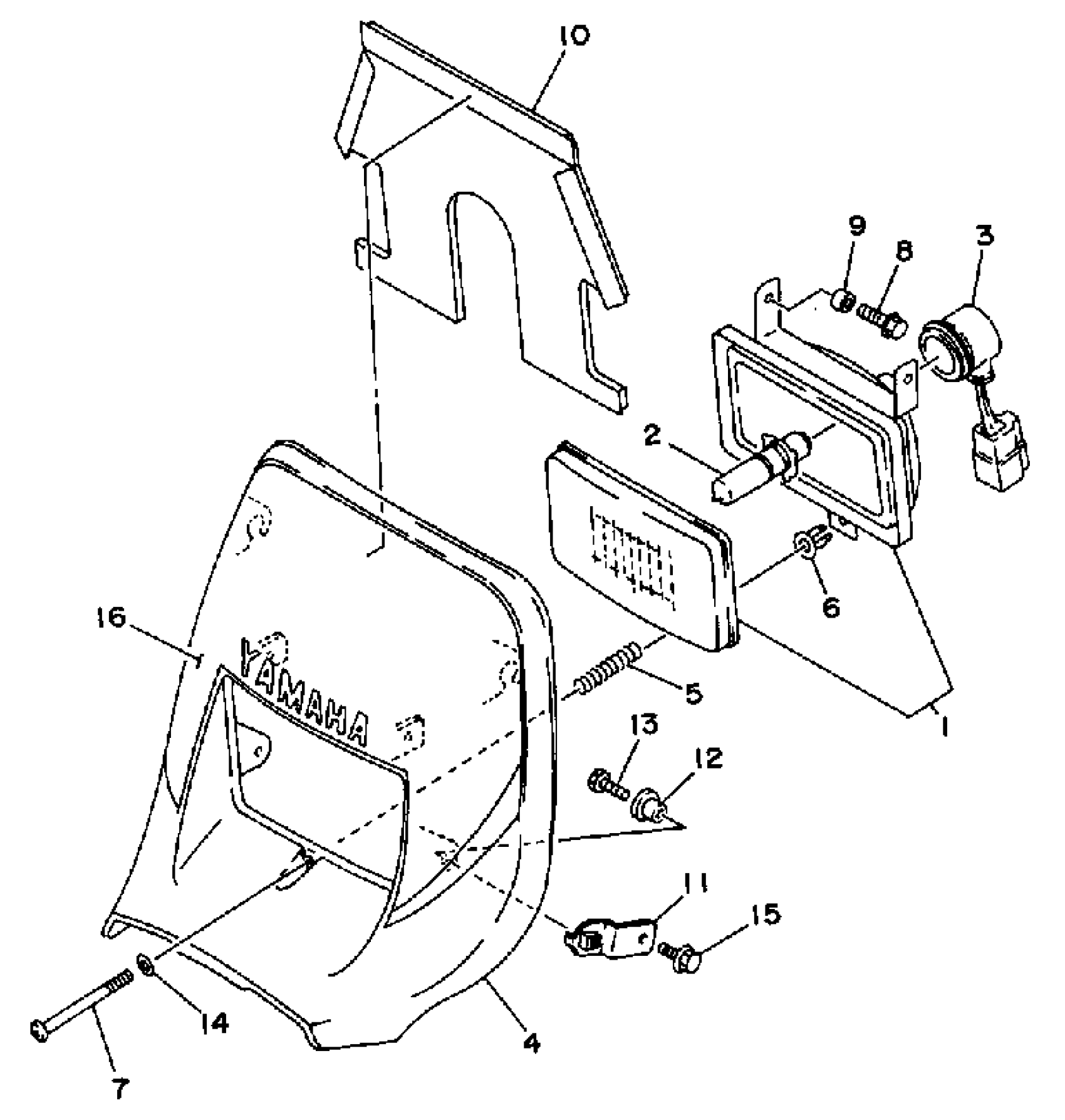

Find the part on the Headlight diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha WR200R (WR200RD) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LENS ASSEMBLY

3XP-84320-00-00

1
Out of stock

2

BULB, HEADLIGHT

3FW-84314-00-00

1
Out of stock

3

SOCKET CORD ASSY 1

3FW-84340-01-00

1
Out of stock

4

BODY, HEADLIGHT

3XP-84311-00-00

—
Out of stock

5

SPRING, SCREW

55U-84332-00-00

1
Out of stock

6

NUT, ADJUSTING

50W-84334-00-00

1
Out of stock

7

SCREW, PAN HEAD

98580-04540-00

1
Out of stock

8

BOLT, SPECIAL

55U-84337-00-00

—
Out of stock

9

SPACER

55U-84328-00-00

1
Out of stock

10

COVER, SOCKET

3XP-84196-00-00

1
Out of stock

11

STAY, HEADLIGHT 1

3XP-84118-00-00

1
Out of stock

12

COLLAR, BODY FITING

3XP-84145-00-00

1
Out of stock

13

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

14

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

15

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

16

EMBLEM, HEADLIGHT

3XP-84141-11-00

1
Out of stock
