1992 Yamaha WR200R (WR200RD) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

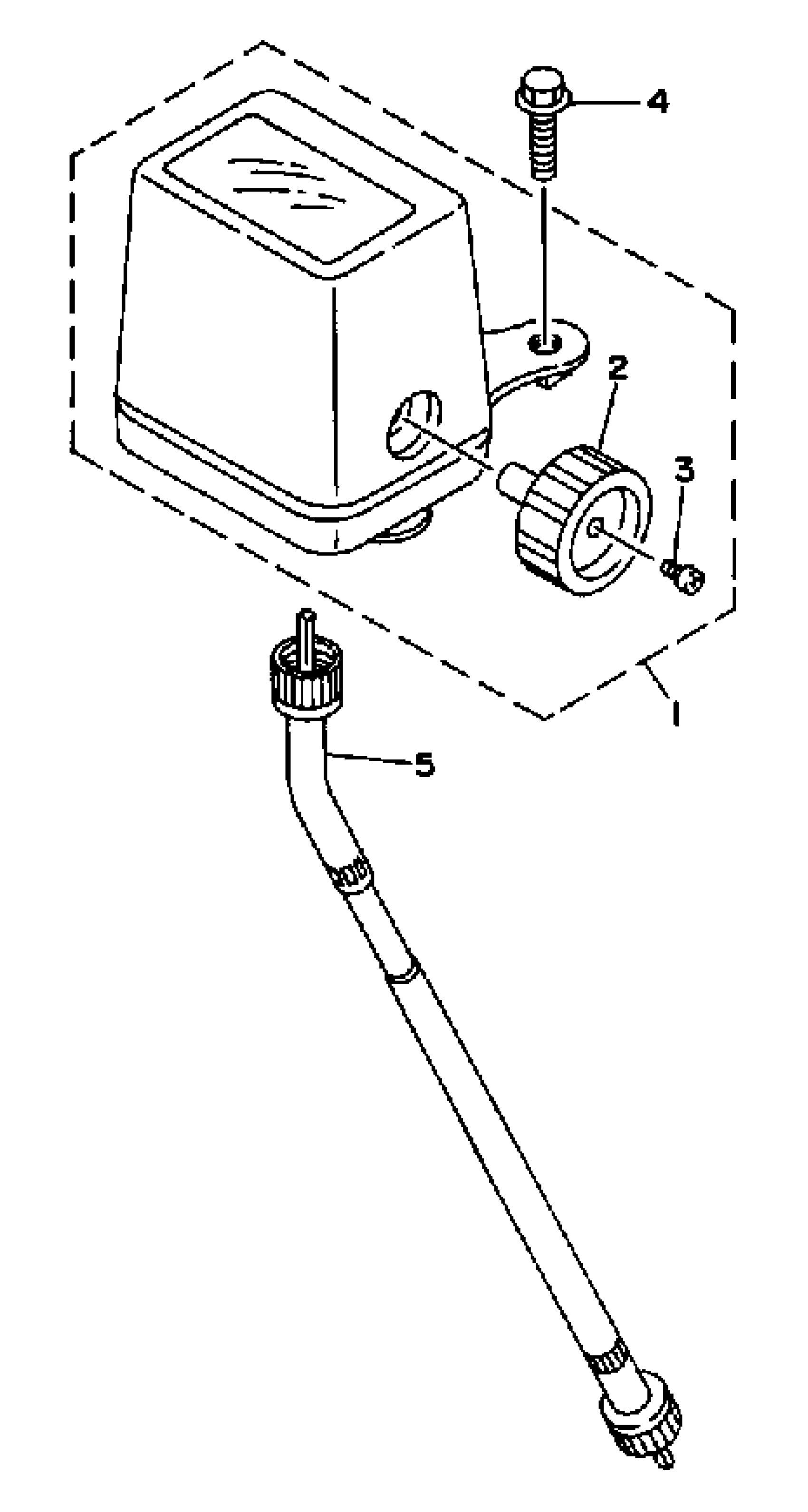

1992 Yamaha WR200R (WR200RD) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

4BF-83500-00-00

1
Out of stock

2

KNOB, TRIP METER

3R8-83578-00-00

1
Out of stock

3

SCREW, PAN HEAD (11H)

90157-02031-00

1

$7.05

In stock

4

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

5

SPEEDOMETER CABLE ASSY

3XP-83550-01-00

—
Out of stock
