1997 Yamaha Wave Blaster II (WB760V) Steering 2 Diagram

← All diagrams

Find the part on the Steering 2 diagram for your 1997 Yamaha Wave Blaster II (WB760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

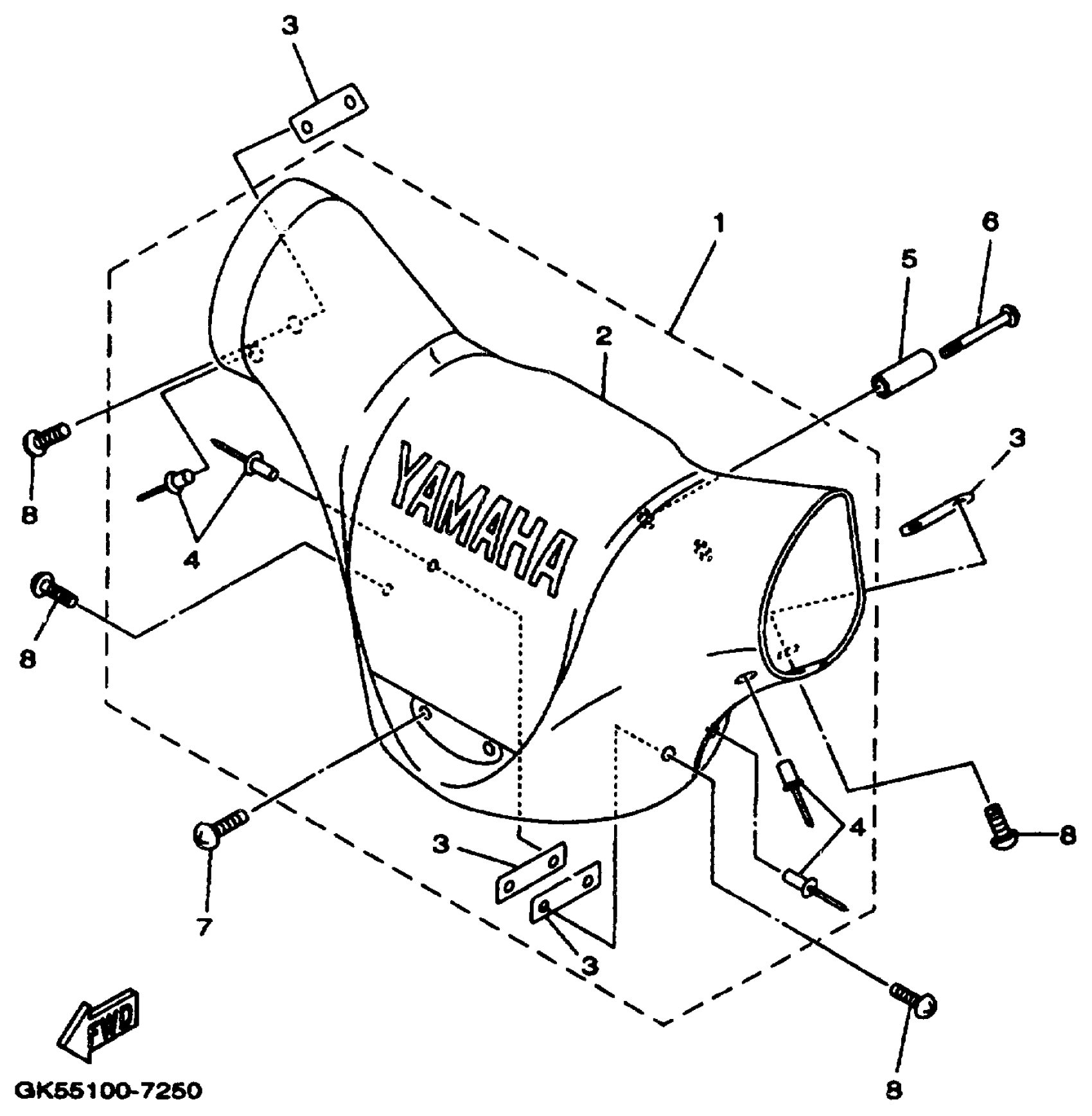

1997 Yamaha Wave Blaster II (WB760V) Steering 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING PAD COMP

GK5-6142A-00-00

1
Out of stock

2

STEERING PAD COMP

GK5-6142A-00-00

1
Out of stock

3

. PLATE

GA7-6144D-00-00

1
Out of stock

4

RIVET, BLIND

90267-48934-00

1
Out of stock

5

COLLAR

90387-06921-00

1
Out of stock

6

SCREW

90149-05938-00

1

$5.54

In stock

7

SCREW,TRASS HEAD (FJ0)

90149-05959-00

1

$5.62

In stock

8

SCREW

90149-04904-00

1
Out of stock
← Steering 1 Electrical 1 →
