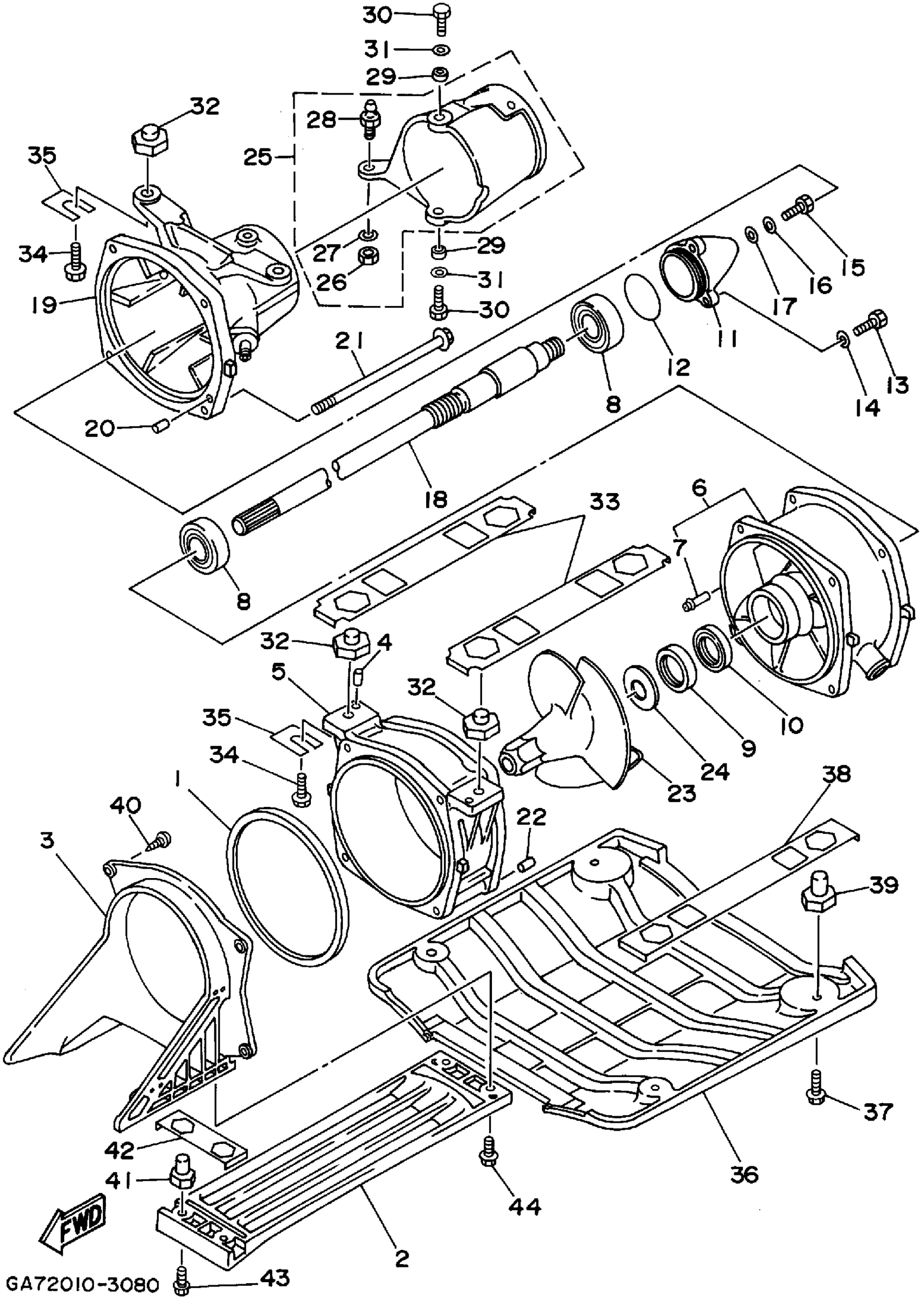

Yamaha WB700T (WAVE BLASTER) 1995 JET UNIT 1 Diagram

#

Description
Price

1

. PACKING

6R7-51117-01-00

$39.38

2

SCREEN, INTAKE

6R7-51333-00-00

$95.44

3

DUCT, INTAKE

62E-51311-00-00

Unavailable

4

PIN, DOWEL(61L)

93606-09M19-00

$2.62

5

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

6

DUCT, IMPELLER

62T-51315-01-00

Unavailable

7

. NIPPLE

6K8-51129-00-00

$9.62

8

BEARING (6K8)

93306-205U1-00

$19.73

9

OIL SEAL(6R7)

93102-25M34-00

$13.70

10

OIL SEAL(6R7)

93101-25M50-00

$20.80

11

CAP

62T-51326-00-00

$71.20

12

. O-RING

93210-46M16-00

$7.15

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

14

WASHER, PLAIN (646)

92990-06600-00

$1.84

15

BOLT(GH1)

97080-06012-00

$2.56

16

WASHER, PLAIN (646)

92990-06600-00

$1.84

17

. GASKET

90430-06M03-00

$2.80

18

SHAFT, DRIVE

62E-45511-00-00

Unavailable

19

NOZZLE

61X-51318-01-94

Unavailable

20

PIN, DOWEL (614)

93606-12019-00

Unavailable

21

BOLT, WITH WASHER

90119-06M70-00

$7.40

22

PIN, DOWEL (614)

93606-12019-00

Unavailable

23

IMPELLER

62E-51321-A0-00

Unavailable

24

SPACER

62T-51348-00-00

$52.82

25

NOZZLE DEFLECOR

61L-51313-00-00

$53.14

26

NUT(650)

95380-06700-00

Unavailable

27

WASHER, PLATE

90201-06M02-00

$2.20

28

. BOLT, JOINT

6R7-42316-00-00

$34.49

29

COLLAR(6R7)

90387-08M06-00

Unavailable

30

BOLT, HEXAGON

97095-08018-00

$3.08

31

.. WASHER, PLATE

92990-08600-00

$2.17

32

NUT

90179-10954-00

Unavailable

33

HOLDER PLATE 1

GA7-6881N-00-00

Unavailable

34

BOLT

90119-10906-00

Unavailable

35

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

35

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

35

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

35

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

36

PLATE, 2

GA7-6273B-00-00

Unavailable

37

BOLT, WITH WASHER(GA7)

90119-08932-00

Unavailable

38

HOLDER PLATE 2

GA7-6881P-00-00

Unavailable

39

NUT

90179-08953-00

Unavailable

40

SCREW, TAPPING

97780-60520-00

$4.09

41

NUT

90179-06952-00

Unavailable

42

HOLDER PLATE 3

GA7-6881R-00-00

Unavailable

43

BOLT, WITH WASHER

90119-06896-00

$5.03

44

BOLT, WITH WASHER

90119-06908-00

$2.57
