1995 Yamaha Wave Blaster (WB700T) Fuel Diagram

← All diagrams

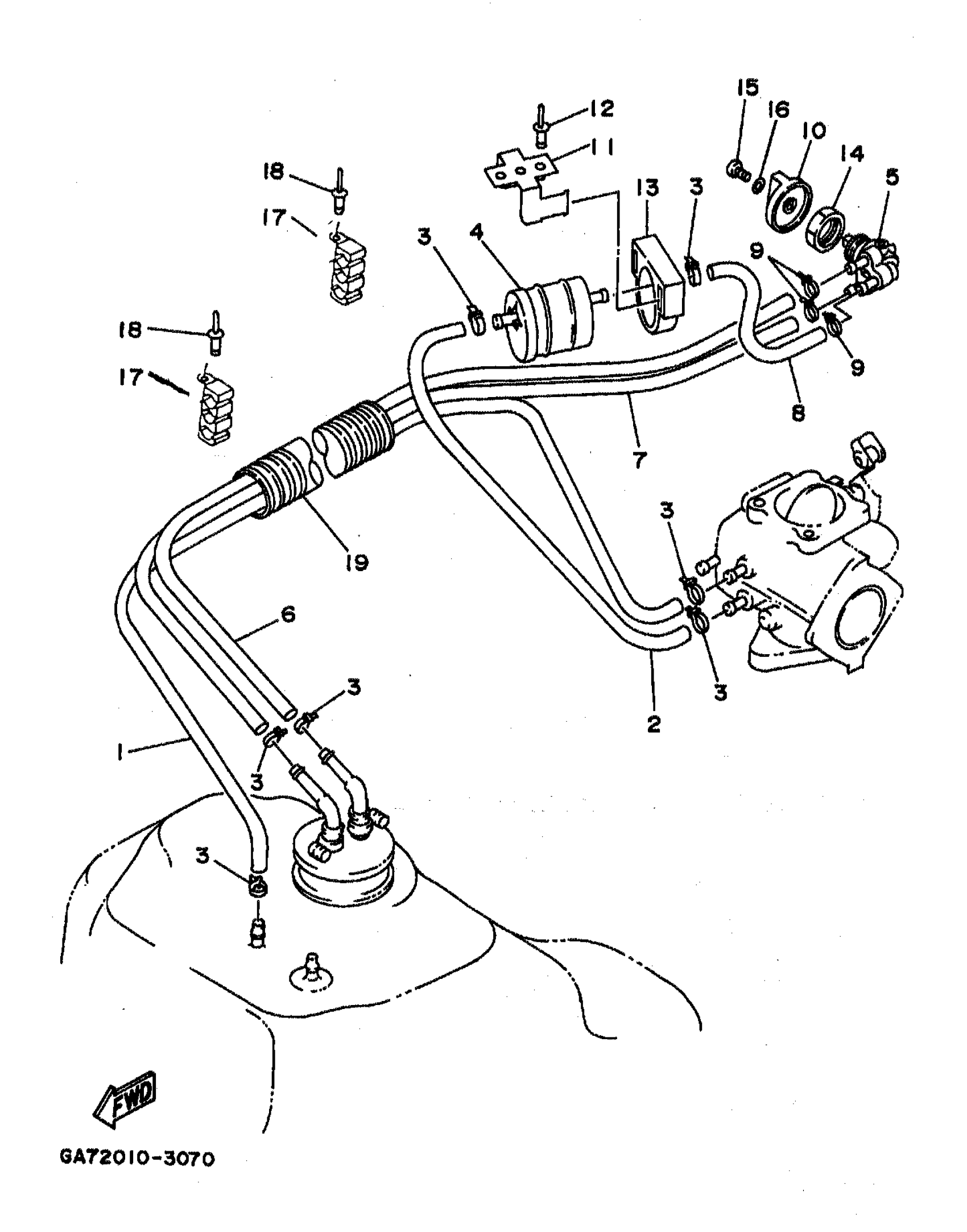

Find the part on the Fuel diagram for your 1995 Yamaha Wave Blaster (WB700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Blaster (WB700T) Fuel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE (L1700)

90445-10M87-00

1
Out of stock

2

HOSE (L590)

90445-10020-00

1
Out of stock

3

CLAMP

90465-10098-00

1

$2.24

In stock

4

FILTER ASSY

6K8-24560-21-00

1

$25.83

In stock

5

FUEL COCK ASSY 1

6K8-24500-03-00

1
Out of stock

6

HOSE (L1700)

90445-10M87-00

1
Out of stock

7

HOSE (L1700)

90445-10M87-00

1
Out of stock

8

HOSE (L400)

90445-10M43-00

1

$5.88

In stock

9

CLAMP

90465-10098-00

1

$2.24

In stock

10

LEVER, COCK

6K8-24524-10-00

1

$10.68

In stock

11

BRACKET, FUEL FILTER

FN8-67816-00-00

1

$16.99

In stock

12

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

13

HOLDER

EU0-67817-00-00

1

$17.99

In stock

14

NUT

90170-22M11-00

1
Out of stock

15

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

16

WASHER, PLAIN (646)

92990-04600-00

—

$0.92

In stock

17

HOLDER,PIPE 2

EW2-67812-00-00

1
Out of stock

18

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

19

TUBE

GA7-6773D-00-00

1
Out of stock
