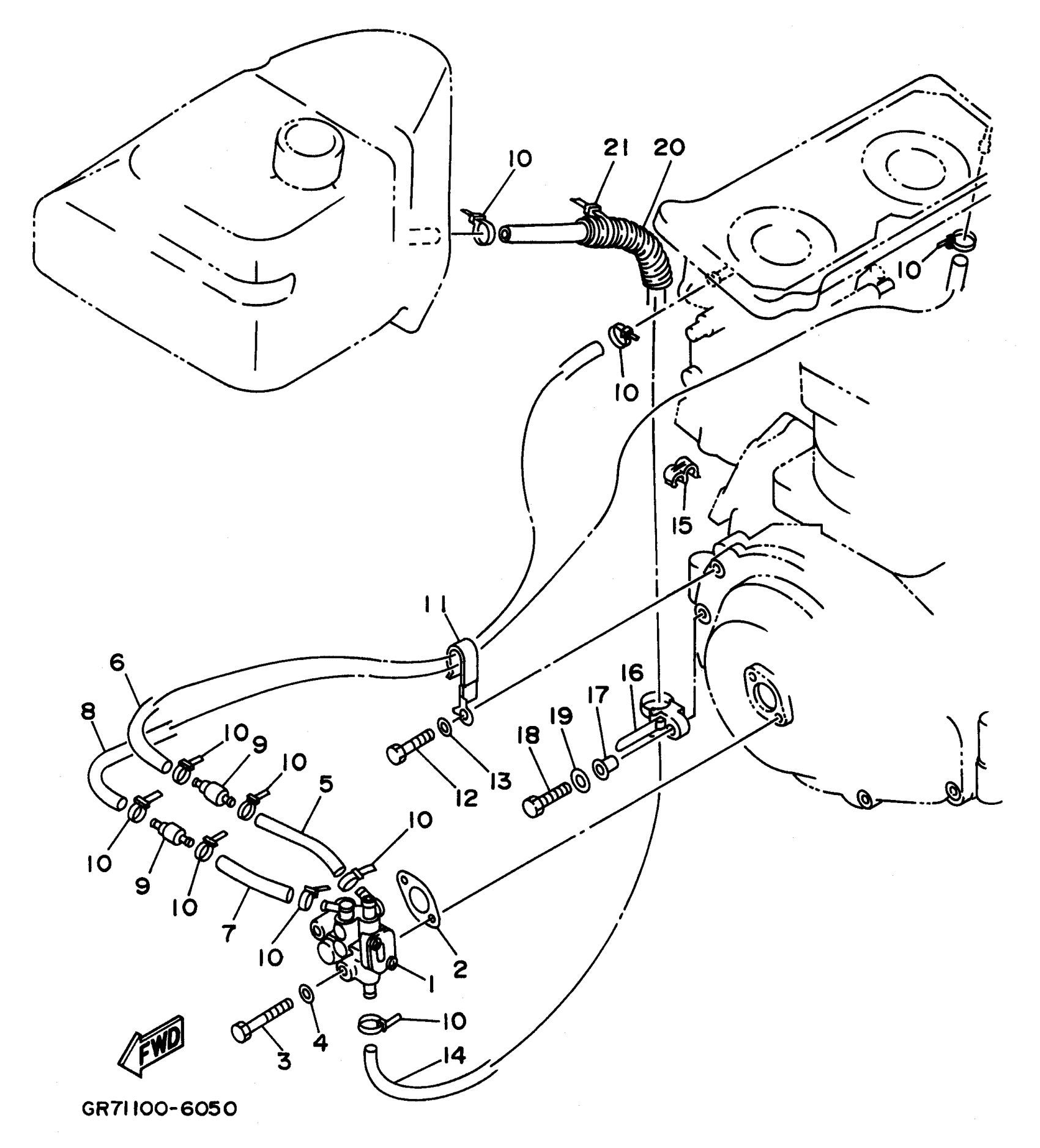

Yamaha WB700AU (WAVE BLASTER) 1996 OIL PUMP Diagram

#

Description
Price

1

OIL INJECTION PUMP ASSY.

61X-13200-21-00

Unavailable

2

. GASKET, PUMP CASE

6R8-13116-A0-00

$2.95

3

BOLT(J52)

97080-06035-00

Unavailable

4

WASHER, PLAIN (646)

92990-06600-00

$1.84

5

HOSE

90445-07M14-00

Unavailable

6

HOSE(62T)

90446-07M48-00

Unavailable

7

HOSE (L200)

90445-07M19-00

$6.39

8

HOSE(62T)

90446-07M48-00

Unavailable

9

VALVE, CHECK

6R3-13183-10-00

$39.61

10

CLAMP

90465-10098-00

$1.68

11

CLAMP

90465-08M37-00

Unavailable

12

BOLT

90101-06M27-00

$3.14

13

WASHER, PLAIN (646)

92990-06600-00

$1.84

14

HOSE (L700)

90445-117F2-00

$22.86

15

CLAMP(6R8)

90464-10M38-00

$7.38

16

CLAMP

90465-12M53-00

$5.00

17

COLLAR

90387-06M05-00

$6.45

18

BOLT(J52)

97080-06035-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$1.84

20

HOSE(6M6)

90446-17M11-00

Unavailable

21

CLAMP

90465-10098-00

$1.68
