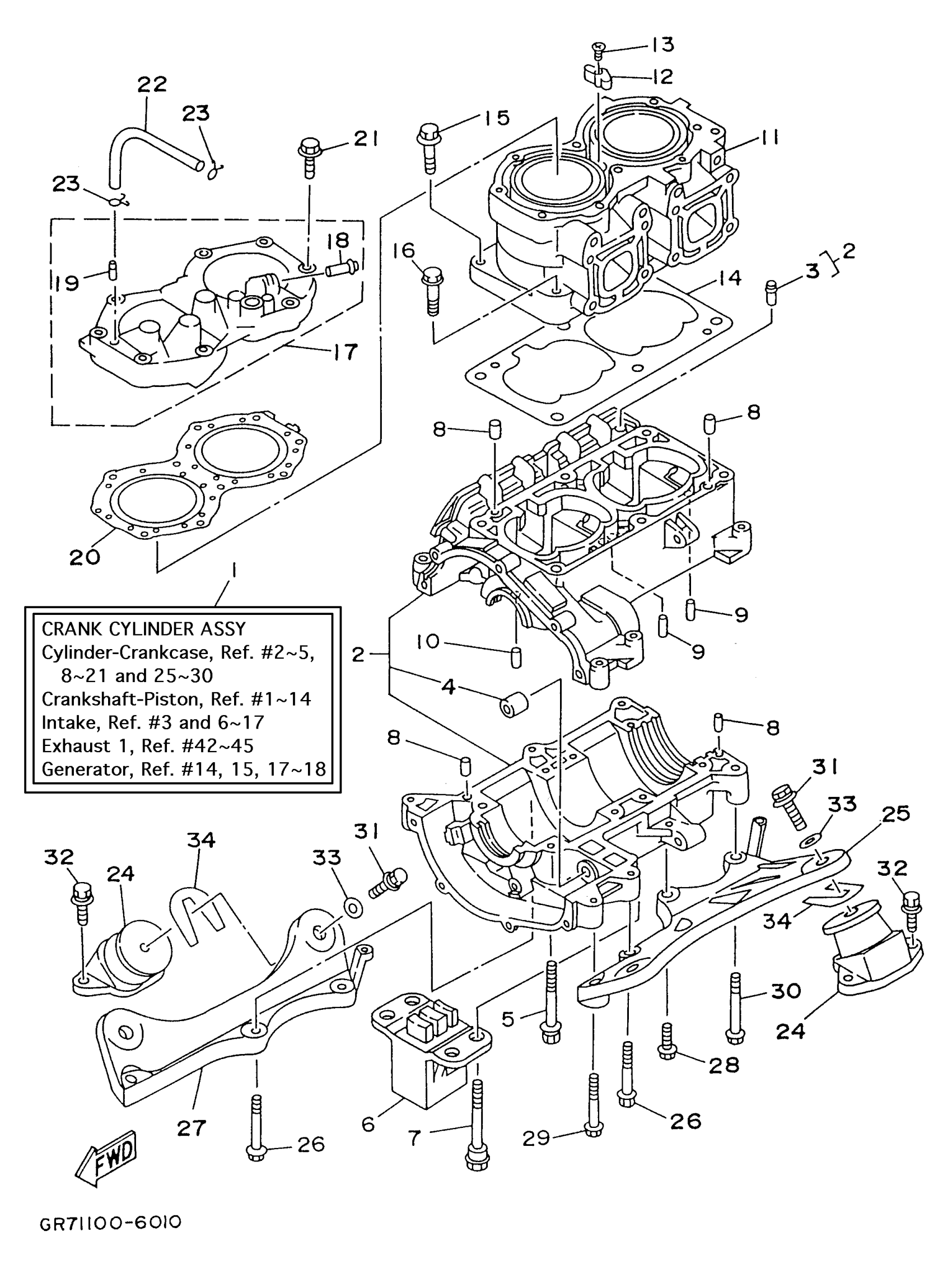

Yamaha WB700AU (WAVE BLASTER) 1996 CYLINDER - CRANKCASE Diagram

#

Description
Price

1

CRANK CYLINDER ASSY

64U-W0090-00-8S

Unavailable

2

CRANKCASE ASSY

62T-15100-00-00

$780.87

3

NIPPLE

62T-14251-10-00

$4.27

4

. BUSH, SOLID

90380-12M29-00

Unavailable

5

BOLT, WITH WASHER

90119-08M55-00

$3.03

6

STOPPER, UPPER MOUNT

62E-44532-00-00

Unavailable

7

BOLT

90109-08M56-00

$3.84

8

PIN, DOWEL (614)

93606-12019-00

$3.50

9

PIN (2H7)

93603-10049-00

Unavailable

10

PIN, DOWEL (8H1)

93604-07141-00

$1.29

11

CYLINDER 1

61X-11311-01-8S

$755.87

12

ANODE

6E5-11325-00-00

$4.52

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

GASKET, CYLINDER

6M6-11351-A2-00

$15.81

15

BOLT, WITH WASHER

90119-10M56-00

$8.97

16

BOLT (6F5)

90119-10M07-00

Unavailable

17

HEAD, CYLINDER 1

64U-11111-00-8S

$344.10

18

. NIPPLE

6K8-51129-00-00

$9.87

19

. PIPE, JOINT

6R7-14485-00-00

$11.75

20

GASKET, CYLINDER HEAD 1

62T-11181-01-00

$50.86

21

BOLT, WITH WASHER

90119-08019-00

$4.17

22

HOSE (L200)

90445-07M19-00

Unavailable

23

CLIP

90467-06016-00

$2.66

24

MOUNT RUBBER

62E-44517-A1-8P

$70.29

25

BRACKET, FRONT UPPER 1

6R7-21415-01-00

$127.93

26

BOLT, WITH WASHER

90119-10M23-00

$8.97

27

BRACKET, REAR UPPER 1

6R7-21425-01-00

$135.28

28

BOLT, WITH WASHER

90119-10M00-00

$8.56

29

BOLT, WITH WASHER

90119-10M01-00

$8.81

30

BOLT, WITH WASHER

90119-10M03-00

$8.81

31

BOLT, WITH WASHER

90119-08904-00

$2.98

32

BOLT, WITH WASHER

90119-08038-00

$4.69

33

PLATE

EU0-67324-00-00

$10.99

34

SHIM (T=0.3)

EU0-67354-B0-00

$5.12

34

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

34

SHIM (T=0.5)

EU0-67354-C0-00

$4.27

34

SHIM (T=1.0)

EU0-67354-D0-00

$3.84

34

SHIM (T=2.0)

EU0-67354-E0-00

$3.84
