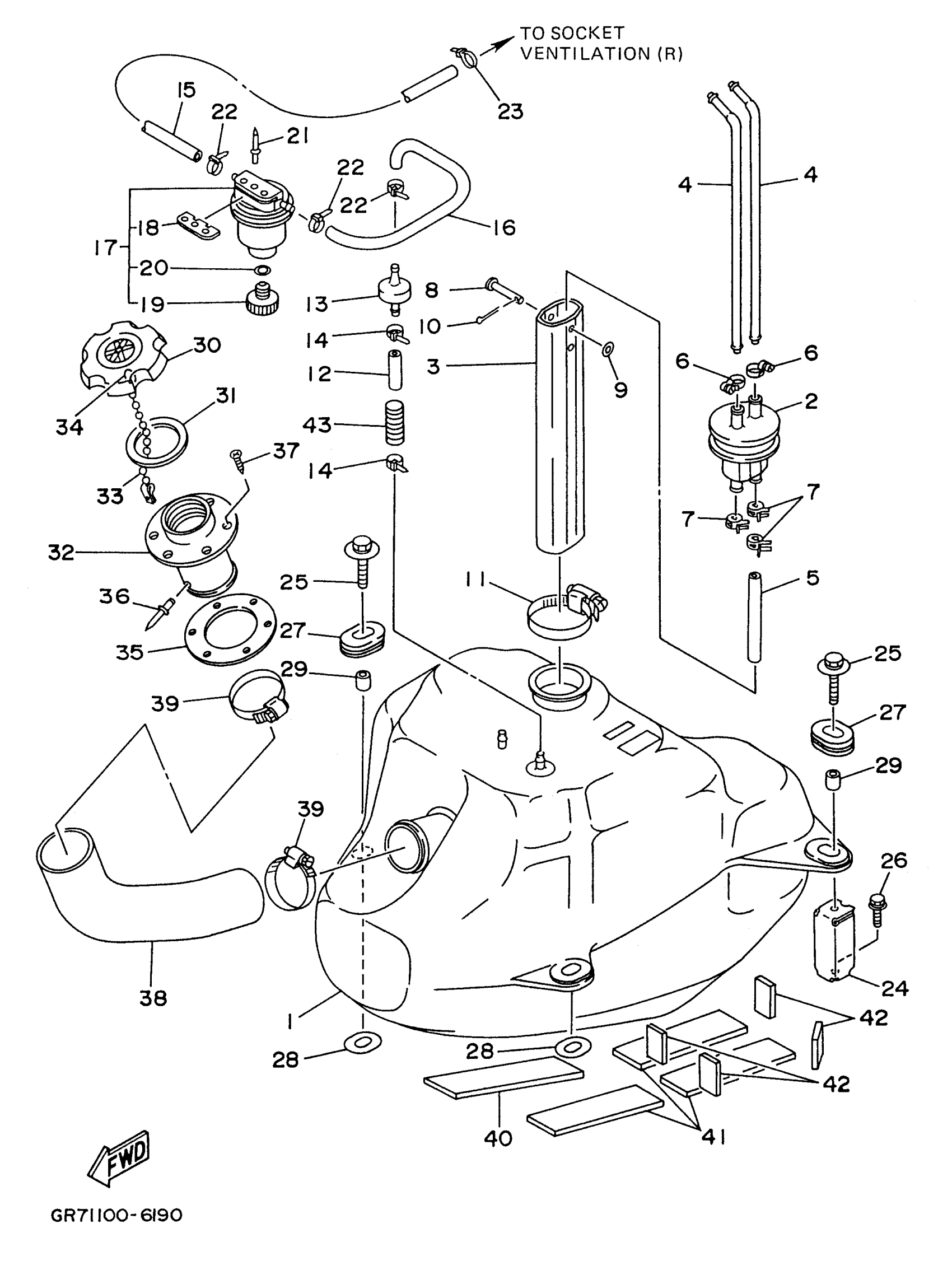

Yamaha WB700AU (WAVE BLASTER) 1996 FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL

GA7-67711-01-00

Unavailable

2

PIPE, JOINT

FJ0-67713-01-00

Unavailable

3

PIPE, FILLER

EW2-67716-02-00

$24.98

4

PIPE, SUCTION 3

FN8-67714-02-00

Unavailable

5

HOSE (L198)

90445-11293-00

$6.69

6

BAND, HOSE 11

90601-11062-00

Unavailable

7

CLIP (7K7)

90467-11044-00

$4.89

8

PIN (FJ0)

91790-05040-00

$2.53

9

WASHER, PLAIN (646)

92990-05600-00

Unavailable

10

PIN. COTTER

91490-16010-00

$2.36

11

BAND, HOSE 62

90601-162U5-00

$6.17

12

HOSE

90699-50100-00

$26.99

13

CHECK VALVE

EU0-67767-31-00

$20.93

14

CLAMP

90465-10098-00

$1.68

15

HOSE, AIRVENT 3

GA7-6785H-00-00

Unavailable

16

HOSE, AIR VENT 5

FJ0-67856-40-00

$16.99

17

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

18

. PLATE, FILTER

EW2-62142-00-00

$44.99

19

. PLUG, DRAIN

70R-24543-00-00

$9.08

20

. O-RING

70R-24489-00-00

$5.00

21

RIVET, BLIND

90267-48940-00

$10.99

22

CLAMP

90465-10098-00

$1.68

23

BAND

90601-200U1-00

$2.77

24

FIX, FUEL TANK

FN8-67777-31-00

Unavailable

25

BOLT, WITH WASHER

90119-08916-00

Unavailable

26

BOLT, WITH WASHER

90119-08903-00

Unavailable

27

GROMMET

90480-19906-00

Unavailable

28

PLATE, GROMMET

GA7-6774B-00-00

Unavailable

29

COLLAR

90387-08906-00

Unavailable

30

CAP, FUEL FILLER (YAMAHA BLACK)

FN8-67831-01-00

$50.42

31

PACKING 1

EU0-67832-00-00

$7.40

32

SOCKET

FN8-67833-00-00

Unavailable

33

. CHAIN BALL

EU0-67835-00-00

$5.18

34

COUPLING

EU0-67839-00-00

$6.36

35

PACKING, FUEL FILLER

EU0-67834-00-00

$25.49

36

. RIVET, BLIND

90267-40935-00

$1.28

37

SCREW, FLAT HEAD TAPPING

EU0-U7869-00-00

Unavailable

38

HOSE

GA7-67844-00-00

Unavailable

39

BAND, HOSE 55

90601-155U4-00

$5.87

40

MAT 1

GA7-6759B-00-00

Unavailable

41

MAT 2

GA7-6759C-00-00

Unavailable

42

MAT 3

GA7-6759D-00-00

Unavailable

43

TUBE

GJ1-6773D-00-00

Unavailable
