1996 Yamaha Wave Blaster (WB700AU) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1996 Yamaha Wave Blaster (WB700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

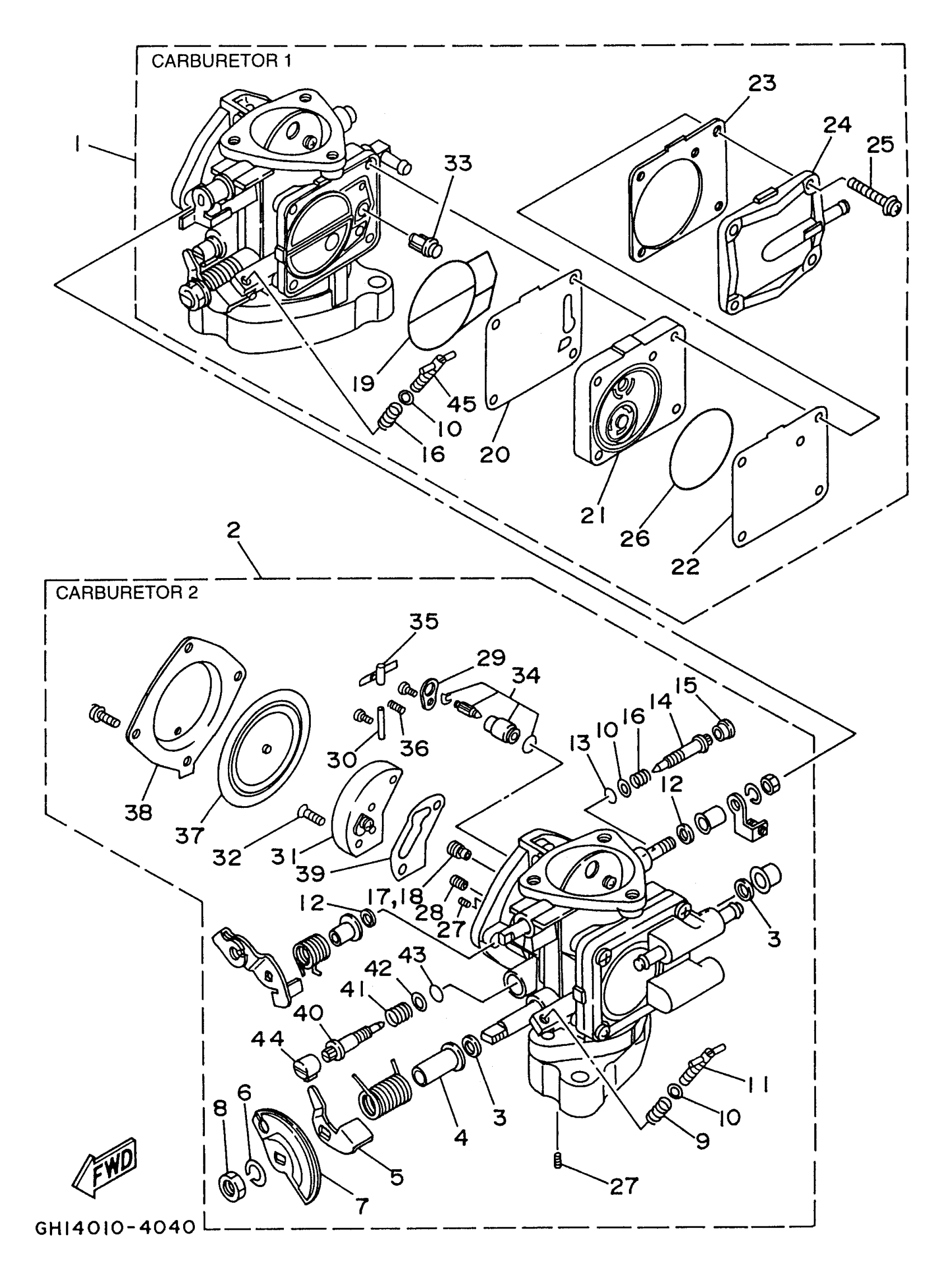

1996 Yamaha Wave Blaster (WB700AU) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

64U-14301-04-00

1
Out of stock

2

CARBURETOR ASSY 2

64U-14302-03-00

1
Out of stock

3

. WASHER

6R7-14596-01-00

1
Out of stock

4

. COLLAR

6K8-14534-10-00

1
Out of stock

5

. BRACKET, THROTTLE 1

6K8-14926-10-00

1
Out of stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

7

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

1
Out of stock

8

. NUT

95380-08700-00

1
Out of stock

9

. SPRING, ADJUST SCREW

6K8-14531-00-00

1
Out of stock

10

WASHER,NEEDLE

812-14235-00-00

1
Out of stock

11

SCREW,ADJUST

6M6-14521-01-00

1
Out of stock

12

. WASHER

6K8-14597-11-00

1
Out of stock

13

. O-RING

6K8-14562-00-00

1
Out of stock

14

. PLATE, NEEDLE FITTING

63M-14946-00-00

1
Out of stock

15

. CAP, CARBURETOR

6K8-14471-10-00

1
Out of stock

16

. SPRING, ADJUST SCREW

6K8-14533-00-00

1
Out of stock

17

JET, MAIN (#130)

3G2-14231-26-A0

—
Out of stock

18

JET, MAIN (#130)

3G2-14231-26-A0

—
Out of stock

19

. O-RING

6K8-14564-00-00

1
Out of stock

20

. DIAPHRAGM

6K8-24411-20-00

1
Out of stock

21

BODY 2

6M6-24413-02-00

1
Out of stock

22

. VALVE, CHECK

6K8-24421-10-00

1
Out of stock

23

. GASKET, FUEL PUMP 1

6K8-24431-20-00

1
Out of stock

24

. COVER

6K8-24452-10-00

1
Out of stock

25

SCREW, WITH WASHER(61B)

97985-05330-00

1
Out of stock

26

. O-RING

6K8-14563-00-00

1
Out of stock

27

. SCREW

6K8-14521-10-00

1
Out of stock

28

JET, MAIN (# 70)

830-14231-14-00

—
Out of stock

29

. PLATE

6K8-14527-11-00

1
Out of stock

30

. PIN, FLOAT

6K8-14579-00-00

1
Out of stock

31

. BODY 1

6R7-24412-01-00

1
Out of stock

32

SCREW, STOP

6K8-14523-12-00

1
Out of stock

33

. STRAINER

6R7-14569-00-00

1
Out of stock

34

NEEDLE

61X-14916-16-00

1
Out of stock

35

. ARM, FLOAT

6K8-14547-01-00

1
Out of stock

36

. SPRING

6R7-14253-00-00

1
Out of stock

37

. DIAPHRAGM, PUMP

6R7-14541-00-00

1
Out of stock

38

. BODY, PUMP 1

6R7-14542-00-00

1
Out of stock

39

. GASKET

6K8-14536-11-00

1
Out of stock

40

. SCREW, PILOT

63M-14923-00-00

1
Out of stock

41

. SPRING

6K8-14589-00-00

1
Out of stock

42

. WASHER

6K8-14537-00-00

1
Out of stock

43

O-RING

583-14561-00-00

—
Out of stock

44

. CAP, CARBURETOR

6K8-14481-10-00

1
Out of stock

45

. SCREW, ADJUST

6K8-14521-00-00

1
Out of stock
