2020 Kawasaki W800 Swingarm Diagram

← All diagrams

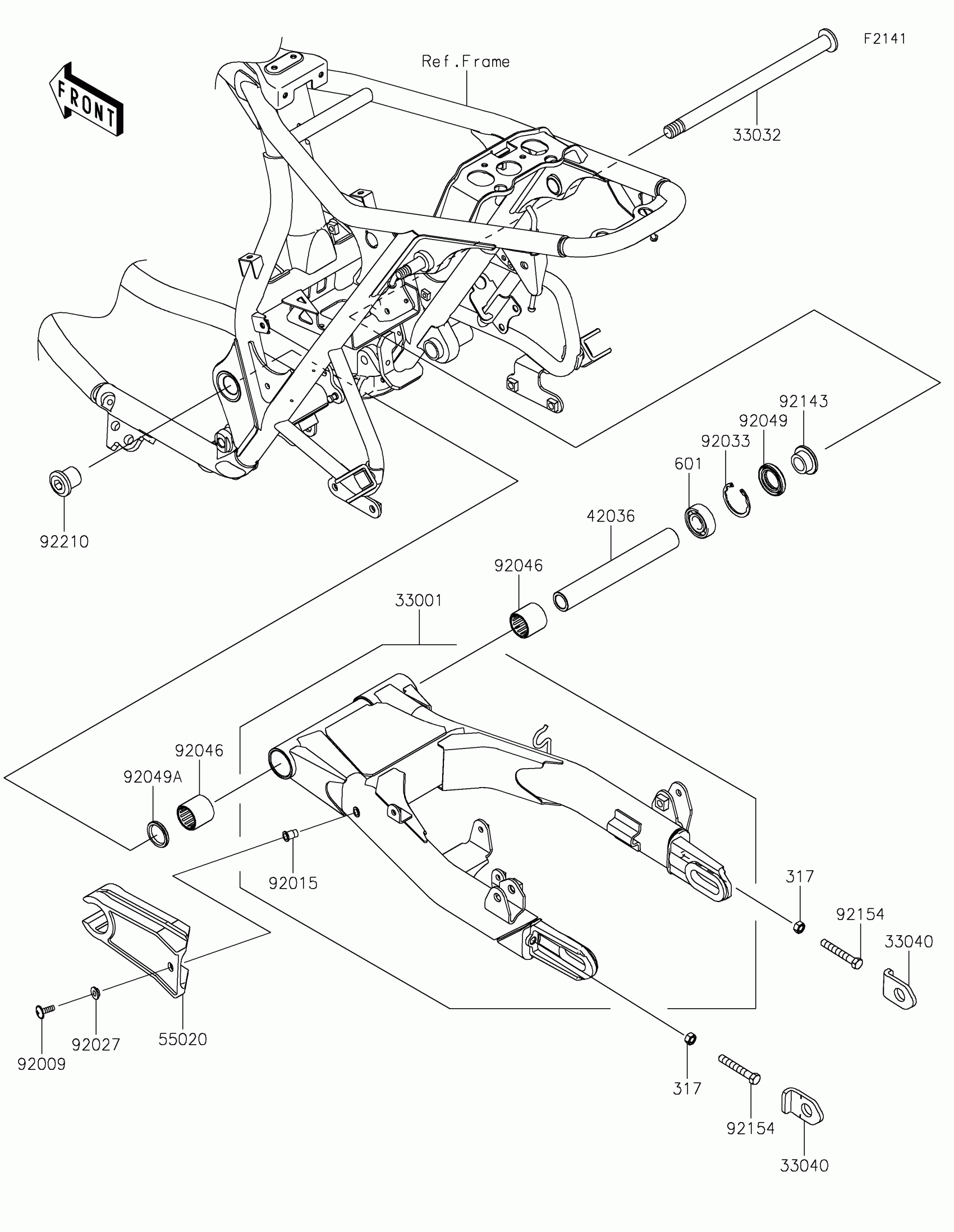

Find the part on the Swingarm diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki W800 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0707

1

$698.09

In stock

33032

SHAFT-SWING ARM

33032-1192

1

$66.99

In stock

33040

ADJUSTER-CHAIN

33040-0076

1

$16.68

In stock

42036

1

$59.72

In stock

55020

GUARD,CHAIN

55020-1686

1

$47.40

In stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92027

COLLAR,L=4.5

92027-1965

1

$5.74

In stock

92033

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

92046

1

$23.73

In stock

92049

SEAL-OIL

92049-1047

1
Out of stock

92049A

SEAL-OIL,MH25334

92049-1060

1
Out of stock

92143

COLLAR,RR AXLE,L=14

92143-1188

1

$17.66

In stock

92154

BOLT-SMALL,8X55

92154-1962

1

$4.51

In stock

92210

NUT,PIVOT,16MM

92210-1077

1
Out of stock

317

NUT-HEX-SMALL,8MM

317BA0800

1

$1.44

In stock

601

1

$11.12

In stock
