2020 Kawasaki W800 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

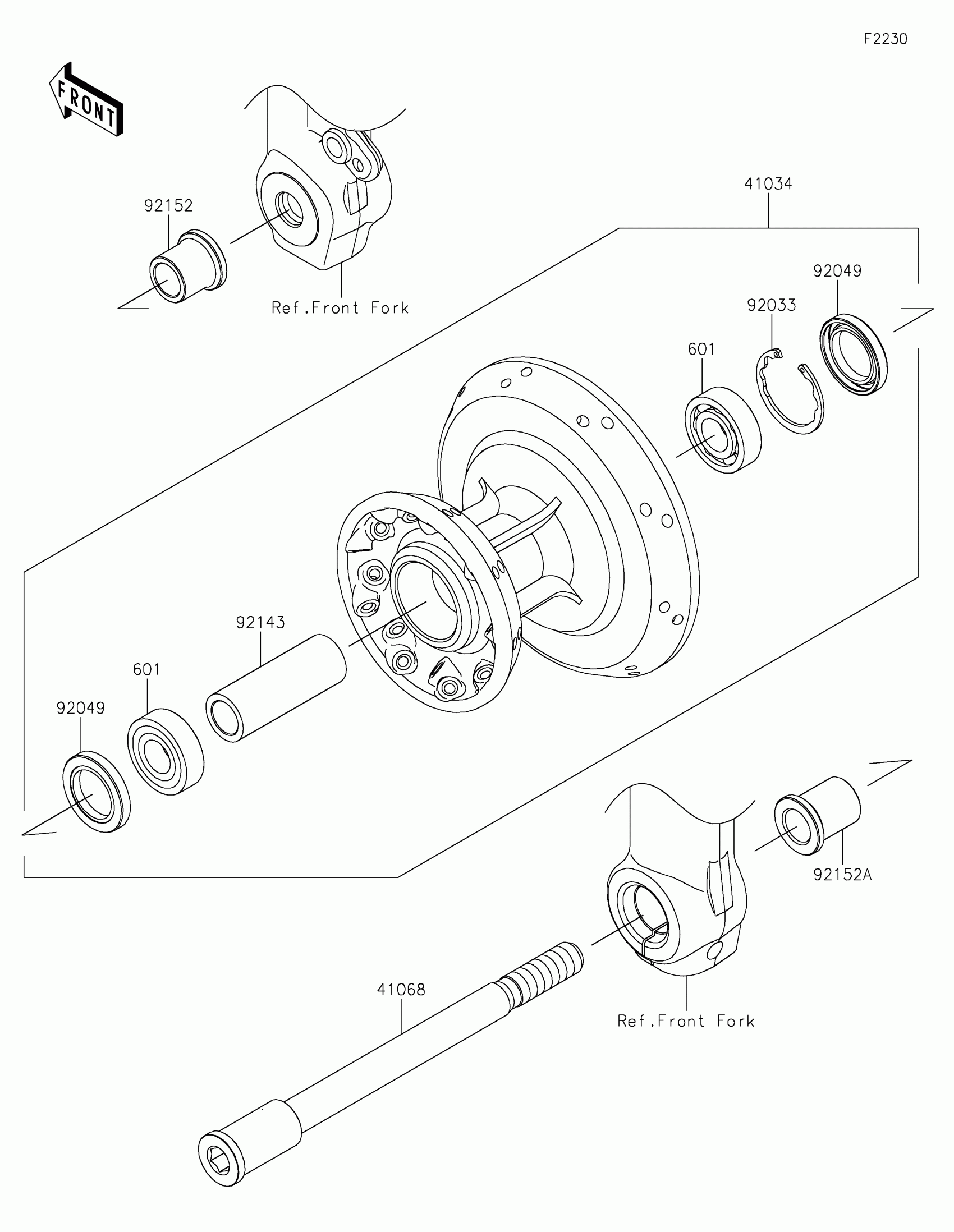

2020 Kawasaki W800 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR,P.SILVER

41034-0602-458

1

$483.52

In stock

41068

AXLE,FR

41068-0641

1

$74.75

In stock

92033

RING-SNAP,40MM

92033-1040

1

$4.67

In stock

92049

SEAL-OIL,AG1258AO

92049-1110

1
Out of stock

92143

COLLAR,17.2X25X69

92143-1208

1

$12.47

In stock

92152

1

$17.34

In stock

92152A

1

$15.69

In stock

601

1

$34.89

In stock
