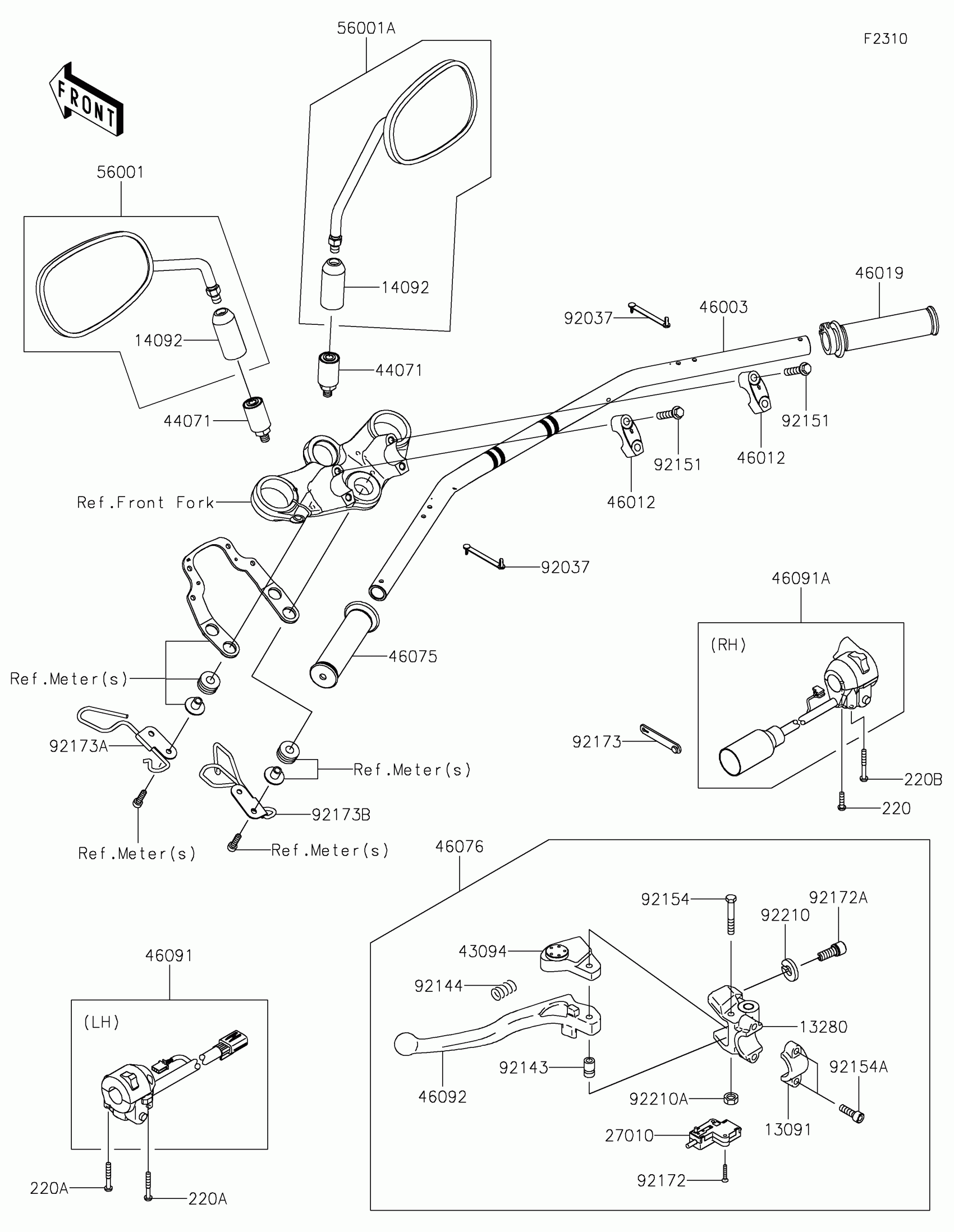

Kawasaki W800 Handlebar Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13280

HOLDER,CLUTCH LEVER

13280-0248

$52.39

14092

COVER

14092-1067

$8.80

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-1053

$36.81

44071

DAMPER-ASSY

44071-0877

$56.77

46003

HANDLE

46003-0778

$158.57

46012

HOLDER-HANDLE,UPP

46012-1267

$32.62

46019

GRIP-ASSY,THROTTLE

46019-1110

$39.26

46075

GRIP,LH

46075-1175

$30.72

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0159

$106.57

46091

HOUSING-ASSY-CONTROL,LH

46091-0458

$197.71

46091A

HOUSING-ASSY-CONTROL,RH

46091-0513

$204.89

46092

LEVER-GRIP,CLUTCH

46092-1162

$13.41

56001

MIRROR-ASSY,LH

56001-0253

$86.51

56001A

MIRROR-ASSY,RH

56001-0254

$86.51

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92151

BOLT,FLANGED,8X35

92151-1402

$1.76

92154

BOLT

92154-2318

$6.02

92154A

BOLT,SOCKET,6X20

92154-2644

$2.98

92172

SCREW,3X16

92172-0183

$1.57

92173

CLAMP

92173-1526

$3.56

92173A

CLAMP,HOUSING,LH

92173-2033

$16.98

92173B

CLAMP,HOUSING,RH

92173-2132

$14.32

92210

NUT,LOCK,6MM

92210-0006

$1.76

220

SCREW-PAN-CROS,5X20

220AB0520

$1.36

220A

SCREW-PAN-CROS,5X35

220AB0535

$1.49

220B

SCREW-PAN-CROS,5X40

220AB0540

$1.49

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.68
