2020 Kawasaki W800 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

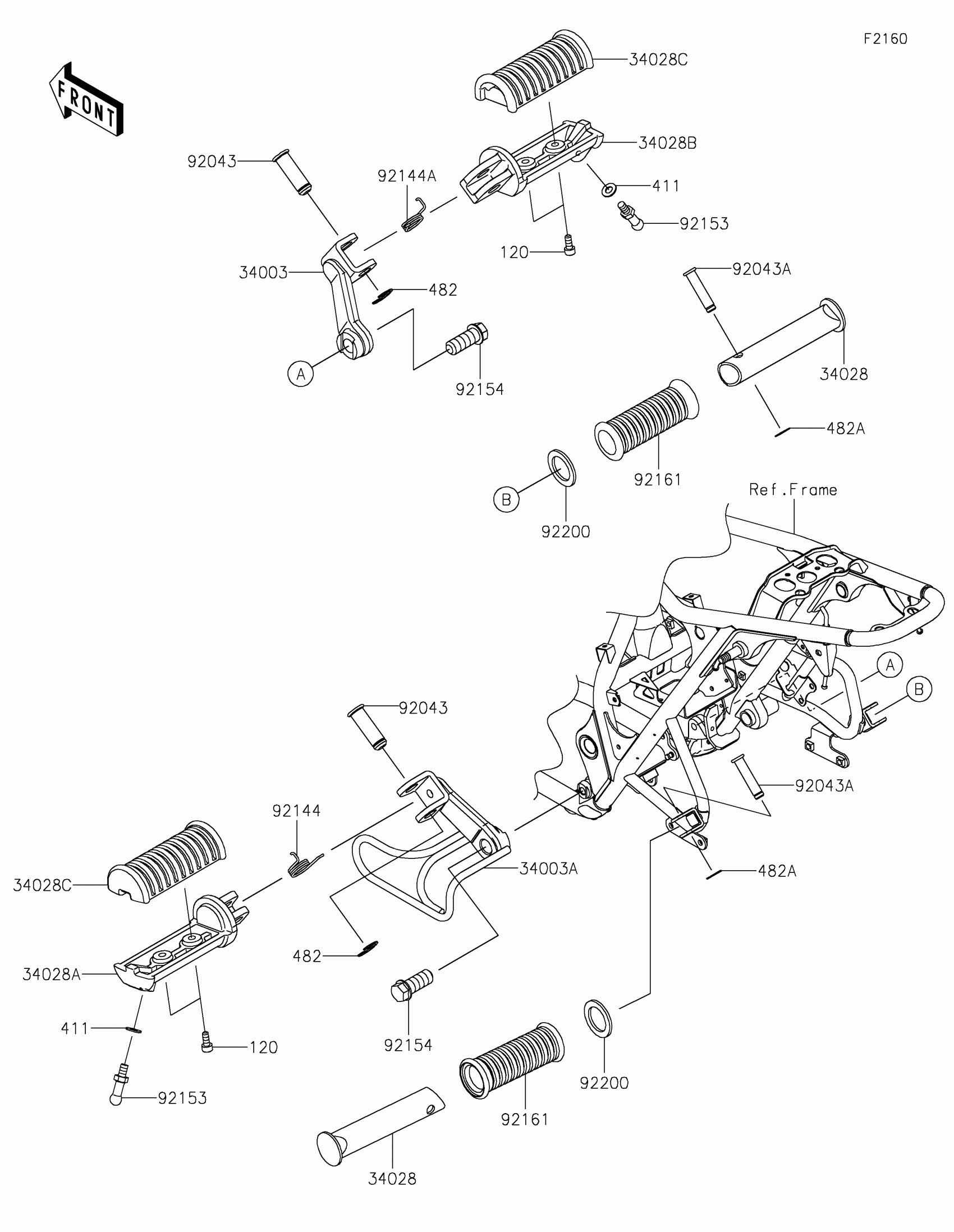

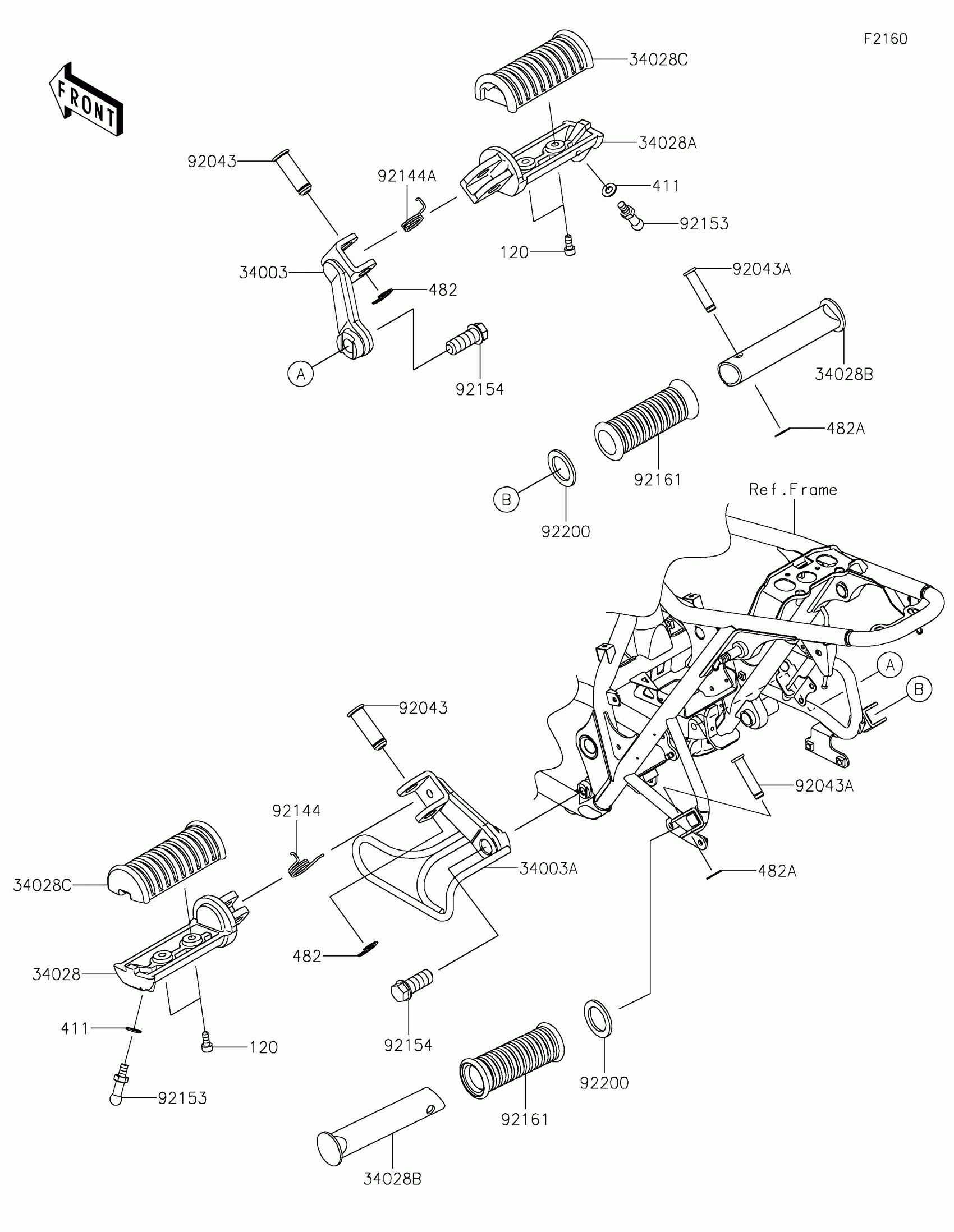

2020 Kawasaki W800 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,FR,RH

34003-0181

1

$89.08

In stock

34003A

HOLDER-STEP,FR,LH

34003-0184

1

$201.85

In stock

34028

STEP,RR

34028-0017

1

$21.92

In stock

34028A

STEP,FR,LH

34028-0316

1

$46.48

In stock

34028B

STEP,FR,RH

34028-0317

1

$46.48

In stock

34028C

STEP,RUBBER

34028-1372

1

$22.15

In stock

92043

PIN,12X37

92043-0150

1

$10.85

In stock

92043A

PIN,8X36.5

92043-1339

1

$7.71

In stock

92144

SPRING,STEP RETURN

92144-1567

1

$5.15

In stock

92144A

SPRING,STEP RETURN

92144-1568

1

$5.15

In stock

92153

BOLT,BANK SENSOR

92153-0303

1
Out of stock

92154

BOLT,FLANGED,12X30

92154-3889

1

$8.10

In stock

92161

DAMPER,STEP

92161-0232

1

$15.61

In stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

411

WASHER-PLAIN,6MM

411AB0600

1

$1.08

In stock

482

1

$0.98

In stock

482A

CIRCLIP-TYPE-E

482EA7000

1

$3.12

In stock
