2020 Kawasaki W800 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2020 Kawasaki W800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

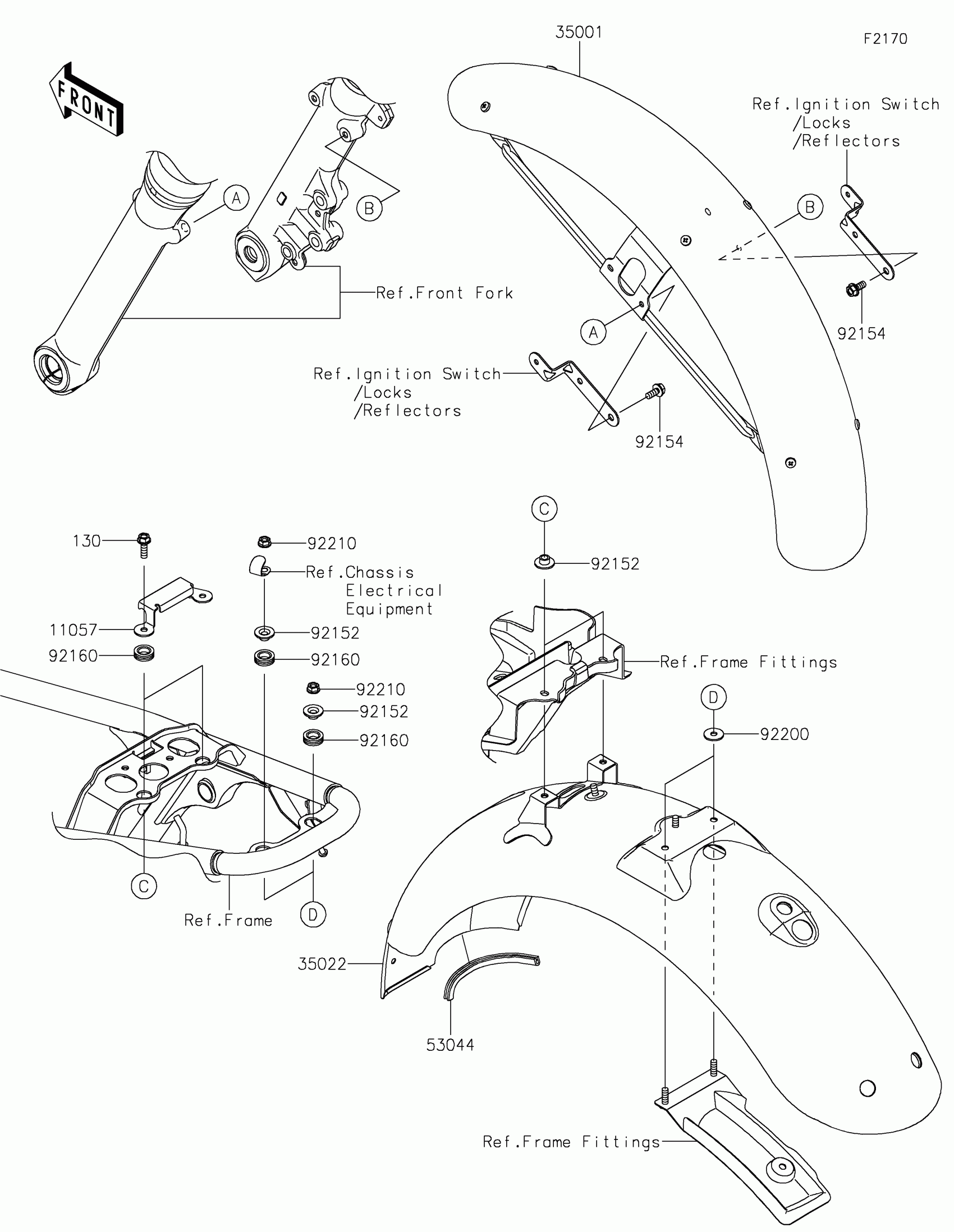

2020 Kawasaki W800 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-2333

1

$4.34

In stock

35001

FENDER-ASSY-FRONT

35001-0075

1

$288.15

In stock

35022

FENDER-COMP-REAR

35022-0113

1

$396.14

In stock

53044

TRIM

53044-0564

1

$7.15

In stock

92152

COLLAR,L=7.4

92152-2539

1

$3.83

In stock

92154

BOLT,FLANGED,6X14

92154-3968

1

$1.69

In stock

92160

DAMPER

92160-1278

1

$3.49

In stock

92200

WASHER,6.5X20X1.6

92200-2231

1

$2.37

In stock

92210

NUT,FLANGED,6MM

92210-1671

1

$3.56

In stock

130

BOLT-FLANGED,6X20

130BC0620

1

$1.36

In stock
