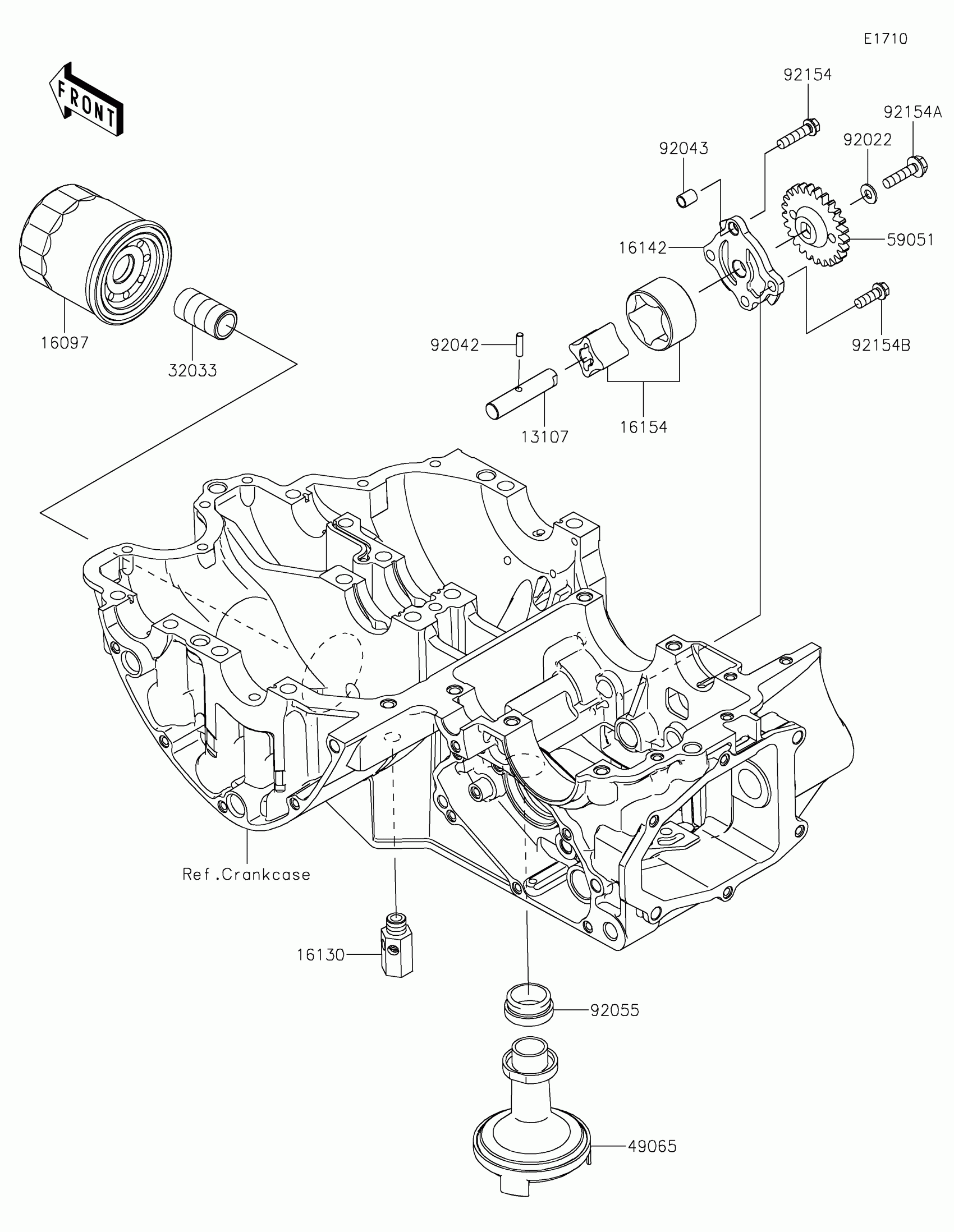

Kawasaki W800 CAFE Oil Pump/Oil Filter Diagram

Description

Price

13107

SHAFT,OIL PUMP

13107-1411

$23.63

16097

FILTER-ASSY-OIL

16097-0008

$11.00

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP,OIL

16142-1155

$30.20

16154

ROTOR-PUMP,40.56X22

16154-1115

$62.78

32033

PIPE,OIL FILTER

32033-1535

$9.85

49065

FILTER-OIL

49065-0046

$23.27

59051

GEAR-SPUR,OIL PUMP

59051-1377

$67.45

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92055

RING-O,OIL FILTER

92055-1354

$7.25

92154

BOLT,FLANGED,6X25

92154-0497

$1.66

92154A

BOLT,FLANGED,6X25

92154-0498

$1.66

92154B

BOLT,FLANGED,6X18

92154-0499

$1.44
