2025 Kawasaki W230 Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

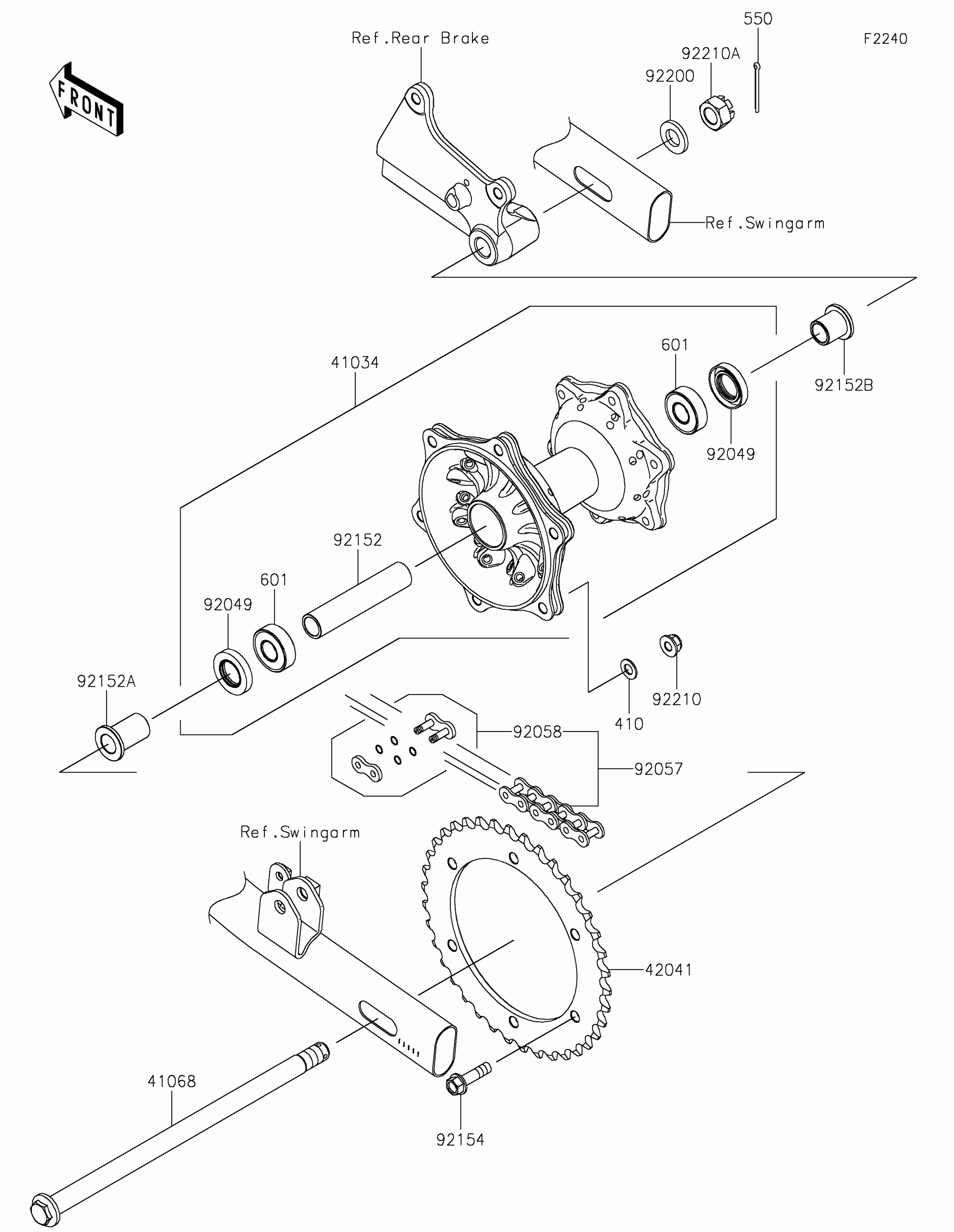

2025 Kawasaki W230 Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR,P.SILVER

41034-0627-458

1

$502.81

In stock

41068

AXLE,RR

41068-0688

1

$120.49

In stock

42041

SPROCKET-HUB,38T

42041-0197

1

$87.83

In stock

92049

SEAL-OIL

92049-0114

1
Out of stock

92057

1

$86.42

In stock

92058

JOINT-CHAIN,DRIVE

92058-0092

1

$17.02

In stock

92152

COLLAR,15.2X20X96.2

92152-2546

1

$23.44

In stock

92152A

1

$16.36

In stock

92152B

1

$14.98

In stock

92154

BOLT,FLANGED,8X30

92154-3918

1

$2.29

In stock

92200

WASHER,14.2X25X1.6

92200-2794

1

$1.05

In stock

92210

NUT,8MM

92210-0570

1
Out of stock

92210A

NUT,CASTLE,14MM

92210-2259

1

$9.10

In stock

410

1

$0.84

In stock

550

PIN-COTTER,3.0X35

550AA3035

1

$2.29

In stock

601

BEARING-BALL

601B6202UU

1

$20.38

In stock
