2025 Kawasaki W230 Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

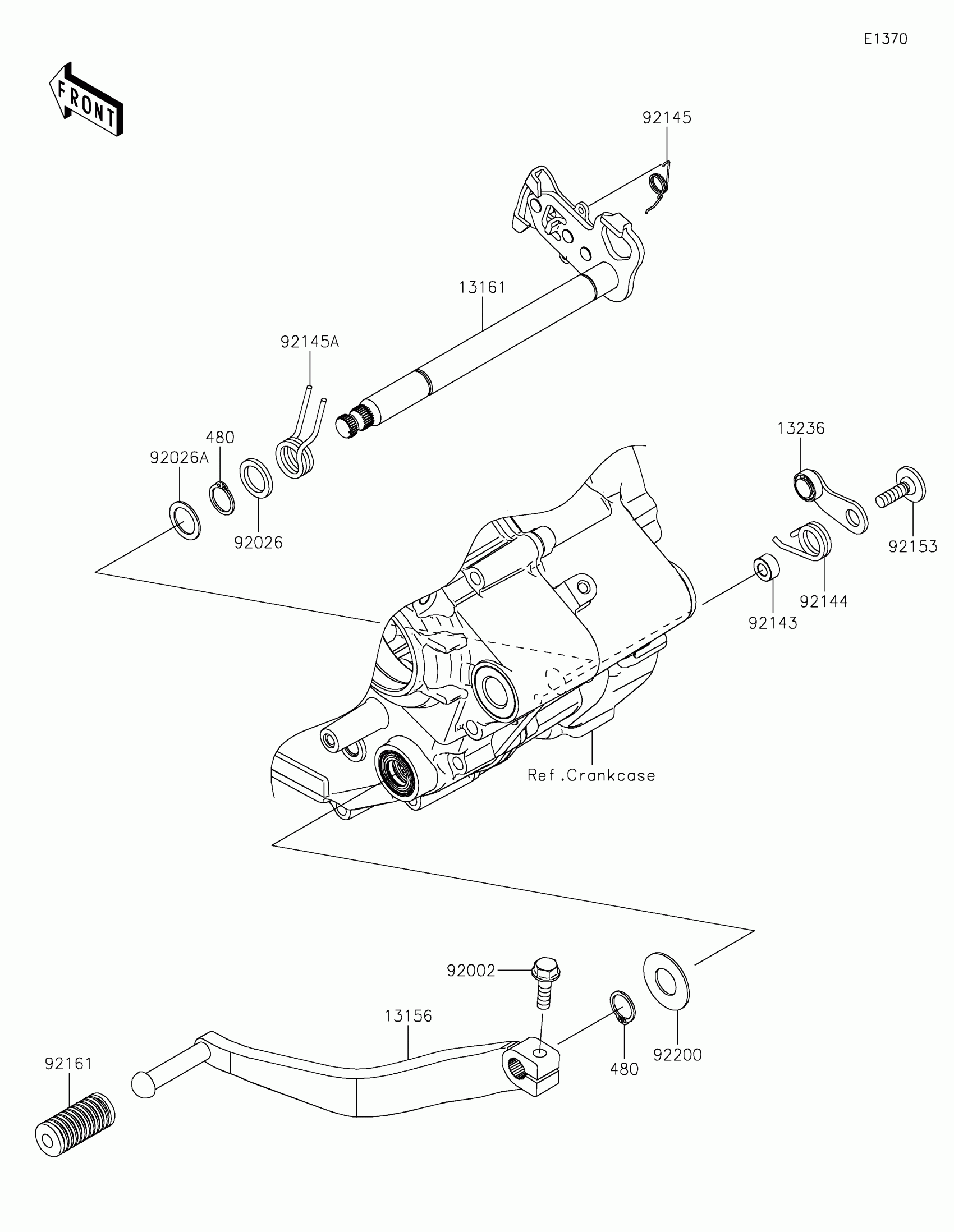

2025 Kawasaki W230 Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13156

LEVER-CHANGE,PEDAL

13156-0723

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-0612

1
Out of stock

13236

LEVER-COMP,POSITION

13236-0818

1
Out of stock

92002

BOLT,6X20

92002-1237

1
Out of stock

92026

SPACER,14X20X2.3

92026-0107

1
Out of stock

92026A

SPACER,14X20X1.0

92026-1534

1
Out of stock

92143

COLLAR

92143-1595

1
Out of stock

92144

SPRING,GEAR POSITION

92144-1523

1
Out of stock

92145

SPRING

92145-0414

1
Out of stock

92145A

SPRING,RETURN

92145-0415

1
Out of stock

92153

BOLT,6X20

92153-1505

1
Out of stock

92161

DAMPER,CHANGE PEDAL

92161-2089

1
Out of stock

92200

WASHER

92200-0265

1
Out of stock

480

CIRCLIP-TYPE-C,14MM

480J1400

1
Out of stock
