2025 Kawasaki W230 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

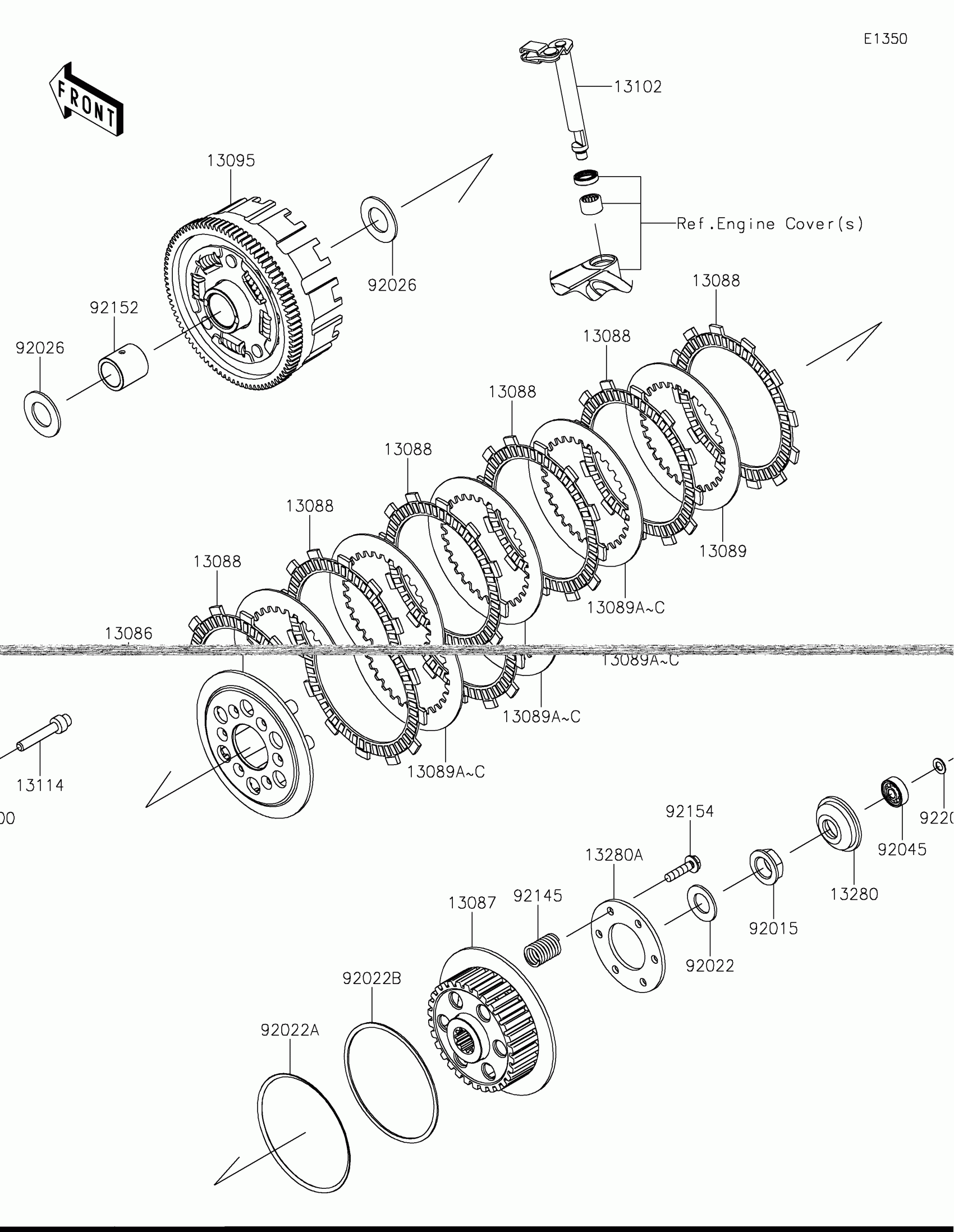

2025 Kawasaki W230 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13086

WHEEL-CLUTCH

13086-0008

1

$165.09

In stock

13087

HUB-CLUTCH

13087-0588

1

$151.84

In stock

13088

PLATE-FRICTION

13088-0631

1

$15.93

In stock

13089

PLATE-CLUTCH

13089-1085

1

$10.86

In stock

13089A

PLATE-CLUTCH,T=1.6

13089-1094

1

$10.14

In stock

13089B

PLATE-CLUTCH,T=2.0

13089-1116

—

$11.97

In stock

13089C

PLATE-CLUTCH,T=1.2

13089-1117

—

$11.97

In stock

13095

HOUSING-COMP-CLUTCH

13095-0595

1

$239.42

In stock

13102

RELEASE-COMP-CLUTCH

13102-0084

1

$59.99

In stock

13114

PUSHER-CLUTCH

13114-0001

1

$10.86

In stock

13280

1

$13.39

In stock

13280A

1

$40.25

In stock

92015

NUT,16MM

92015-1581

1

$15.43

In stock

92022

WASHER,16.3X29X1.75

92022-1356

1

$5.84

In stock

92022A

WASHER,JUDDER SPRING

92022-1974

1
Out of stock

92022B

WASHER,JUDDER SPRING SEAT

92022-1993

1
Out of stock

92026

SPACER,20.3X36.6X2

92026-0725

1
Out of stock

92045

1

$13.63

In stock

92145

SPRING

92145-1846

1

$14.19

In stock

92152

COLLAR,20X26.8X26.7

92152-2550

1

$30.99

In stock

92154

BOLT,6X25

92154-3785

1

$1.53

In stock

92200

WASHER,7X12.5X0.8

92200-0909

1
Out of stock
