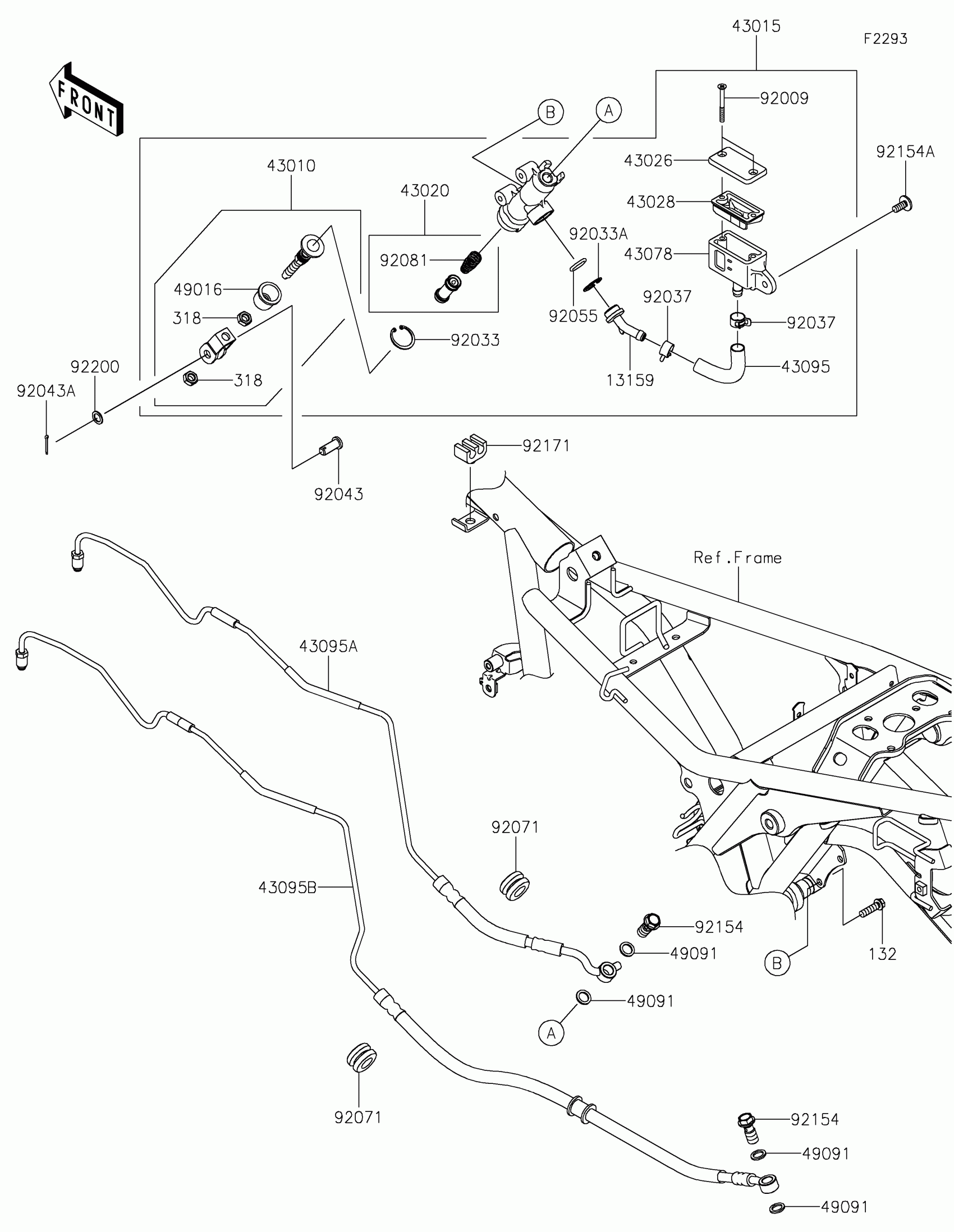

Find the part on the Rear Master Cylinder diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

CONNECTOR

13159-0008

1

$10.59

In stock

43010

ROD-ASSY-BRAKE

43010-0028

1

$55.97

In stock

43015

1

$262.69

In stock

43020

PISTON-COMP-BRAKE

43020-0023

1

$66.46

In stock

43026

CAP-BRAKE

43026-1075

1

$12.97

In stock

43028

DIAPHRAGM

43028-1067

1

$14.71

In stock

43078

RESERVOIR

43078-1189

1

$27.47

In stock

43095

1

$9.42

In stock

43095A

1

$142.31

In stock

43095B

1

$151.05

In stock

49016

1

$12.73

In stock

49091

1

$1.81

In stock

92009

SCREW,4X40

92009-1596

1
Out of stock

92033

1

$6.19

In stock

92033A

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

CLAMP

92037-1710

1

$7.86

In stock

92043

PIN

92043-0004

1

$8.85

In stock

92043A

PIN,COTTER,2.0X15

92043-0766

1

$1.10

In stock

92055

RING-O,14.8X2.4

92055-0741

1

$2.95

In stock

92071

GROMMET,12.2X26X16

92071-0785

1
Out of stock

92081

1

$11.69

In stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92154A

BOLT,SOCKET,6X14

92154-1202

1

$1.39

In stock

92171

CLAMP

92171-0818

1

$3.93

In stock

92200

WASHER,8.5X13X1

92200-1980

1

$3.53

In stock

132

1

$1.66

In stock

318

NUT-HEX-SMALL,8MM

318BA0800

1

$1.20

In stock
