2025 Kawasaki W230 Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

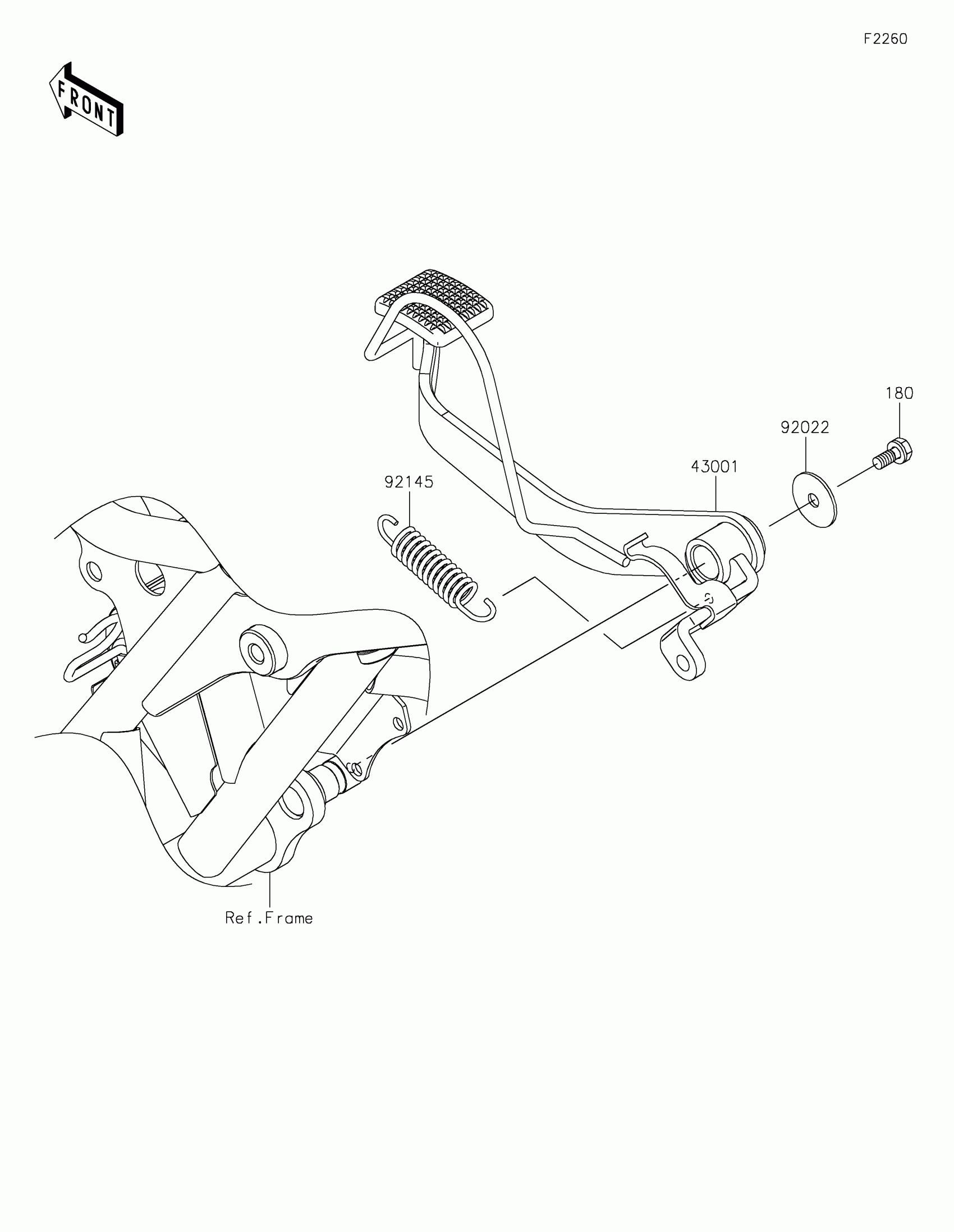

2025 Kawasaki W230 Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-0803

1

$91.22

In stock

92022

1

$2.15

In stock

92145

1

$3.08

In stock

180

BOLT-UPSET-WS,6X14

180BB0614

1

$1.66

In stock
← Transmission Brake Piping →
