2025 Kawasaki W230 Brake Piping Diagram

← All diagrams

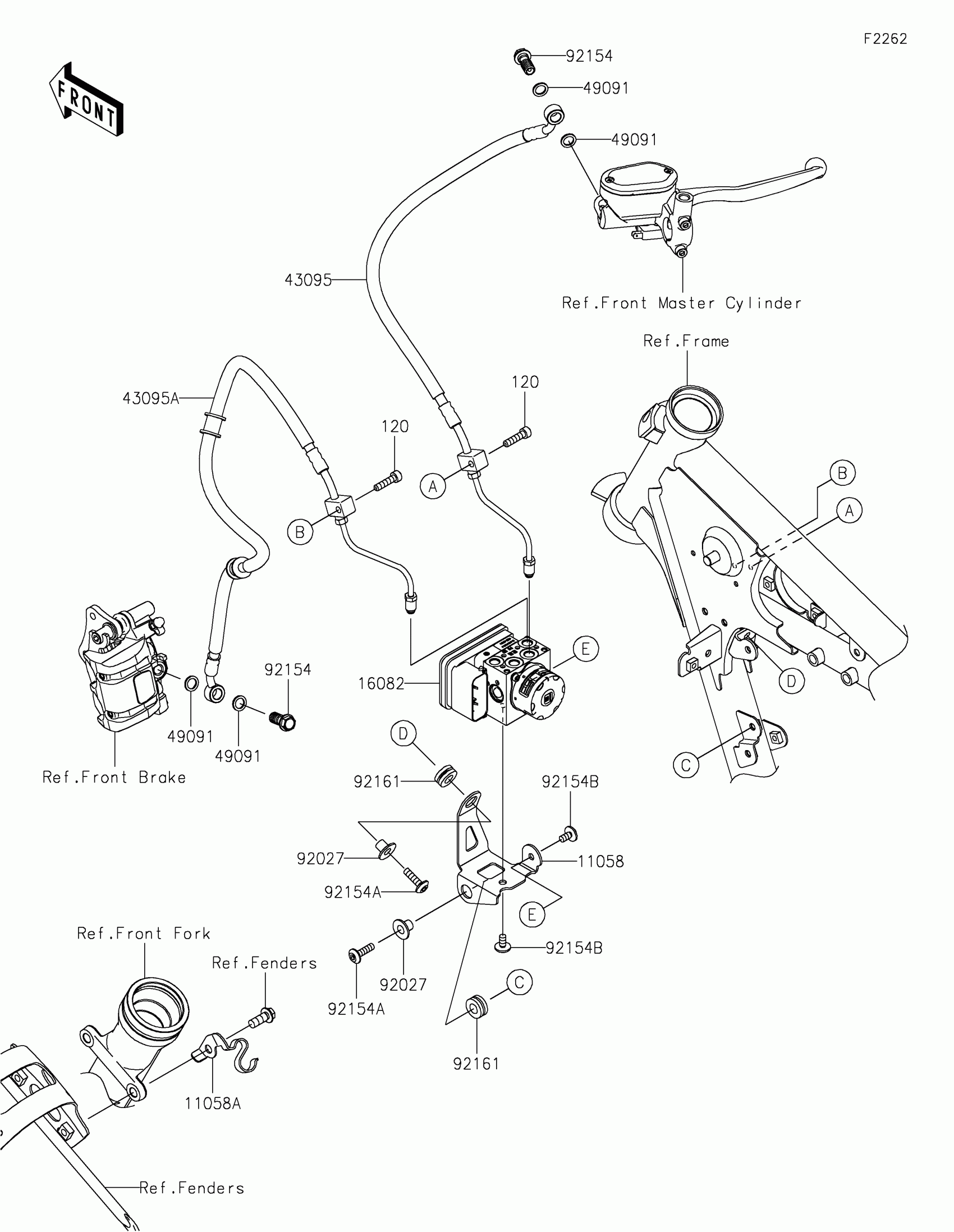

Find the part on the Brake Piping diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,ABS-UNIT

11058-1619

1

$8.54

In stock

11058A

1

$3.42

In stock

16082

1

$1,290.49

In stock

43095

1

$110.12

In stock

43095A

1

$137.53

In stock

49091

1

$1.81

In stock

92027

1

$4.37

In stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92154A

BOLT,SOCKET,6X22

92154-2302

1

$1.10

In stock

92154B

BOLT,SOCKET,6X12

92154-4310

1

$1.36

In stock

92161

DAMPER,10X20X8.8

92161-1664

1

$2.44

In stock

120

BOLT-SOCKET,6X25

120CA0625

1
Out of stock
