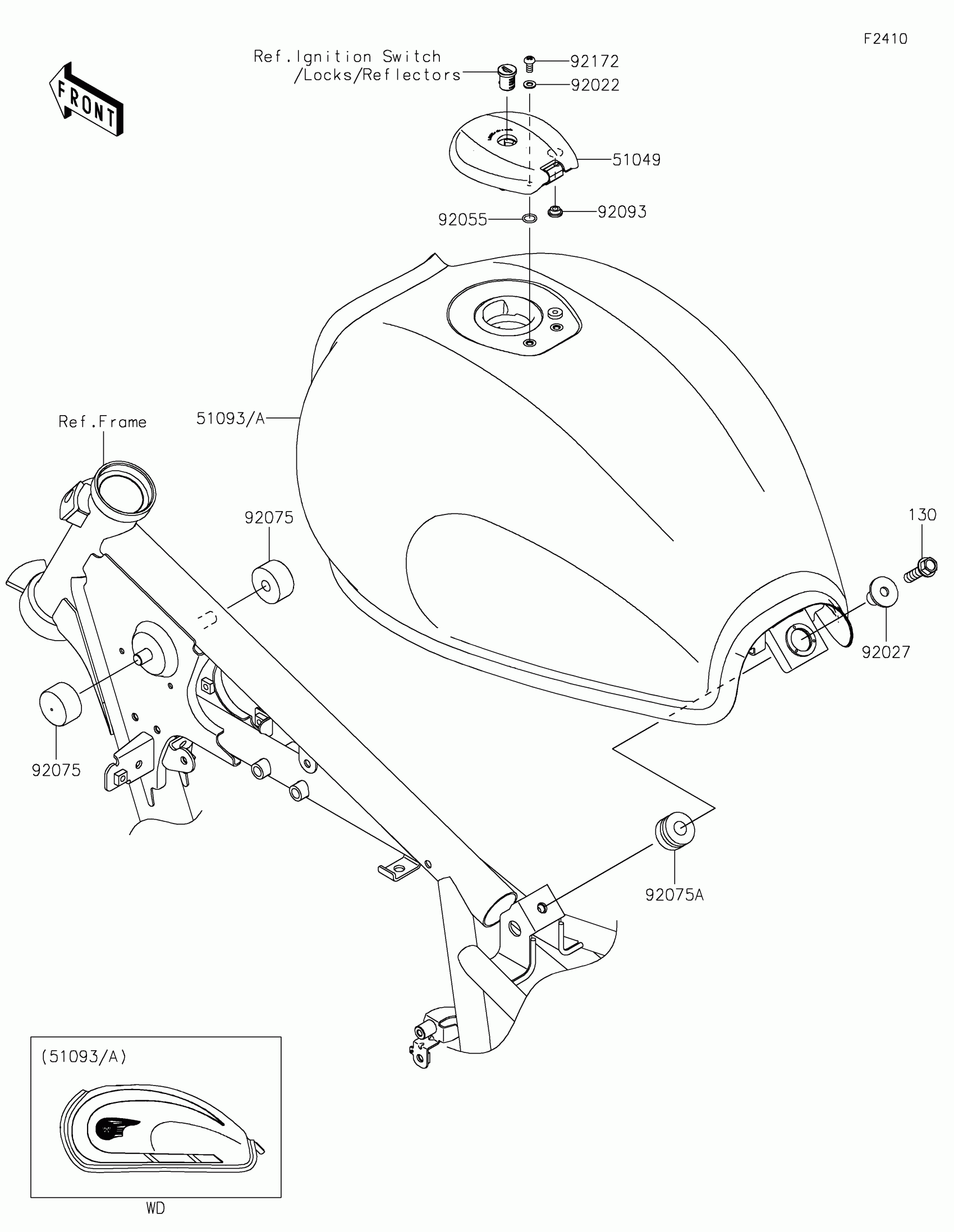

Find the part on the Fuel Tank diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

51049

CAP-TANK,FUEL

51049-0778

1

$106.86

In stock

51093

TANK-COMP-FUEL,M.O.BLUE

51093-5496-726

1

$845.14

In stock

51093A

TANK-COMP-FUEL,P.IVORY

51093-5497-63W

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1

$5.21

In stock

92055

RING-O

92055-1023

1

$3.12

In stock

92075

DAMPER,FUEL TANK

92075-125

1

$4.93

In stock

92075A

DAMPER

92075-1736

1

$5.21

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

92172

SCREW,5X10

92172-0496

1

$3.76

In stock

130

BOLT-FLANGED,8X30

130BA0830

1

$1.68

In stock
