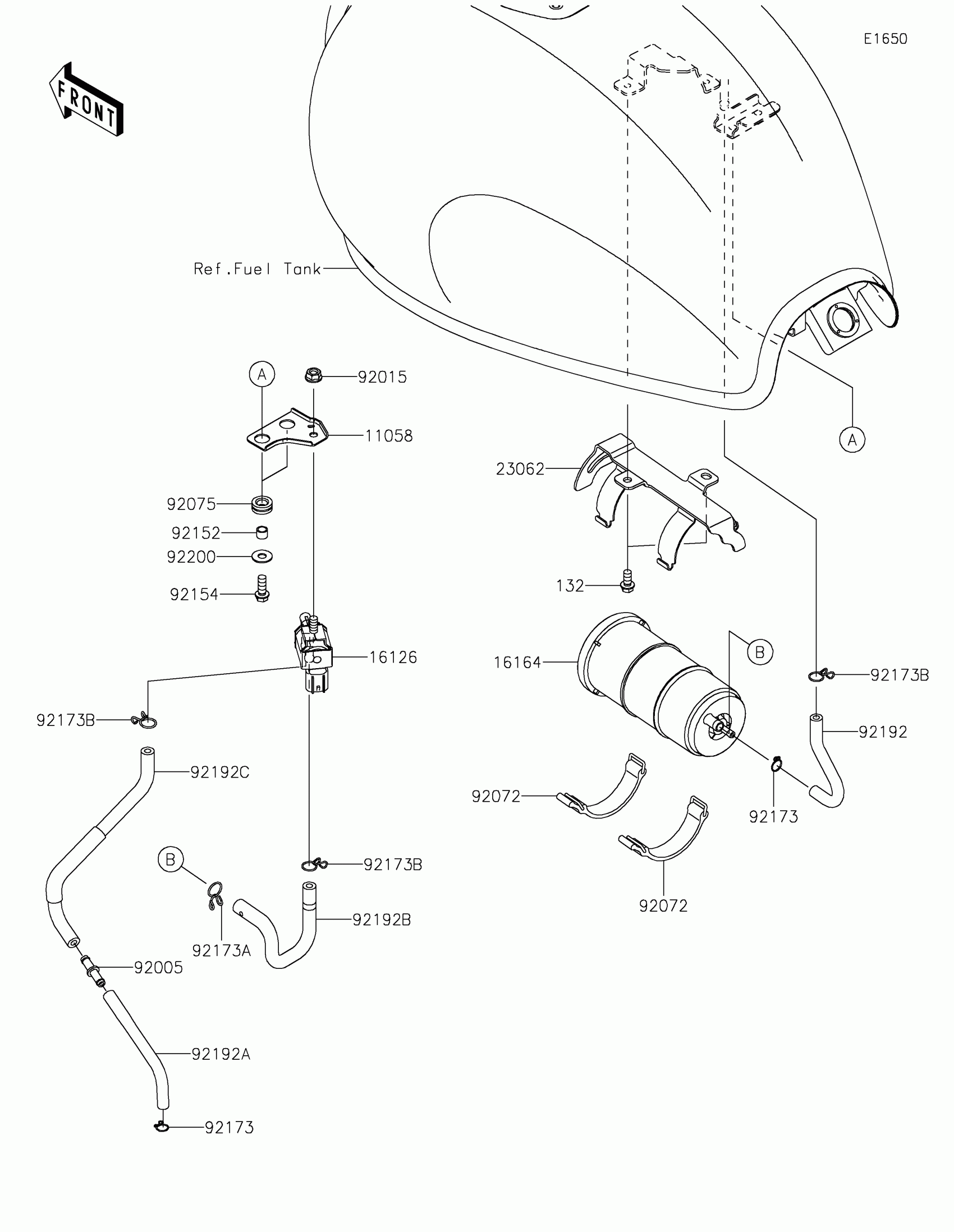

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki W230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki W230 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET

11058-2101

1

$1.86

In stock

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-0023

1

$72.89

In stock

23062

BRACKET-COMP

23062-1557

1

$11.81

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92072

BAND

92072-1257

1
Out of stock

92075

DAMPER

92075-1947

1

$5.84

In stock

92152

COLLAR

92152-3869

1

$1.27

In stock

92154

BOLT,FLANGED,6X16

92154-4217

1

$1.39

In stock

92173

CLAMP

92173-1190

1

$2.10

In stock

92173A

CLAMP

92173-1714

1

$7.15

In stock

92173B

CLAMP,10MM

92173-2400

1

$2.44

In stock

92192

TUBE,TANK-CANISTER

92192-2791

1

$29.98

In stock

92192A

1

$29.82

In stock

92192B

TUBE,CANISTER-VALVE

92192-2827

1

$35.35

In stock

92192C

TUBE,VALVE-FITTING

92192-2828

1

$36.91

In stock

92200

WASHER,6.5X16X1.0

92200-2390

1

$0.69

In stock

132

1

$1.12

In stock
