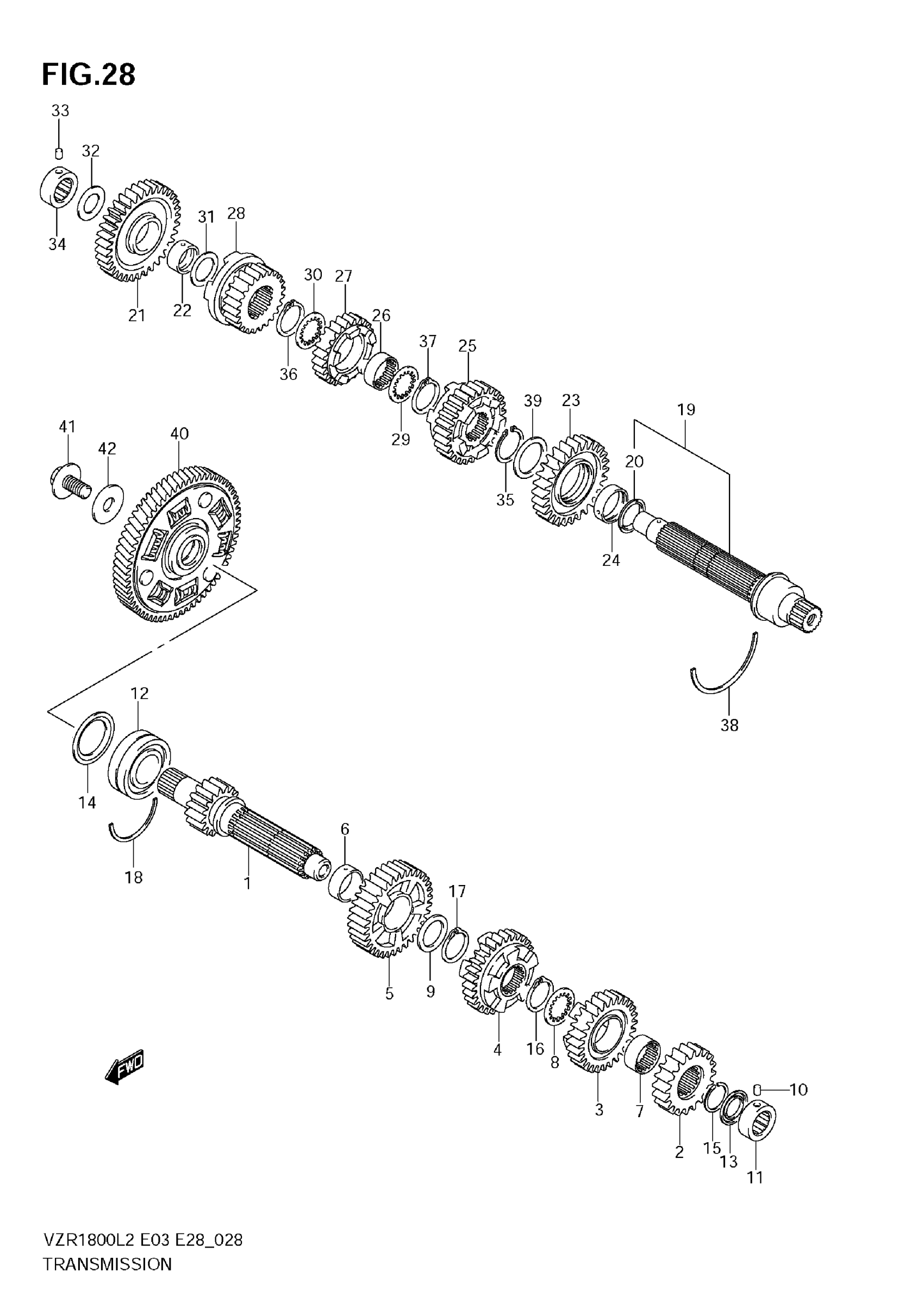

Suzuki VZR1800L2 (2012) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | NT:18

24121-48G10

$361.78

2

GEAR, 2ND DRIVE | NT:20

24221-48G00

$172.47

3

GEAR, 3RD DRIVE | NT:28

24231-48G10

$207.97

4

GEAR, 4TH DRIVE | NT:29

24241-48G10

$248.52

5

GEAR, 5TH DRIVE | NT:35

24251-48G00

$236.67

6

BUSH, 5TH DRIVE GEAR

24252-24F10

$40.03

7

BUSH, 3RD DRIVE GEAR

24262-24F10

$40.03

8

LOCK WASHER

09167-27003

$7.38

9

SHIM (27X36X2.5)

09181-27014

$6.87

10

PIN (6X10) | LH

09261-06003

$1.49

11

BEARING (20X34X13.5) | LH

09263-20087

$54.53

12

BEARING (25X62X25.4) | RH

09267-25012

$169.68

13

OIL SEAL (20X31.2X2.7)

09285-20006

$5.88

14

OIL SEAL (34X55.5X4) | RH

09285-34011

Unavailable

15

CIRCLIP

09380-27004

$3.33

16

CIRCLIP

09380-27006

$2.73

17

CIRCLIP

09380-27006

$2.73

18

C RING | RH

09390-62012

$6.69

19

SHAFT, DRIVE

24130-48G01

$332.32

20

RING, FRICTION

24136-48G01

$44.80

21

GEAR, 1ST DRIVEN | NT:35

24311-48G00

$232.28

22

BUSH, 1ST DRIVEN GEAR

24312-24F10

$40.03

23

GEAR, 2ND DRIVEN | NT:28

24321-48G10

$232.28

24

BUSH, 2ND DRIVEN GEAR

24322-48G00

$36.25

25

GEAR, 3RD DRIVEN | NT:27

24331-48G10

$249.13

26

BUSH, 4TH DRIVEN GEAR

24332-24F10

$38.53

27

GEAR, 4TH DRIVEN | NT:24

24341-48G00

$209.15

28

GEAR, 5TH DRIVEN | NT:24

24351-48G00

$228.48

29

LOCK WASHER

09167-30008

$6.65

30

LOCK WASHER

09167-30008

$6.65

31

SHIM (20X34X1) | RH

09181-20251

$2.77

32

SHIM (24X34X1) | LH

09181-24005

$3.21

33

PIN (6X10) | RH

09261-06003

$1.49

34

BEARING (20X34X13.5) | RH

09263-20087

$54.53

35

CIRCLIP

09380-30009

$3.15

36

CIRCLIP | RH

09380-30009

$3.15

37

CIRCLIP | LH

09380-30009

$3.15

38

C RING | LH

09390-80004

$12.53

39

WASHER

08211-30403

$4.45

40

GEAR ASSY, PRIMARY DRIVEN | NT:58

21200-22830

$685.47

41

BOLT (12X24)

09103-12084

$9.22

42

WASHER (12X35X2)

09160-12045

$3.76
