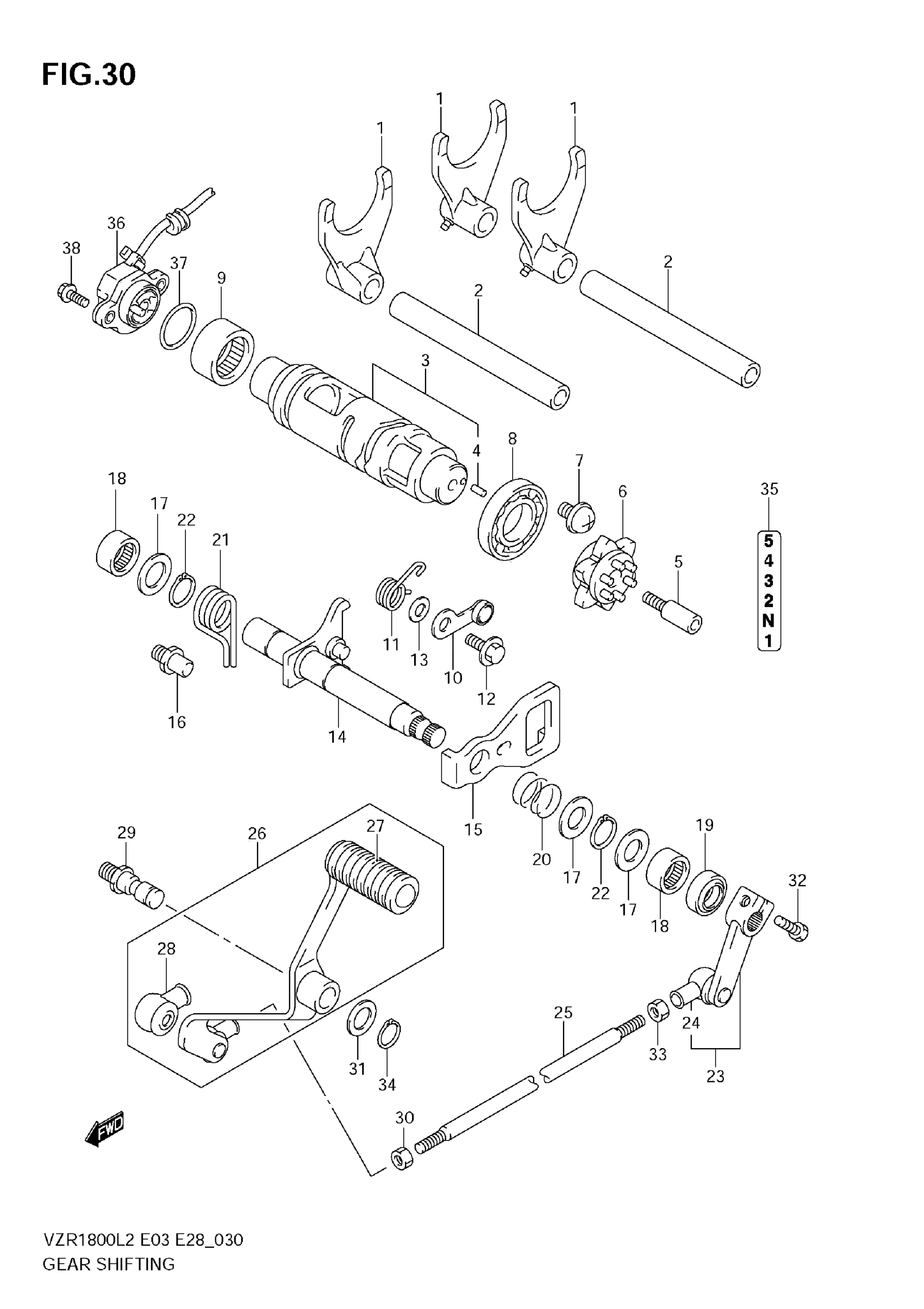

Suzuki VZR1800L2 (2012) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT

25211-35F11

$79.26

2

SHAFT, GEAR SHIFT FORK

25411-48G00

$23.30

3

CAM, GEAR SHIFT

25310-48G00

$275.40

4

PIN (4X13.8)

04221-04089

$1.10

5

STOPPER, SHIFT CAM DRIVE

25312-42F01

$7.28

6

PLATE, GEAR SHIFT CAM

25381-13E00

$63.22

7

SCREW (6X12)

09136-06147

$3.48

8

BEARING (25X47X8) | LH

09262-25006

$23.05

9

BEARING (25X32X12) | RH

09263-25018

$19.30

10

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

11

SPRING, CAM STOPPER ARM

25355-38F00

$5.52

12

BOLT (6X14.3)

09111-06041

$2.63

13

WASHER

08211-06141

$1.61

14

SHAFT, GEAR SHIFT

25510-48G00

$125.93

15

PLATE, GEAR SHIFT CAM DRIVE

25512-13E20

$43.10

16

STOPPER, GEAR SHIFT ARM

25671-01011

$4.09

17

SHIM (14X22X1)

09181-14167

$2.55

18

BEARING (14X20X12)

09263-14027

$12.21

19

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

20

SPRING

09440-17009

$1.73

21

SPRING

09444-20001

$4.80

22

CIRCLIP

08331-3114A

$1.89

23

ARM,GEAR SHIFT LINK This part replaces 25520-48G00.

25520-48G01

$50.33

24

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

25

ROD, GEAR SHIFT LINK

25525-48G00

$12.84

26

LEVER ASSY,GEAR SHIFT This part replaces 25600-48G10.

25600-48G11

$121.42

27

RUBBER, GEAR SHIFT

25652-38B00

$5.04

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$4.98

29

SHAFT, GEAR SHIFT LEVER

25617-03F10

$11.29

30

NUT | LH

09140-06025

$1.84

31

WASHER (12.5X20X1)

09160-12011

$1.48

32

BOLT

01547-0620A

$2.01

33

.NUT

08310-00067

$1.83

34

CIRCLIP

08331-3112A

$1.77

35

LABEL, GEAR SHIFT

68392-38B00

Unavailable

36

SENSOR ASSY,GEAR POSITION This part replaces 37730-48G01.

37730-48G03

$67.61

37

O RING (D:2.4,ID:26.2)

09280-26005

$2.31

38

BOLT

07120-0516A

$1.72
