2012 Suzuki VZR1800L2 Clutch Diagram

← All diagrams

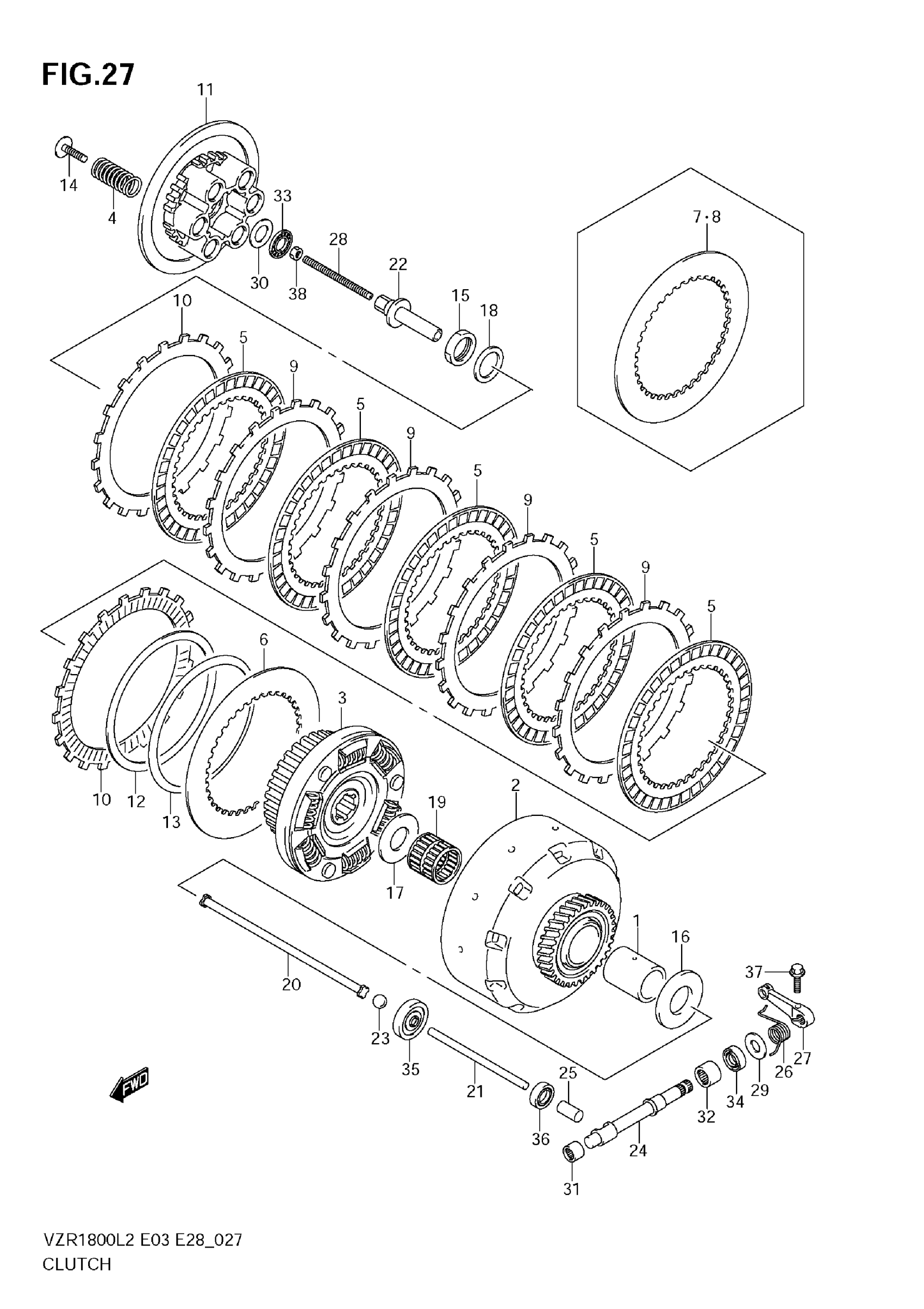

Find the part on the Clutch diagram for your 2012 Suzuki VZR1800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki VZR1800L2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$51.63

In stock

2

1

$383.37

In stock

3

HUB, CLUTCH

21410-48G10

1

$485.47

In stock

4

SPRING, CLUTCH

21413-35F10

6

$7.09

In stock

5

6

$49.80

In stock

6

1

$18.82

In stock

7

1

$18.82

In stock

8

1

$18.82

In stock

9

5

$20.94

In stock

10

2

$36.68

In stock

11

DISC, CLUTCH PRESSURE

21462-48G00

1

$64.21

In stock

12

SEAT, WAVE WASHER

21471-48G00

1

$14.17

In stock

13

WASHER, CLUTCH PLATE

21472-48G10

1

$25.93

In stock

14

BOLT, CLUTCH SPRING

21482-41G00

6

$2.93

In stock

15

NUT

09159-24010

1

$12.79

In stock

16

.WASHER (25X50X2.5)

09160-25056

1

$11.40

In stock

17

.WASHER (25X50X2.5)

09160-25056

1

$11.40

In stock

18

WASHER

09164-24008

1

$5.00

In stock

19

BEARING (32X37X38.3)

09263-32020

1

$50.87

In stock

20

ROD, CLUTCH

23110-24F00

1

$22.79

In stock

21

ROD, CLUTCH PUSH LH

23111-48G00

1

$22.30

In stock

22

PIECE, CLUTCH PUSH

23121-41G00

1

$55.32

In stock

23

BALL, CLUTCH PUSH

23122-02FR0

1

$100.95

In stock

24

1

$66.67

In stock

25

CAP, CLUTCH PUSH ROD

23123-41G00

1

$10.90

In stock

26

1

$4.47

In stock

27

ARM, CLUTCH RELEASE

23271-48G00

1

$86.48

In stock

28

SCREW (6X73)

09134-06015

1

$6.71

In stock

29

WASHER (10.5X24X1)

09160-10020

1

$2.23

In stock

30

WASHER (15.5X28X1)

09160-15045

1

$3.77

In stock

31

1

$13.10

In stock

32

1

$7.08

In stock

33

BEARING (15X28X2)

09263-15003

1

$8.03

In stock

34

OIL SEAL (10X20X6)

09282-10012

1

$7.73

In stock

35

OIL SEAL (6X34X10.5)

09283-06010

1

$16.28

In stock

36

OIL SEAL (10X17X5)

09285-10004

1
Out of stock

37

BOLT

01547-0620A

1
Out of stock

38

NUT

08310-0006A

1
Out of stock
