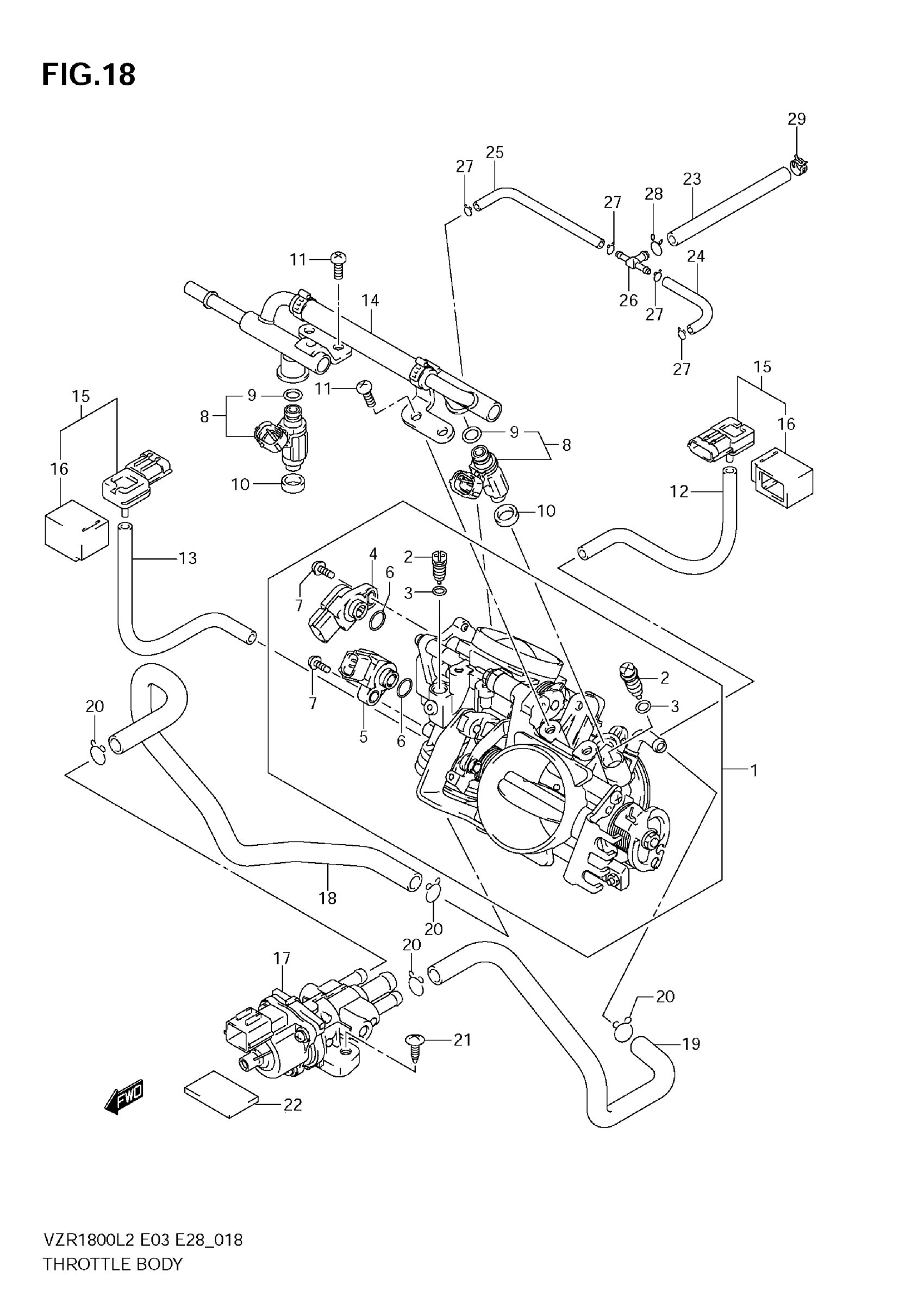

Suzuki VZR1800L2 (2012) THROTTLE BODY (VZR1800Z L2 E33) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE This part replaces 13405-48G30.

13405-48G31

$1,777.08

2

ADJUSTER

13269-48G00

Unavailable

3

O RING

13521-29FA0

Unavailable

4

SENSOR ASSY

13580-29G00

$109.53

5

SENSOR ASSY

13580-48G00

$226.37

6

.O-RING This part replaces 13575-29G00.

13575-29G01

$2.97

7

SCREW

13605-02F00

$3.50

8

INJECTOR ASSY

15710-48G00

$251.25

9

.O-RING

15717-58B00

$9.11

10

SEAL

15722-29G00

$10.01

11

SCREW

13602-06148

$4.08

12

HOSE This part replaces 13683-48G00.

13683-48G01

$35.97

13

HOSE This part replaces 13683-48G10.

13683-48G11

$46.50

14

PIPE ASSY, DELIVERY

15730-48G01

$341.00

15

SENSOR, PRESSURE

15630-29G10

$304.30

16

COVER

15625-29G00

$14.00

17

VALVE, ISC

18117-48G00

$381.13

18

HOSE,ISC VALVE,R This part replaces 13697-48G00.

13697-48G01

$22.32

19

HOSE,ISC VALVE,L This part replaces 13698-48G00.

13698-48G01

$15.87

20

CLIP

09401-13102

$3.42

21

SCREW

03111-0625A

Unavailable

22

CUSHION

44612-13600

$5.27

23

.HOSE

13680-48G01

$50.77

24

.HOSE

13683-48G21

$72.12

25

.HOSE

13683-48G31

Unavailable

26

NIPPLE

13685-04F10

$12.50

27

CLIP

09401-06101

$2.06

28

CLIP This part replaces 09401-10410.

09401-10401

$1.45

29

CLIP (ID:9.4,H:8)

09401-09403

$2.01
