2016 Suzuki VZR1800 Frame Head Cover Diagram

← All diagrams

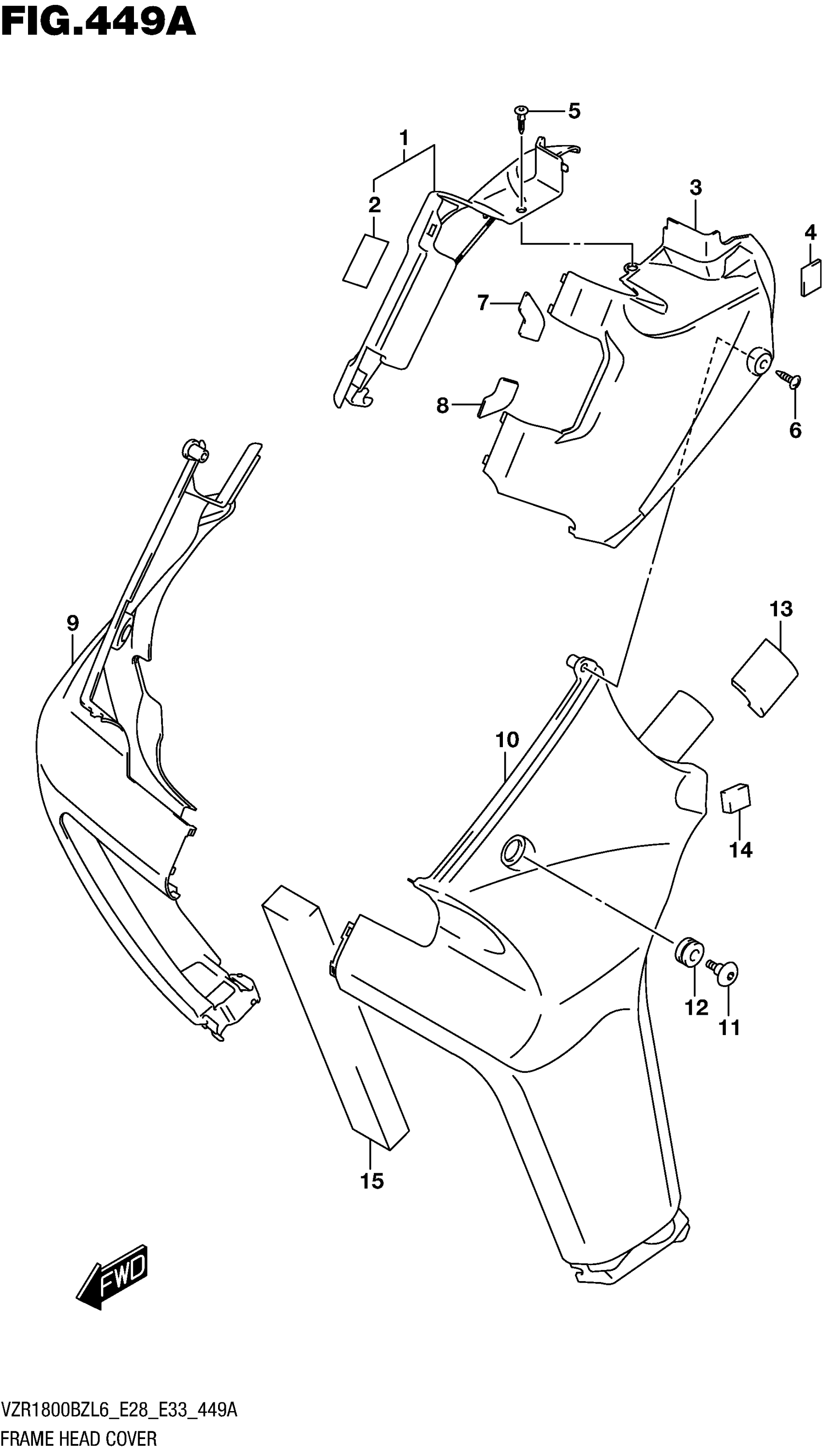

Find the part on the Frame Head Cover diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki VZR1800 Frame Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

COVER, FRAME HEAD RH (GRAY) | FOR PGZ

47350-48G00-PGZ

1
Out of stock

1-2

COVER, FRAME HEAD RH (BLUE) | FOR BBD

47350-48G50-YKY

1
Out of stock

2

.PROTECTOR

89445-61J00

1

$11.18

In stock

3-1

COVER, FRAME HEAD LH (GRAY) | FOR PGZ

47361-48G00-PGZ

1
Out of stock

3-2

COVER, FRAME HEAD LH (BLUE) | FOR BBD

47361-48G50-YKY

1
Out of stock

4

CUSHION

17798-39G00

6
Out of stock

5

CLIP

09409-06328

1
Out of stock

6

SCREW

03541-0516A

2
Out of stock

7

TAPE, UPPER LH

47352-48G00

1
Out of stock

8

TAPE, LOWER LH

47353-48G01

1
Out of stock

9-1

COVER, FRAME BODY RH (GRAY) | FOR PGZ

47551-48G00-PGZ

1
Out of stock

9-2

COVER, FRAME BODY RH (BLUE) | FOR BBD

47551-48G50-YKY

1
Out of stock

10-1

COVER, FRAME BODY LH (GRAY) | FOR PGZ

47561-48G00-PGZ

1
Out of stock

10-2

COVER, FRAME BODY LH (BLUE) | FOR BBD

47561-48G50-YKY

1
Out of stock

11

SCREW (6X20)

09139-06126

2
Out of stock

12

CUSHION

09320-09016

2
Out of stock

13

CUSHION, UPPER

63191-25C00

2
Out of stock

14

CUSHION, CENTER

17798-39G00

2
Out of stock

15

CUSHION, LOWER RH

47552-48G00

1

$23.15

In stock

16

COLOR :

SPECIAL NOTE

—
Out of stock

16

BBD=YKY(BLUE),YVB(BLACK)

SPECIAL NOTE

—
Out of stock
