2016 Suzuki VZR1800 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

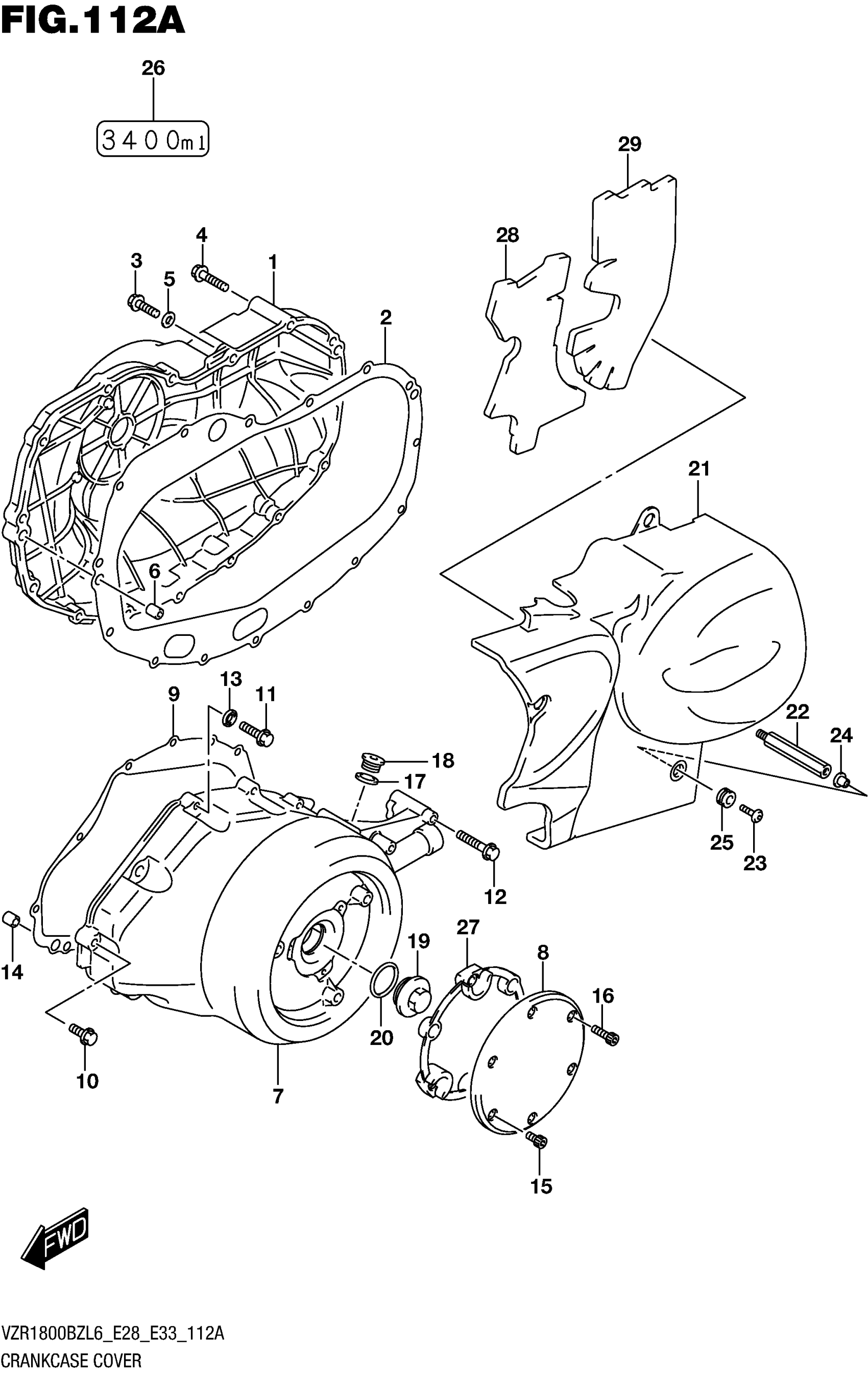

2016 Suzuki VZR1800 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-48G10

1
Out of stock

2

GASKET, CL COVER

11482-48G00

1
Out of stock

3

BOLT (6X30)

09103-06213

13
Out of stock

4

BOLT (6X60)

09103-06261

2
Out of stock

5

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

6

PIN

04211-09189

2
Out of stock

7

COVER, MAGNETO

11351-48G10

1
Out of stock

8

CAP, MAGNETO COVER

11352-48G00

1
Out of stock

9

GASKET, MAGNETO COVER

11483-48G00

1
Out of stock

10

BOLT (6X30)

09103-06213

7
Out of stock

11

BOLT (6X50)

09103-06238

3
Out of stock

12

BOLT (6X70)

09103-06225

3
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

14

PIN

04211-09149

2
Out of stock

15

BOLT (6X10) This part replaces 09106-06068.

09106-06076

3
Out of stock

16

BOLT (6X20)

09106-06123

3
Out of stock

17

GASKET (16X22X2)

09168-16002

1
Out of stock

18

PLUG (16X8)

09248-16012

1
Out of stock

19

CAP

09259-30005

1

$10.57

In stock

20

1

$2.91

In stock

21

COVER, SECONDARY DRIVE UNIT

11361-48G30

1
Out of stock

22

BOLT, SEC DRIVE UNIT COVER

11372-48G00

1
Out of stock

23

SCREW (6X20)

09139-06028

3
Out of stock

24

WASHER

09169-06062

3
Out of stock

25

CUSHION

09320-09501

3

$2.22

In stock

26

NOTE, ENGINE OIL

68322-48G00

1
Out of stock

27

DAMPER,MAGNETO COVER CAP This part replaces 11353-48G00.

11353-48G01

1
Out of stock

28

DAMPER, SEC DRIVE UNIT COVER

11363-48G20

1
Out of stock

29

DAMPER, SEC DRIVE UNIT COVER

11364-48G00

1
Out of stock
