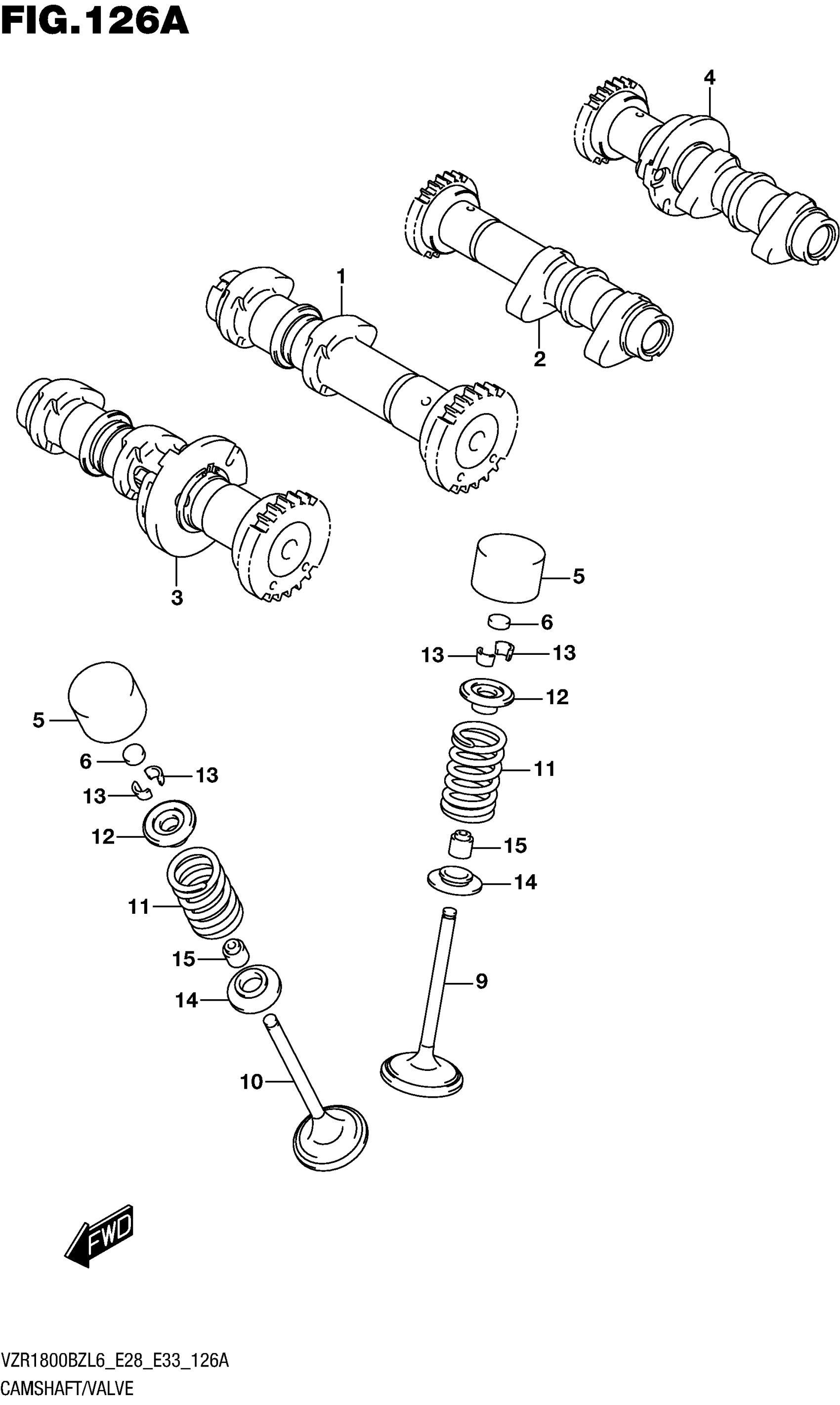

Suzuki VZR1800 (2016) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE FRONT (NT:24

12710-48G00

$308.23

2

CAMSHAFT, INTAKE REAR (NT:24)

12730-48G00

$281.48

3

CAMSHAFT, EXHAUST FRONT

12720-22H00

$538.51

3

(NT:24)

12720-22H00

$538.51

4

CAMSHAFT, EXHAUST REAR (NT:24

12740-22H00

$551.97

5

TAPPET

12891-48G00

$98.00

6-1

SHIM, TAPPET (T:2.30)

12892-41C00-230

$12.85

6-2

SHIM, TAPPET (T:2.35)

12892-41C00-235

$13.35

6-3

SHIM, TAPPET (T:2.40)

12892-41C00-240

$13.35

6-4

SHIM, TAPPET (T:2.45)

12892-41C00-245

$13.35

6-5

SHIM, TAPPET (T:2.50)

12892-41C00-250

$13.35

6-6

SHIM, TAPPET (T:2.55)

12892-41C00-255

$13.35

6-7

SHIM, TAPPET (T:2.60)

12892-41C00-260

$12.85

6-8

SHIM, TAPPET (T:2.65)

12892-41C00-265

$12.85

6-9

SHIM, TAPPET (T:2.70)

12892-41C00-270

$12.85

6-10

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.12

6-11

SHIM, TAPPET (T:2.80)

12892-41C00-280

$12.85

6-12

SHIM, TAPPET (T:2.85)

12892-41C00-285

$13.35

6-13

SHIM, TAPPET (T:2.90)

12892-41C00-290

$12.85

6-14

SHIM, TAPPET (T:2.95)

12892-41C00-295

$13.35

6-15

SHIM, TAPPET (T:3.00)

12892-41C00-300

$13.10

6-16

SHIM, TAPPET (T:3.05)

12892-41C00-305

$13.35

6-17

SHIM, TAPPET (T:3.10)

12892-41C00-310

$12.85

6-18

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

6-19

SHIM, TAPPET (T:3.20)

12892-41C00-320

$13.10

6-20

SHIM, TAPPET (T:3.25)

12892-41C00-325

$13.35

6-21

SHIM, TAPPET (T:3.30)

12892-41C00-330

$13.35

6-22

SHIM, TAPPET (T:3.35)

12892-41C00-335

$13.35

6-23

SHIM, TAPPET (T:3.40)

12892-41C00-340

$13.35

6-24

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

6-25

SHIM, TAPPET (T:3.50)

12892-41C00-350

$13.35

7

SHIM SET, TAPPET | OPT

12800-41810

$1,242.87

7

T:2.30, 2.35...3.45, 3.50 | NOT ILLUSTRATED

12800-41810

$1,242.87

7

(5PCS.EACH) & CASE

12800-41810

$1,242.87

8

.CASE, TAPPET SHIM | OPT

99000-69471

Unavailable

8

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69471

Unavailable

9

VALVE, INTAKE

12911-48G10

$57.45

10

VALVE, EXHAUST

12912-48G00

$84.55

11

SPRING, VALVE

12921-48G10

$22.08

12

RETAINER, VALVE SPRING

12931-48G00

$9.50

13

COTTER, VALVE

12932-85FA0

$2.80

14

SEAT, VALVE SPRING

12933-19B00

$9.37

15

OIL SEAL (6X12.8X10.2)

09289-06003

$7.20
