2014 Suzuki VZ800L4 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2014 Suzuki VZ800L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

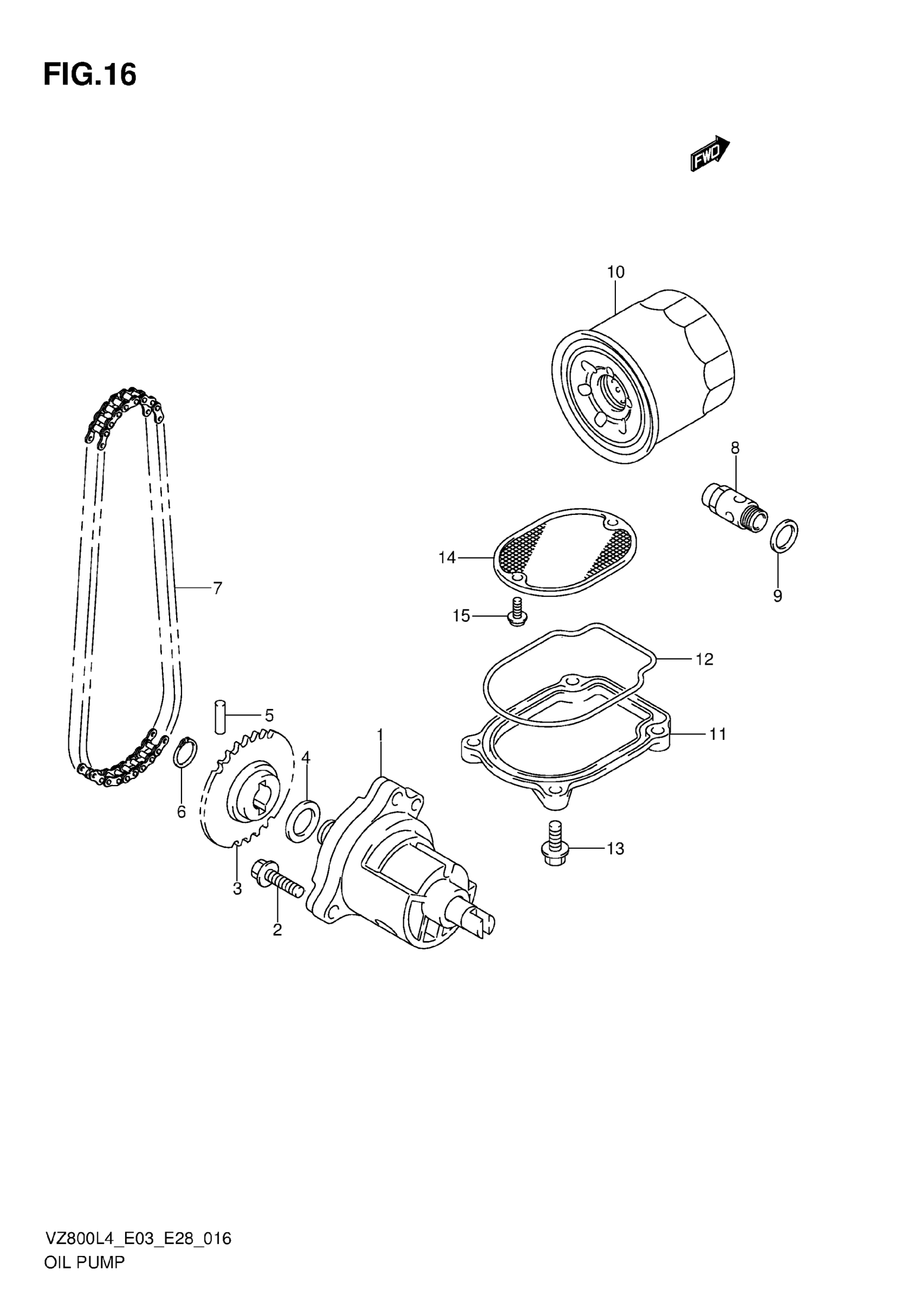

2014 Suzuki VZ800L4 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-38A01

1
Out of stock

2

BOLT

01547-0625A

3
Out of stock

3

SPROCKET, OIL PUMP DRIVEN (NT:29)

16331-38A10

1
Out of stock

4

SHIM (12X20X0.5)

09181-12158

1
Out of stock

5

PIN (5X18)

09261-05006

1
Out of stock

6

CIRCLIP

08331-3112A

1
Out of stock

7

CHAIN ASSY, OIL PUMP DR

16310-38A00

1
Out of stock

8

VALVE ASSY,OIL RELIEF

16440-17C20

1
Out of stock

9

GASKET (16X22X2)

09168-16002

1
Out of stock

10

FILTER ASSY, ENGINE OIL

16510-07J00

1
Out of stock

11

CAP, OIL STRAINER

16523-38A00

1
Out of stock

12

O RING, OIL STRAINER CA

16528-38A00

1
Out of stock

13

BOLT

01547-0620A

4
Out of stock

14

STRAINER, ENG OIL

16520-38A10

1
Out of stock

15

SCREW

02112-7512A

2
Out of stock
