2014 Suzuki VZ800L4 CAM Chain Diagram

← All diagrams

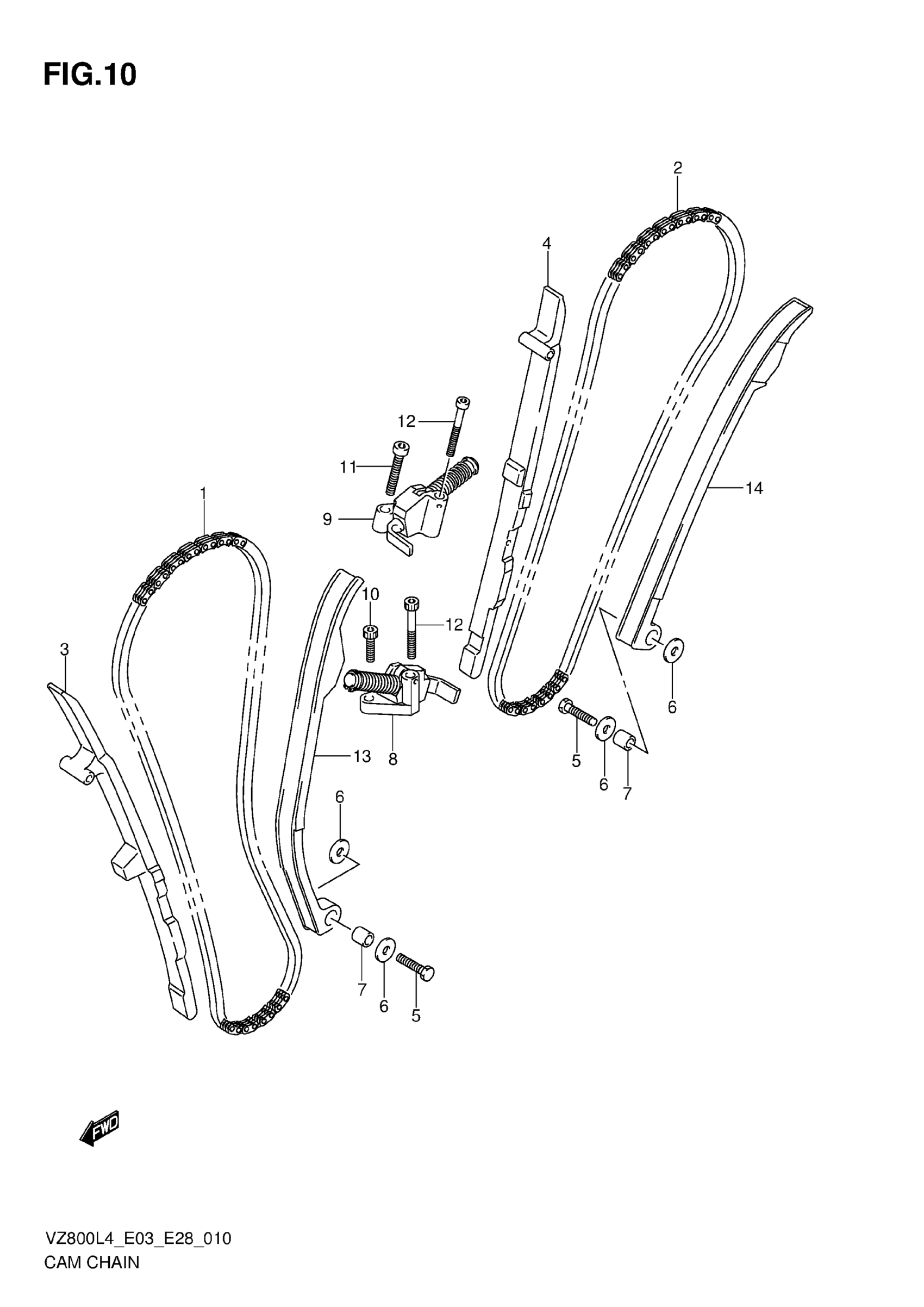

Find the part on the CAM Chain diagram for your 2014 Suzuki VZ800L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki VZ800L4 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE FRONT

12760-41F01

1
Out of stock

2

CHAIN, CAM SHAFT DRIVE REAR

12760-38A21

1
Out of stock

3

GUIDE,CAM CHAIN FRONT This part replaces 12772-41F00.

12772-41F01

1
Out of stock

4

GUIDE,CAM CHAIN REAR This part replaces 12771-41F00.

12771-41F01

1
Out of stock

5

BOLT (6X26)

09100-06129

2
Out of stock

6

WASHER

08211-06182

4

$2.08

In stock

7

SPACER (6X11X11)

09180-06148

2
Out of stock

8

ADJUSTER ASSY, TENSIONER FRONT

12831-38A01

1
Out of stock

9

ADJUSTER ASSY, TENSIONER REAR

12832-41F01

1
Out of stock

10

BOLT

07130-0620A

1
Out of stock

11

BOLT

07130-0630A

1
Out of stock

12

BOLT

07130-0645A

2
Out of stock

13

TENSIONER,CAM CHAIN FRONT This part replaces 12811-41F00.

12811-41F01

1
Out of stock

14

TENSIONER, CAM CHAIN REAR

12816-38A01

1
Out of stock
