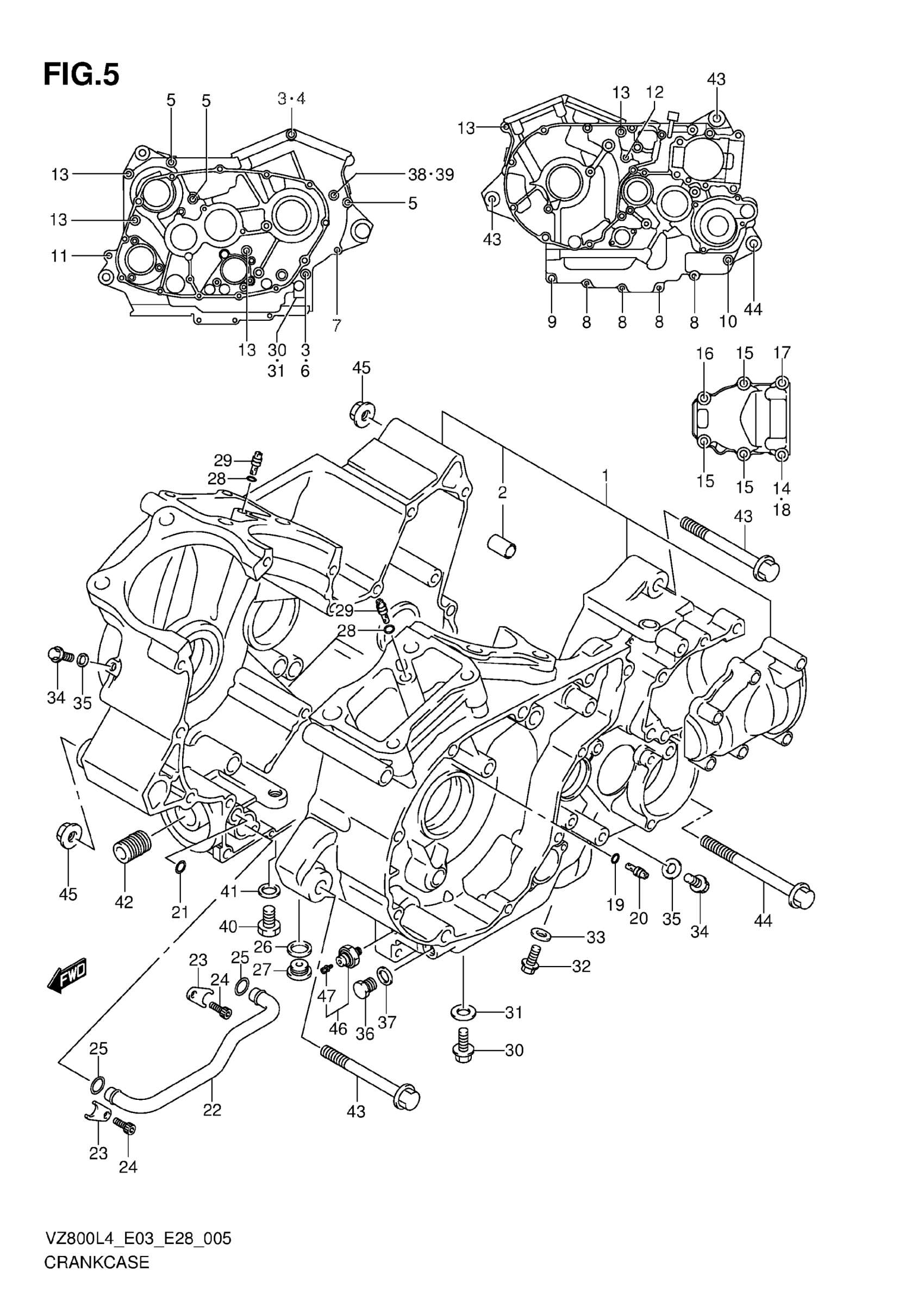

Suzuki VZ800L4 (2014) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11302-39830

Unavailable

2

PIN (8.4X11X20)

09206-11007

$2.63

3

GASKET (8.2X14X1)

09168-08016

$1.64

4

BOLT (8X160)

09103-08405

Unavailable

5

BOLT (8X120)

09103-08406

Unavailable

6

BOLT (8X105)

09103-08179

Unavailable

7

BOLT (8X95)

09103-08164

$5.17

8

BOLT

01547-0640A

$2.31

9

BOLT (8X35)

01550-0835A

$2.80

10

.BOLT

01550-0855A

$2.80

11

BOLT

01550-0860A

$1.37

12

BOLT

01550-0875A

$3.25

13

BOLT (8X95)

09103-08105

$4.20

14

GASKET (8.2X14X1)

09168-08016

$1.64

15

BOLT

01550-0840A

$2.80

16

BOLT

01550-0850A

$3.98

17

.BOLT

01550-0855A

$2.80

18

BOLT

01550-0865A

$3.21

19

O RING (D:1.2,ID:4)

09280-04004

$1.76

20

JET,T/M OIL GALLERY

09493-20014

$18.33

21

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

22

PIPE, OIL GALLERY

11451-38A00

Unavailable

23

CLAMP, OIL PIPE

11461-38A00

Unavailable

24

BOLT (6X12)

09106-06075

$2.50

25

O RING (D:3.1,ID:14.8)

09280-15008

$2.35

26

GASKET (16X22X2)

09168-16002

$1.89

27

PLUG (16X12)

09248-16013

$4.41

28

O RING (D:1.2,ID:4)

09280-04004

$1.76

29

JET AIR(14)

09493-28010

$18.00

30

BOLT (8X12)

01550-0812A

$2.31

31

GASKET (8.2X14X1)

09168-08016

$1.64

32

PLUG (10X12)

09247-10008

$1.97

33

GASKET (10X14X3.6)

09168-10002

$1.96

34

BOLT

01550-0610A

$1.97

35

GASKET (5.8X13X1.2)

09168-06023

$2.01

36

PLUG (14X12)

09247-14026

$3.38

37

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

38

BOLT (8X12)

09103-08407

Unavailable

39

GASKET (8.2X14X1)

09168-08016

$1.64

40

PLUG (12X20) | OIL DRAIN

09247-12011

$4.19

41

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

42

UNION,OIL STAND

16591-06B01

$6.45

43

BOLT (10X135)

09103-10706

$12.48

44

BOLT (10X160)

09103-10705

Unavailable

45

NUT

09159-10113

$5.10

46

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$27.58

47

BOLT, OIL PRESS SW

37822-33D00

$4.92
