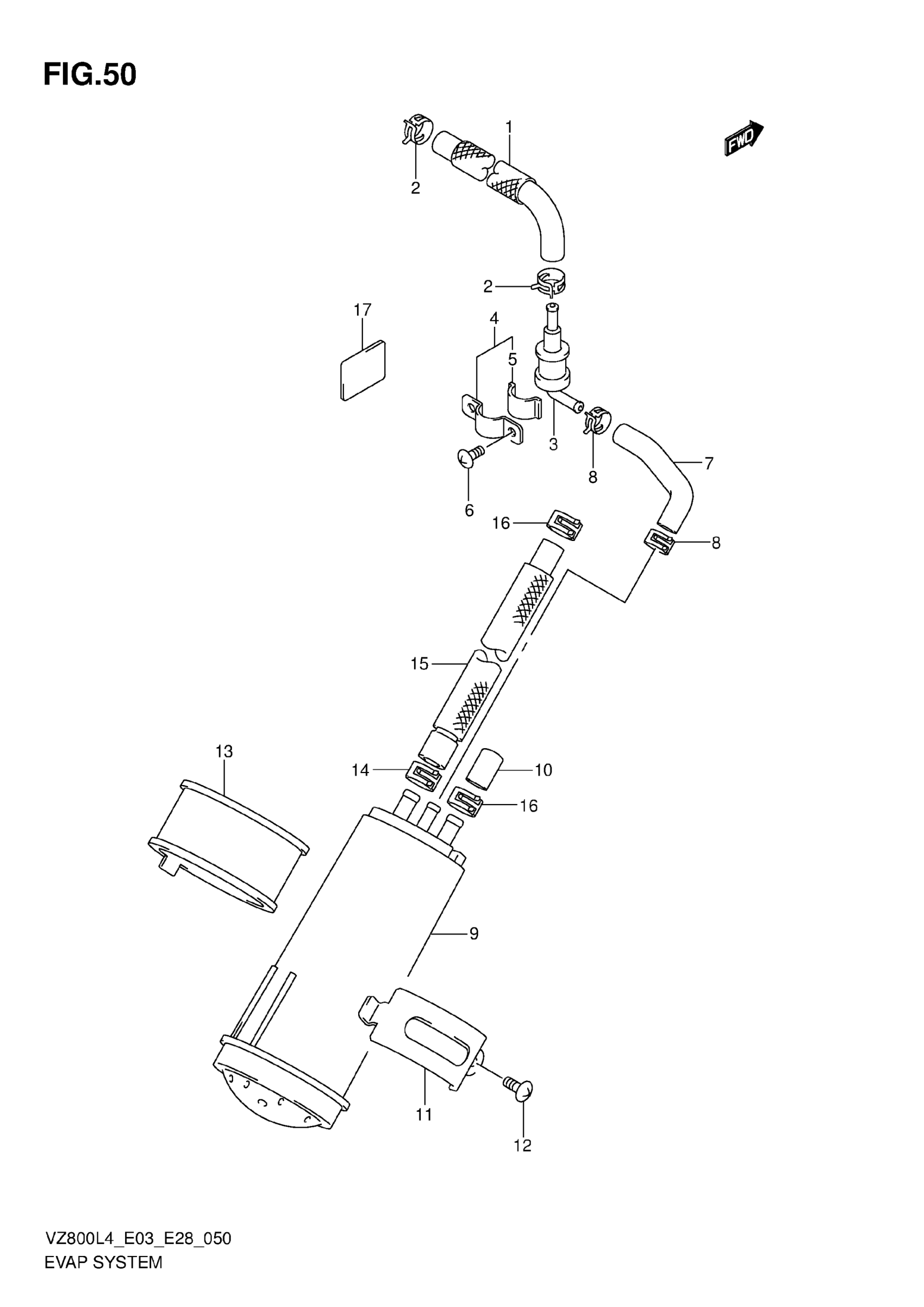

Find the part on the Evap System diagram for your 2014 Suzuki VZ800L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki VZ800L4 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE UPPER

44434-39G10

—
Out of stock

2

CLIP

09401-11413

2
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

SCREW

02142-0408A

2
Out of stock

7

HOSE, VALVE & CANISTER

44435-39G10

1
Out of stock

8

CLIP

09401-11413

2
Out of stock

9

CANISTER SET

17200-17H00

1
Out of stock

10

CAP (OD:11.5)

09251-07003

1
Out of stock

11

HOLDER, CANISTER

44882-26E00

1
Out of stock

12

SCREW

02142-0610A

1
Out of stock

13

CUSHION CANISTER

44883-26E00

1
Out of stock

14

CLIP

09401-12404

2
Out of stock

15

HOSE, CANISTER PURGE

44436-43H00

1
Out of stock

16

CLIP

09401-11413

1
Out of stock

17

PROTECTOR, EVAP HOSE

47261-48B00

1
Out of stock
