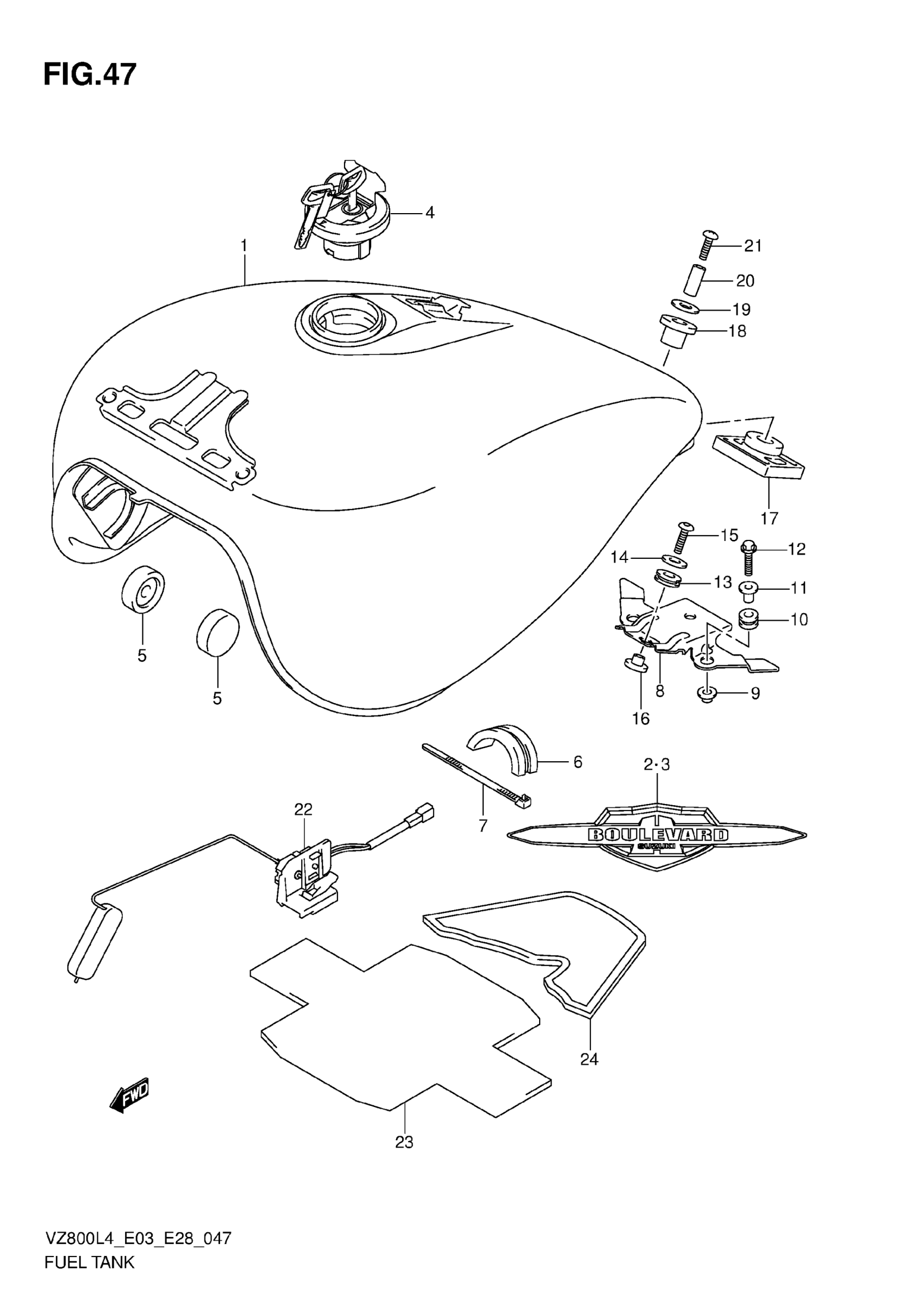

Suzuki VZ800L4 (2014) FUEL TANK (VZ800L4 E03) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-39GK0-YVB

Unavailable

1

TANK ASSY, FUEL (RED)

44100-39GK0-YVZ

Unavailable

2

EMBLEM, RH

68111-39G01

$77.90

3

EMBLEM, LH

68121-39G01

$76.43

4

CAP SET,FUEL TA This part replaces 44200-39830.

44200-39832

$122.83

5

CUSHION This part replaces 09329-10007.

09329-10026

$1.91

6

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.34

7

CLAMP (L:250)

09407-25402

$4.19

8

BRACKET, REAR

44530-39G20

Unavailable

9

WASHER

09169-06076

$2.88

10

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.07

11

WASHER

09169-06070

$5.17

12

SCREW

02162-0625B

$1.46

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

14

WASHER (8.5X26X1.6)

09160-08151

$2.00

15

BOLT (8X23)

09106-08150

$3.13

16

WASHER

44512-39G00

Unavailable

17

CUSHION,FUEL TANK RR LWR This part replaces 44542-41F00.

44542-41F01

$8.02

18

CUSHION,FUEL TANK RR UPR This part replaces 44541-41F01.

44541-41F02

$4.97

19

SPACER (8.2X12.5X23.5) This part replaces 09180-08057.

09180-08227

$2.07

20

WASHER (8.5X33X1.5)

09160-08146

$2.58

21

BOLT (8X35)

01550-0835A

$2.80

22

GUAGE ASSY,FUEL This part replaces 34810-39G00.

34810-39G01

$148.25

23

SHIELD, TANK HEAT

44192-39G00

$166.93

24

SHIELD, TANK HEAT NO.2

44193-39G00

$115.30
