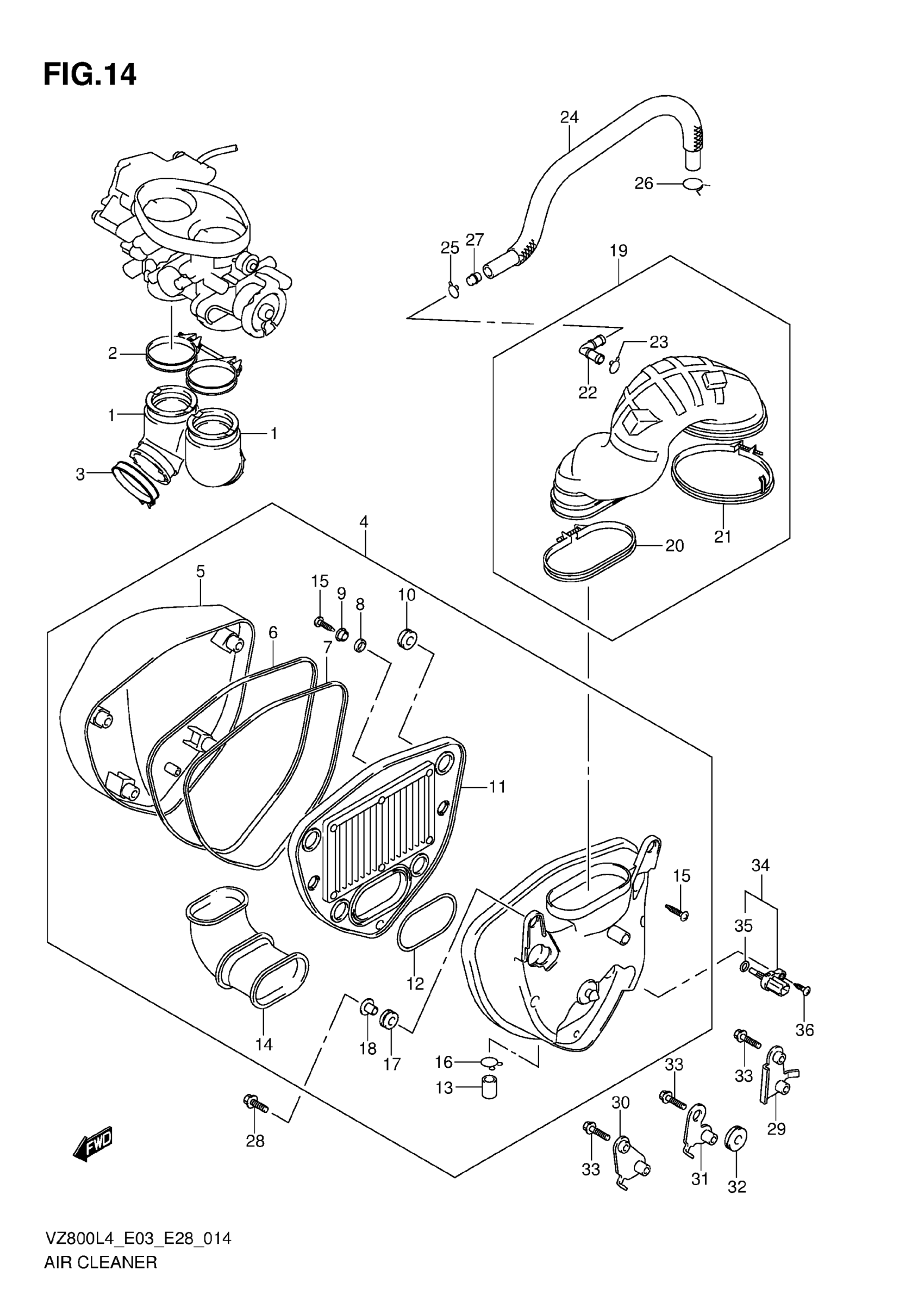

Suzuki VZ800L4 (2014) AIR CLEANER Diagram

#

Description
Price

1

PIPE,INTAKE This part replaces 13111-41F11.

13111-41F12

$38.70

2

CLAMP

13170-39G00

$33.67

3

CLAMP

13170-15G00

$7.25

4

CASE ASSY,AIR CLEANER

13701-39G20

$523.42

5

CAP

13741-39G20

$292.80

6

GASKET

13727-39G20

$19.62

7

GASKET

13726-39G20

$19.97

8

CUSHION

13747-39G20

$3.04

9

WASHER

09169-06082

$4.70

10

CUSHION

13747-41F00

$2.93

11

FILTER

13780-39G20

$46.55

12

GASKET, FILTER

13746-39G20

$14.00

13

.PLUG

13859-41B10

$6.94

14

TUBE, INLET

13891-39G20

Unavailable

15

SCREW

03541-0525B

$2.34

16

CLIP

09401-14301

$2.17

17

CUSHION

09320-09016

$1.97

18

COLLAR

13812-29C50

$3.05

19

TUBE ASSY, OUTLET

13880-39G21

Unavailable

20

CLAMP

13826-41F20

$28.25

21

CLAMP

13826-39G21

Unavailable

22

JOINT

13858-14D20

$6.80

23

CLIP

09401-15101

$2.28

24

TUBE, BREATHER

13853-39G20

Unavailable

25

CLIP

09401-15101

$2.28

26

CLIP

09401-16301

Unavailable

27

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.97

28

SCREW (6X20)

09139-06063

$4.35

29

BRACKET, NO.1

13761-39G20

Unavailable

30

BRACKET, NO.2

13762-39G20

Unavailable

31

BRACKET, NO.3

13763-39G20

Unavailable

32

CUSHION

09320-08028

$2.80

33

BOLT

01547-0625A

$2.01

34

SENSOR, AIR TEMP

13650-41F10

$71.40

35

O-RING

13655-41F10

Unavailable

36

SCREW

03511-0516B

$2.29
