2012 Suzuki VZ800L2 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

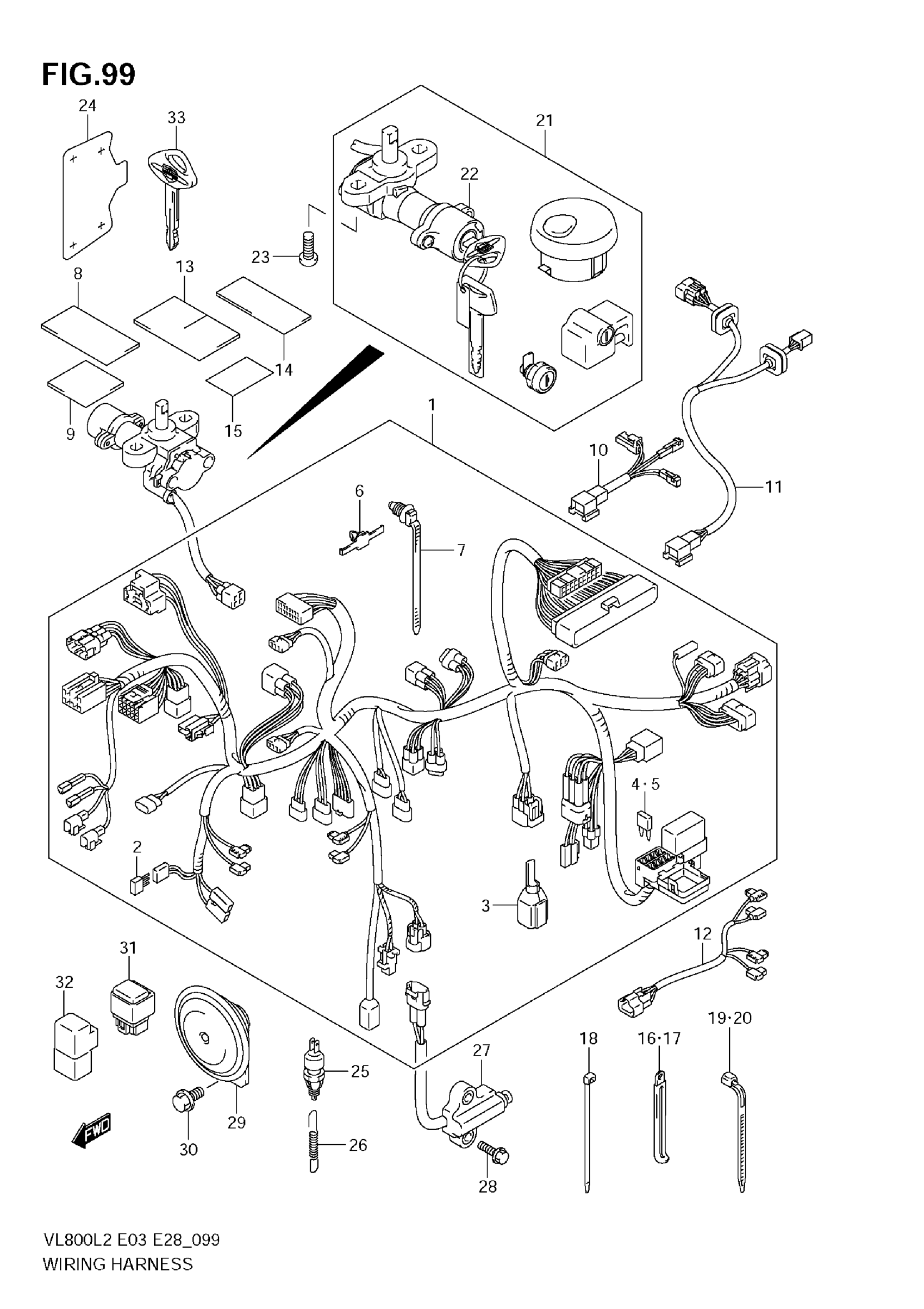

2012 Suzuki VZ800L2 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-41FS0

1
Out of stock

2

RECTIFIER ASSY

32800-16A00

2
Out of stock

3

BOOT

36717-41F00

1
Out of stock

4

FUSE (10A)

09481-10501

5
Out of stock

5

FUSE (20A)

09481-20501

1
Out of stock

6

CLAMP

09407-05410

3
Out of stock

7

CLAMP (L:154)

09407-17403

4
Out of stock

8

TAPE,HARNESS (28X50X0.13)

36611-16G00

2
Out of stock

9

TAPE, HARNESS (35X35)

36611-41F00

1
Out of stock

10

WIRE, REAR COMB NO.2

36856-41F00

1

$41.55

In stock

11

1

$36.85

In stock

12

WIRE, IGNITION COIL LEAD

36854-39G00

1
Out of stock

13

PROTECTOR, WIRING HANRESS

36920-33C00

2
Out of stock

14

1

$3.42

In stock

15

1

$5.18

In stock

16

2

$1.89

In stock

17

CLAMP (L:135)

09404-06435

1

$4.00

In stock

18

CLAMP (L:145)

09407-14407

4
Out of stock

19

CLAMP (L:165)

09407-18402

1
Out of stock

20

CLAMP (L:190)

09407-19401

1
Out of stock

21

1

$351.32

In stock

22

1

$169.77

In stock

23

BOLT (8X20)

09139-08016

2
Out of stock

24

1

$13.73

In stock

25

1

$18.15

In stock

26

SPRING

09443-06073

1

$3.36

In stock

28

BOLT (6X20)

09103-06279

2
Out of stock

29

HORN ASSY

38500-41F30

1

$98.98

In stock

30

BOLT (8X16)

01550-0816A

1
Out of stock

31

RELAY ASSY, HEAD LAMP

38740-24A00

1

$71.43

In stock

32

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

33

KEY, BLANK | OPT

37146-41FA0

1

$56.87

In stock
