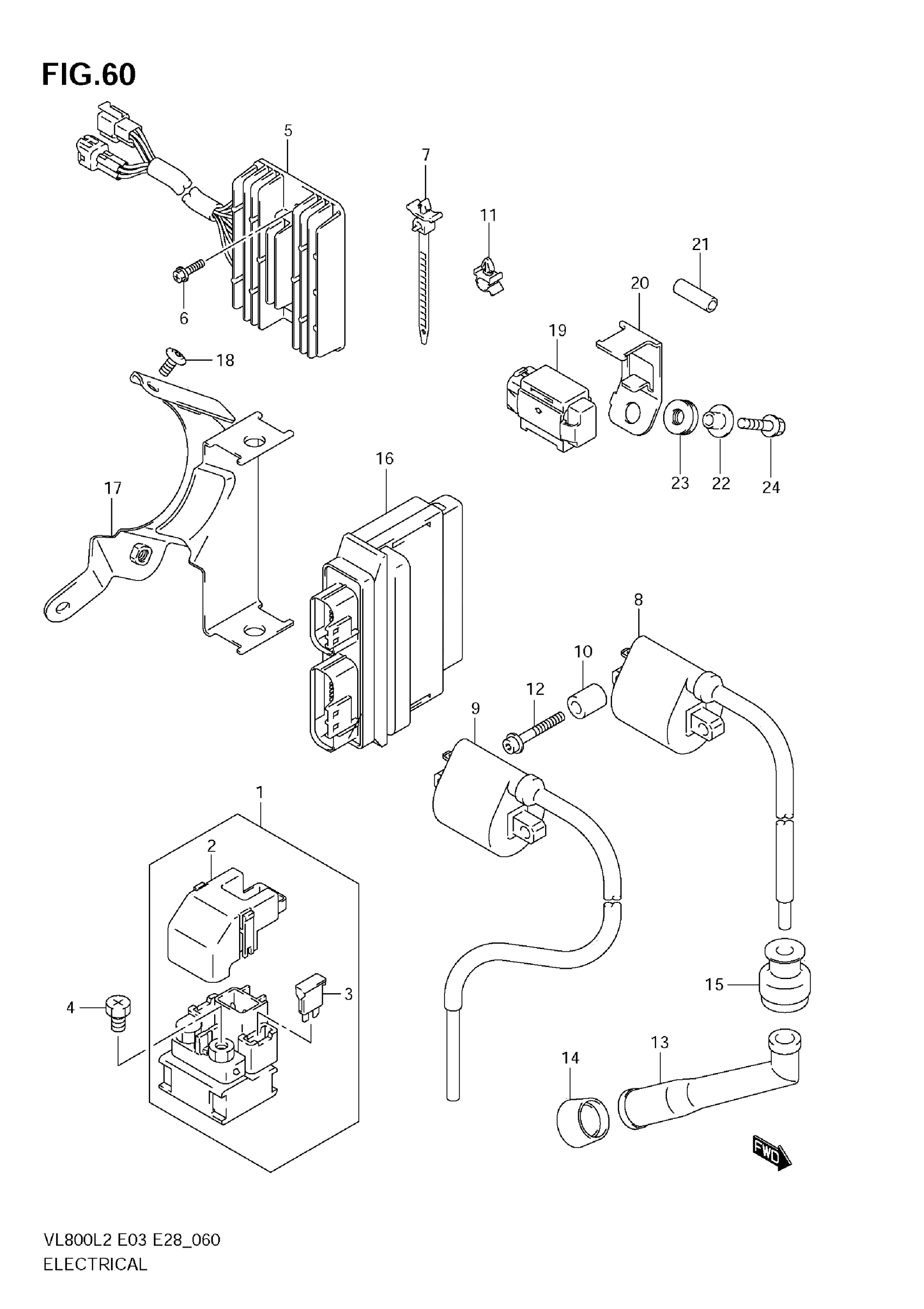

Suzuki VZ800L2 (2012) ELECTRICAL (VL800 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$61.62

2

COVER, RELAY ASSY

31861-47E00

$18.23

3

FUSE (30A)

09481-30101

$2.28

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY This part replaces 32800-41F11.

32800-47H00

$240.89

6

BOLT

02162-0620B

$2.19

7

CLAMP (L:90)

09407-11402

$1.81

8

COIL ASSY, IGNITION This part replaces 33410-17G00.

33410-17G01

$68.66

9

COIL ASSY,IGNITION This part replaces 33420-41F10.

33420-41F11

$97.08

10

SPACER (6.4X10X18)

09180-06195

$4.70

11

CLAMP

09403-07308

$2.25

12

BOLT (5X35)

09106-05033

Unavailable

13

CAP, SPARK PLUG

33510-11410

$23.76

14

SEAL, SPARK PLUG

33541-47D00

$7.16

15

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

16

CONTROL UNIT, FI

32920-39GH0

Unavailable

17

BRACKET

44880-43H00

Unavailable

18

SCREW (6X12)

09139-06108

Unavailable

19

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

20

BRACKET, FUEL CUT

33961-41F00

Unavailable

21

HOSE,5X10X600 | CUT AS REQUIRED L:10 This part replaces 09352-50823-600.

44421-13ER0

$9.08

22

SPACER (6.2X8.4X6.9)

09180-06325

$3.47

23

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.67

24

BOLT

01547-0616A

$2.01
