2012 Suzuki VZ800L2 Headlamp Housing Diagram

← All diagrams

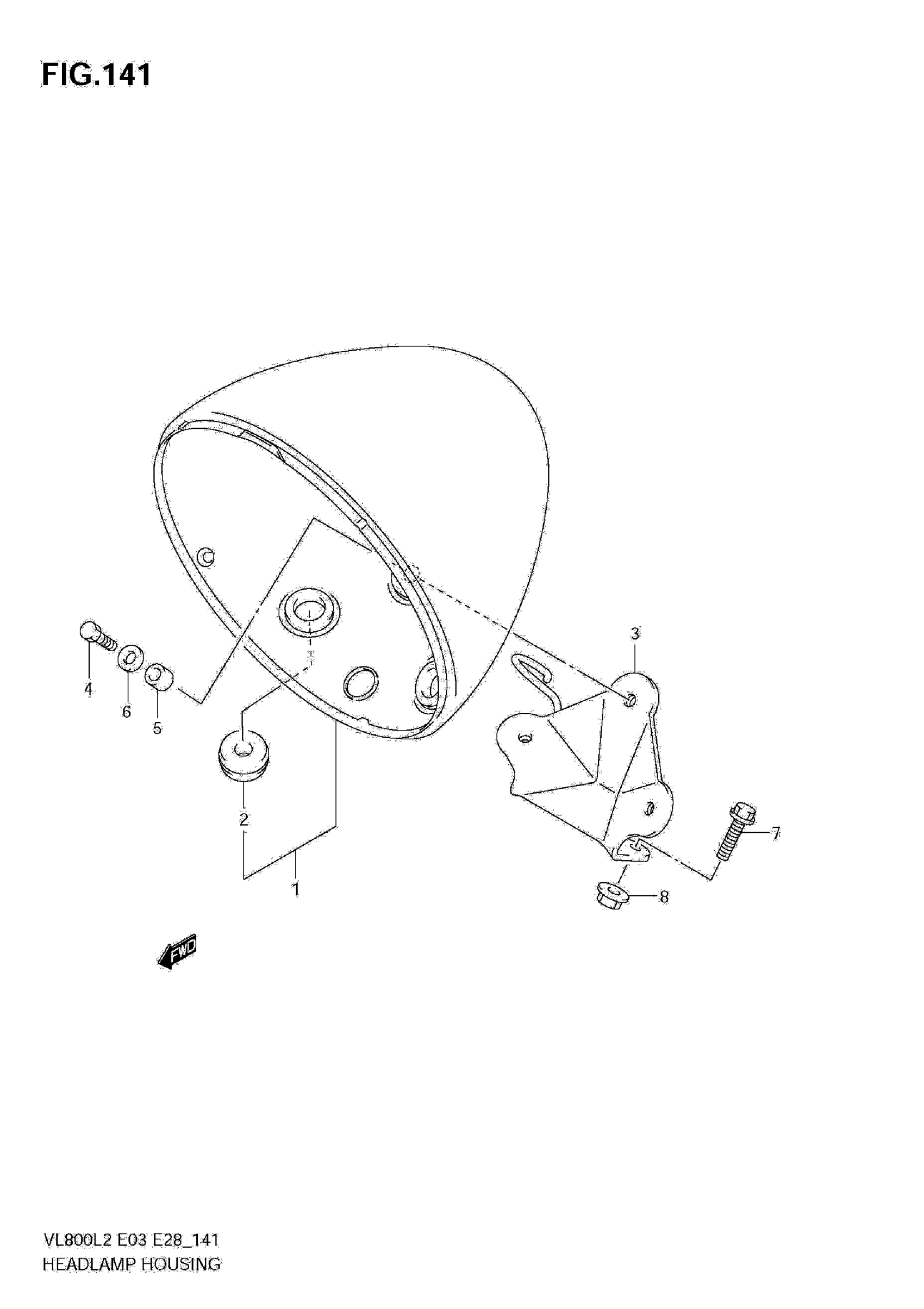

Find the part on the Headlamp Housing diagram for your 2012 Suzuki VZ800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki VZ800L2 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP

51800-10FA0

1
Out of stock

2

CUSHION

09320-09010

3

$2.92

In stock

3

BRACKET

51850-41FA0

1
Out of stock

4

BOLT

01500-0625B

3
Out of stock

5

SPACER (6.5X9X11.5)

09180-06266

3
Out of stock

6

WASHER (6.5X20X1.2)

09160-06152

3
Out of stock

7

BOLT

01550-0825B

2
Out of stock

8

NUT

08319-3108B

2
Out of stock
← Headlamp Assy Magneto →

More Electrical diagrams
