2004 Suzuki VZ800 Rear Fender Diagram

← All diagrams

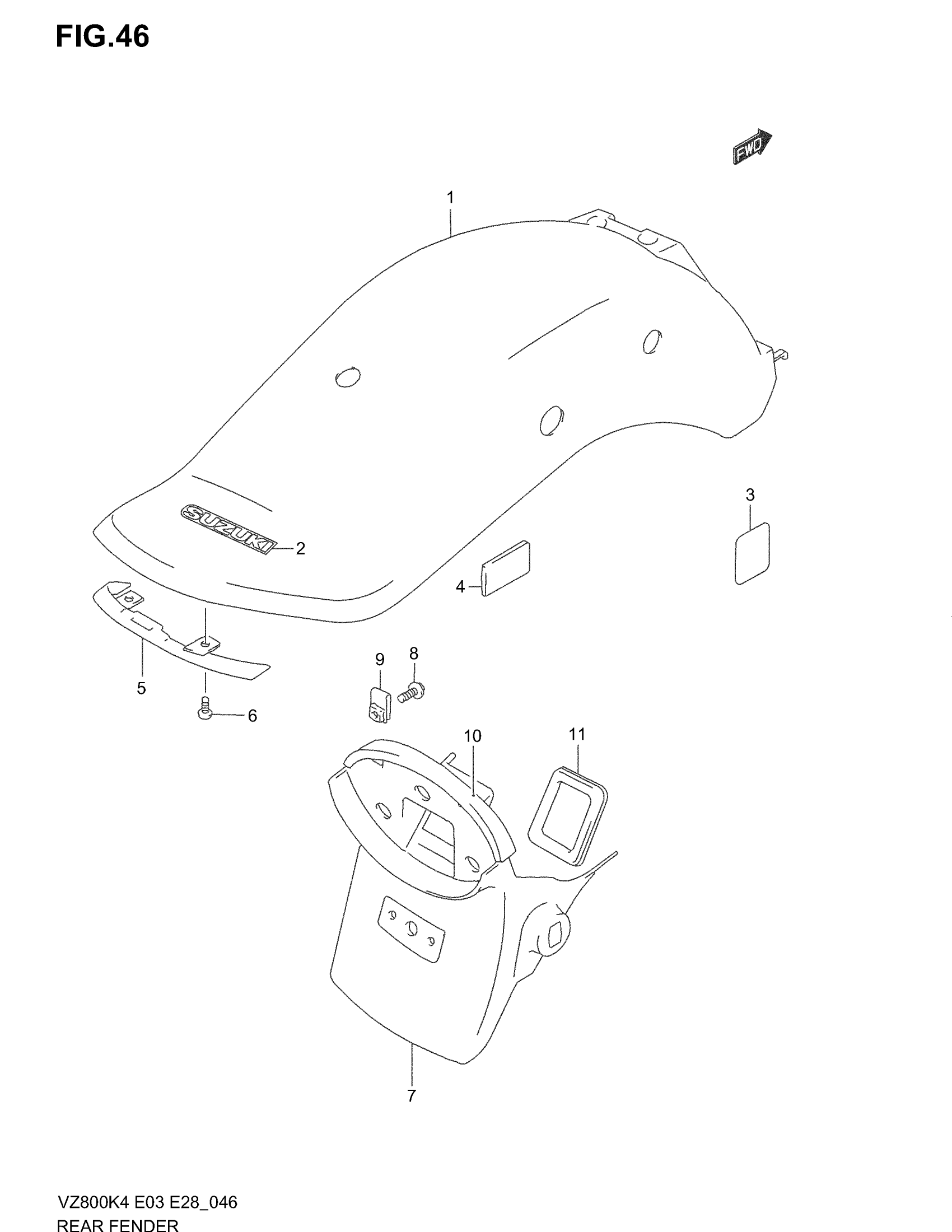

Find the part on the Rear Fender diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Suzuki VZ800 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR (BLACK)

63110-48EB0-YAY

1
Out of stock

1

FENDER, REAR (BLUE) | Includes Item(s) 2 - 3

63110-48EB0-YBB

1
Out of stock

2

EMBLEM | FOR YAY

68171-26F00-ACV

1
Out of stock

2

EMBLEM | FOR YBB

68171-26F00-ALN

1
Out of stock

3

PAD, REAR FENDER

61544-94500

4

$1.22

In stock

4

CUSHION

09320-13015

1

$2.92

In stock

5

COVER, REAR FENDER REAR

63112-48E00

1
Out of stock

6

SCREW This part replaces 03541-05123.

03541-0512A

2
Out of stock

7

EXTENSION, REAR FENDER

63311-48E00

1
Out of stock

8

2

$2.22

In stock

9

2

$8.97

In stock

10

CUSHION, REAR FENDER EXTENSION

63312-48E00

1
Out of stock

11

1

$14.87

In stock
