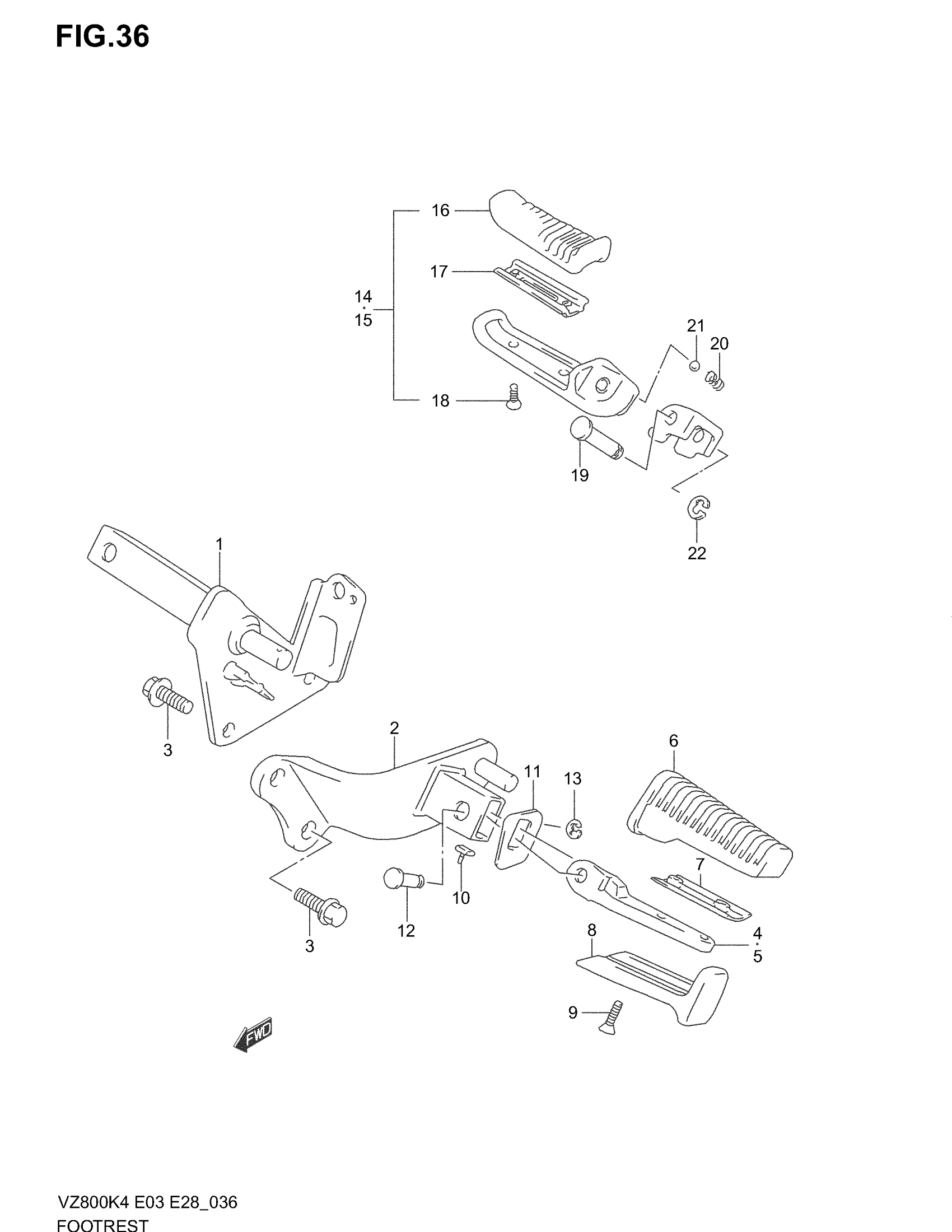

Suzuki VZ800 (2004) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-48E20

$171.78

2

BRACKET, FRONT FOOTREST LH

43520-48E20

$171.78

3

BOLT This part replaces 01580-10353.

01580-1035A

$5.17

4

BAR, FRONT FOOTREST RH

43531-48E00

$70.32

5

BAR, FRONT FOOTREST LH

43541-48E00

$70.32

6

RUBBER,FR FOOTR This part replaces 43551-38B00.

43551-38B01

$14.85

7

PLATE, RUBBER STOPPER

43580-38B10

$14.18

8

COVER, FRONT FOOTREST

43585-38B11

Unavailable

9

SCREW

09127-05018

Unavailable

10

CUSHION,FR FOOT This part replaces 43571-48E00.

43571-48E01

$3.35

11

WASHER, FRONT FOOTREST

43546-38B01

$7.07

12

PIN

09208-08011

$2.80

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

14

FOOTREST ASSY,P This part replaces 43600-38E00.

43600-38E01

$84.85

15

FOOTREST ASSY,P | Includes Item(s) 16 - 18 This part replaces 43700-38E00.

43700-38E01

$73.83

16

RUBBER,PILLION This part replaces 43612-38A00.

43612-38A10

$9.67

17

PLATE, RUBBER STOP

43632-38A00

$8.32

18

SCREW

09127-05017

$3.00

19

PIN

09208-08011

$2.80

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
