2004 Suzuki VZ800 Rear Carburetor Diagram

← All diagrams

Find the part on the Rear Carburetor diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

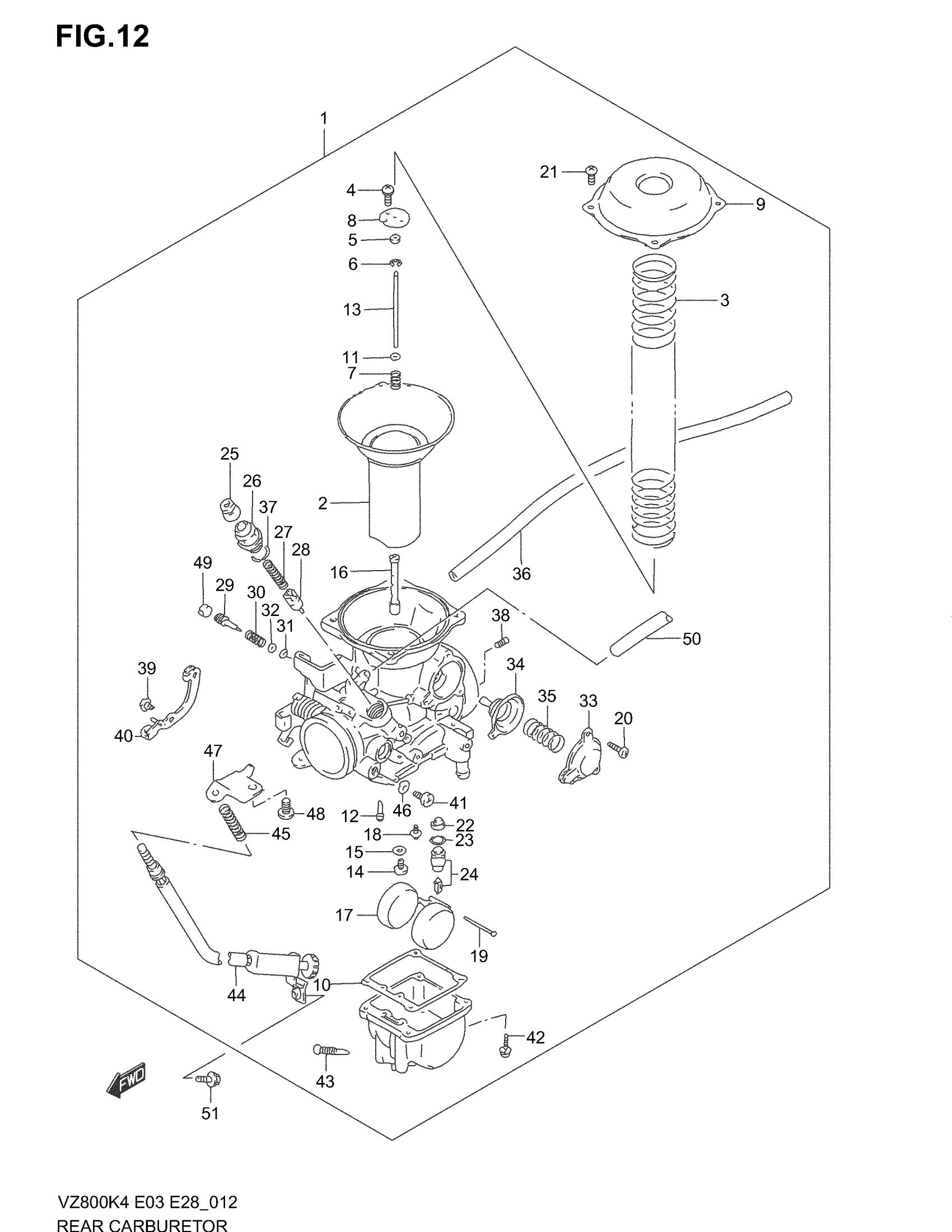

2004 Suzuki VZ800 Rear Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, RR | E3,E28

13220-48EF0

1
Out of stock

1

CARBURETOR ASSY, RR | E33; Includes Item(s) 2 - 50

13220-48EG0

1
Out of stock

2

DIAPHRAGM ASSY

13500-38A10

1
Out of stock

3

SPRING

13503-38B00

1
Out of stock

4

SCREW

02112-33073

2
Out of stock

5

RING

13387-47010

1

$7.41

In stock

6

CLIP

13394-10010

1

$4.76

In stock

7

SPRING

13388-44030

1

$9.17

In stock

8

PLATE

13389-37400

1

$7.98

In stock

9

COVER

13502-45CE0

1
Out of stock

10

GASKET

13251-38A10

1
Out of stock

11

WASHER

13382-44030

1

$3.81

In stock

12

.JET, PILOT (#42.5)

09492-42010

1
Out of stock

13

NEEDLE, JET (5D83-1)

13383-48E70

1
Out of stock

14

JET, MAIN (100)

09491-20017

1
Out of stock

15

WASHER

13382-03110

1

$2.92

In stock

16

JET, NEEDLE (P-3M)

09494-00902

1
Out of stock

17

FLOAT

13252-23010

1
Out of stock

18

SCREW

13602-05A10

1

$3.55

In stock

19

PIN

13254-92311

1

$2.41

In stock

20

SCREW

13602-19B50

2

$3.42

In stock

21

SCREW

13602-48B00

4

$4.70

In stock

22

FILTER

13376-19F00

1

$10.26

In stock

23

O RING

13374-35C00

1

$5.97

In stock

24

VALVE ASSY, NEEDLE

13370-39A00

1
Out of stock

25

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

26

HOLDER

13418-43410

1

$7.20

In stock

27

SPRING

13417-22010

1
Out of stock

28

PLUNGER

13411-01400

1

$13.27

In stock

29

SCREW, PILOT (1 5/8)

13279-47070

1

$13.33

In stock

30

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

31

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

32

WASHER

13291-29900

1
Out of stock

33

COVER

13484-45C00

1
Out of stock

34

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

35

SPRING

13481-45C10

1
Out of stock

36

HOSE | L:650!315 This part replaces 13683-19B80.

13683-19B81

1
Out of stock

37

1

$2.01

In stock

38

JET, AIR (70)

09492-70004

1
Out of stock

39

SCREW

13602-05A30

1
Out of stock

40

LEVER ASSY

13554-38A10

1
Out of stock

41

SCREW

09125-05122

1
Out of stock

42

SCREW

13601-04148

4
Out of stock

43

1

$4.97

In stock

44

ADJUSTER

13267-48E00

1
Out of stock

45

SPRING

13271-93011

1
Out of stock

46

GASKET

13523-46110

1
Out of stock

47

BRACKET

13621-38A10

1
Out of stock

48

SCREW

13602-06128

1
Out of stock

49

PLUG

13281-05A00

1
Out of stock

50

HOSE (5X8X430) | E33 This part replaces 13683-38B00.

13683-38B01

1
Out of stock

51

BOLT This part replaces 01550-06103.

01550-0610A

1
Out of stock
