2004 Suzuki VZ800 Front AIR Cleaner Diagram

← All diagrams

Find the part on the Front AIR Cleaner diagram for your 2004 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

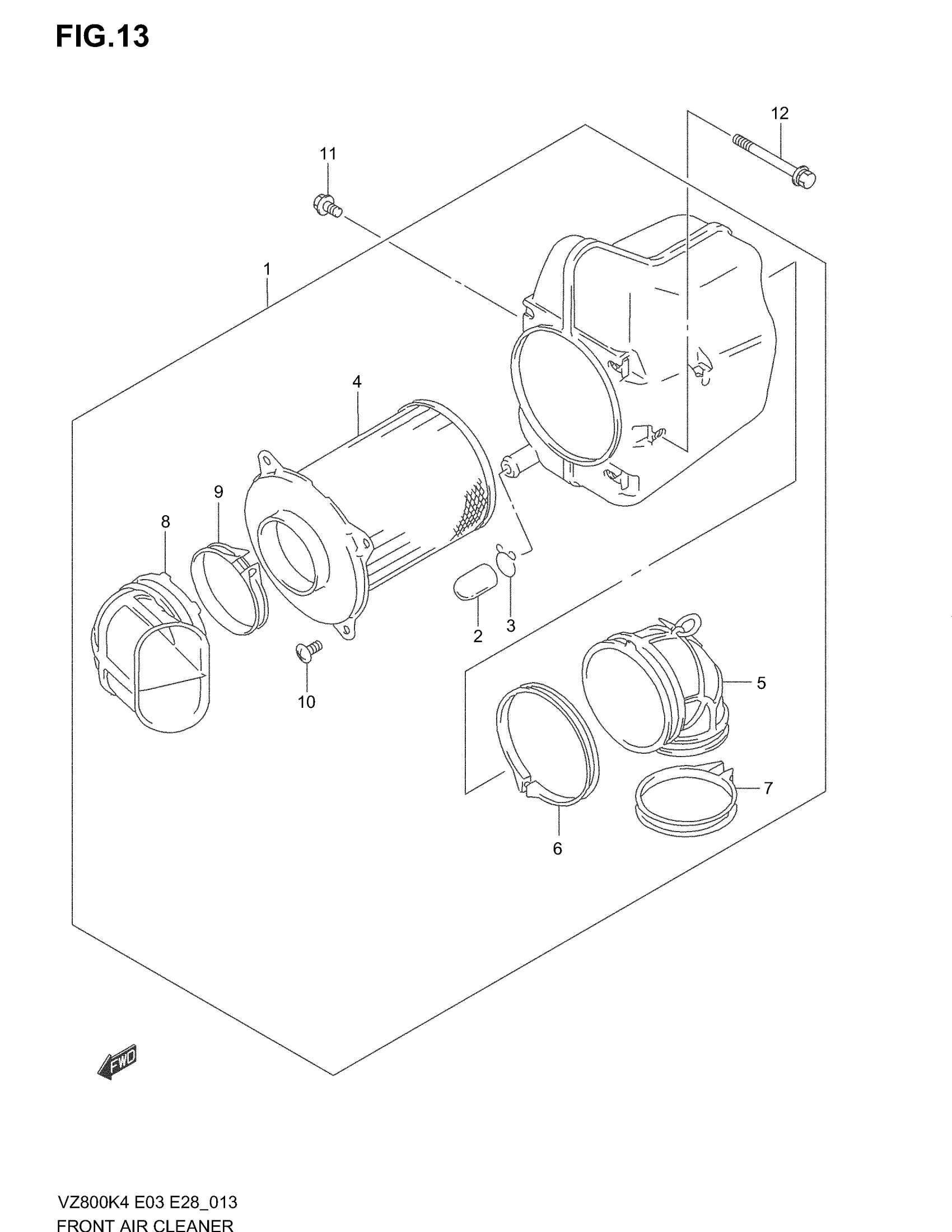

2004 Suzuki VZ800 Front AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR FRONT | Includes Item(s) 2 - 10

13700-48E50

1
Out of stock

2

.PLUG

13859-41B10

1
Out of stock

3

CLIP

09401-14301

1
Out of stock

4

FILTER ASSY

13780-48E00

1
Out of stock

5

TUBE OUTLET This part replaces 13881-38B00.

13881-38B01

1
Out of stock

6

CLAMP

09402-72203

1
Out of stock

7

CLAMP

09402-58208

1
Out of stock

8

TUBE,INLET This part replaces 13891-45C30.

13891-45C31

1
Out of stock

9

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

10

SCREW

02142-05107

4
Out of stock

11

SCREW This part replaces 02142-06123.

02142-0612A

1
Out of stock

12

BOLT

02142-06553

1
Out of stock
