2003 Suzuki VZ800 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

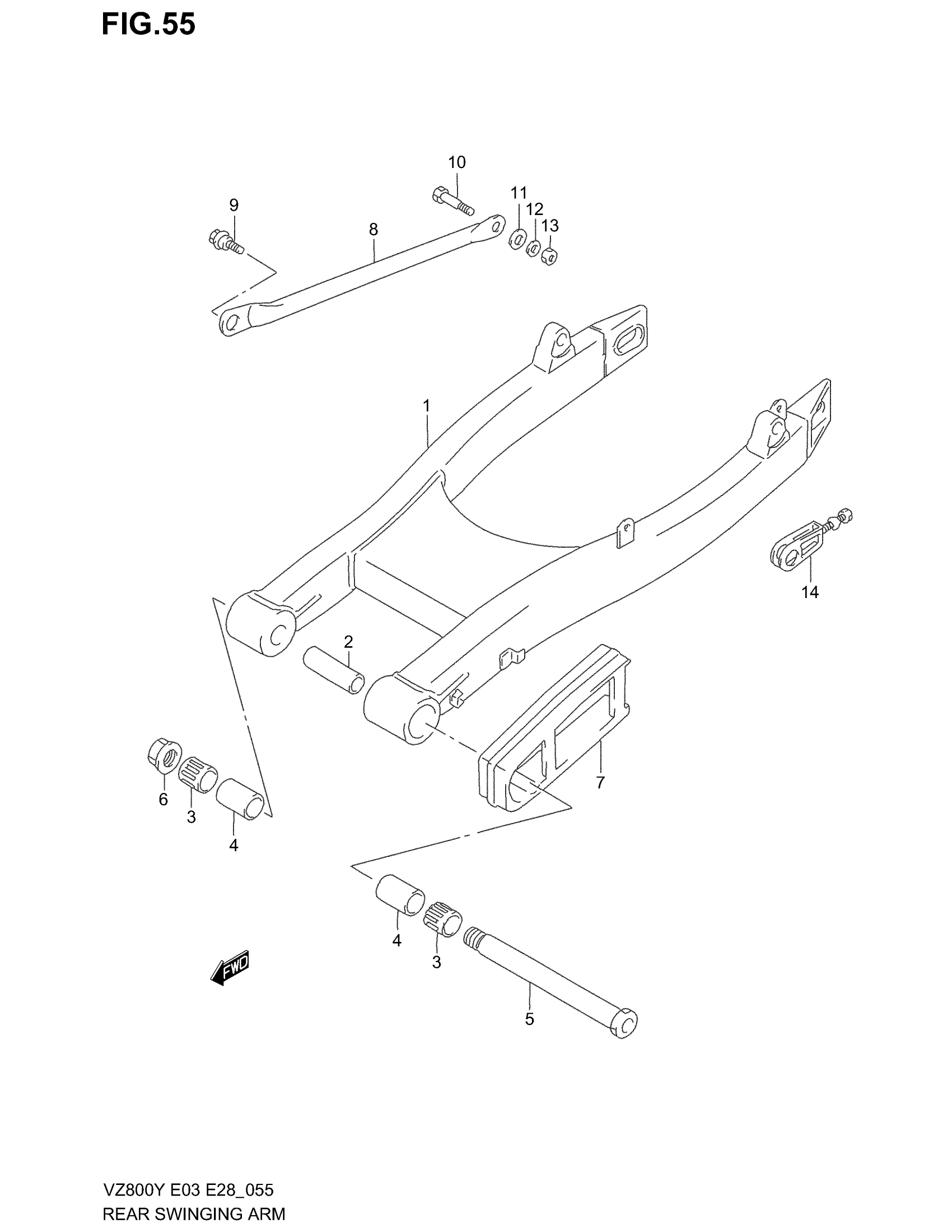

2003 Suzuki VZ800 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM, REAR (BLACK)

61100-48E02-019

1
Out of stock

2

SPACER, PIVOT CENTER

61282-48E00

1
Out of stock

3

2

$30.11

In stock

4

SPACER, PIVOT

61251-21E00

2

$33.92

In stock

5

SHAFT, PIVOT

61211-45C01

1
Out of stock

6

1

$26.62

In stock

7

1

$38.87

In stock

8

TORQUE LINK, REAR

64310-48E00

1
Out of stock

9

BOLT, FRONT (10X30)

09111-10056

1

$9.90

In stock

10

BOLT, REAR (10X41)

09111-10057

1

$4.82

In stock

11

CUSHION

09320-12501

1

$6.74

In stock

12

1

$2.54

In stock

13

NUT

09159-10027

1

$3.04

In stock

14

ADJUSTER ASSY, CHAIN

61400-19D90

2

$38.12

In stock
