2003 Suzuki VZ800 Rear Shock Absorber Diagram

← All diagrams

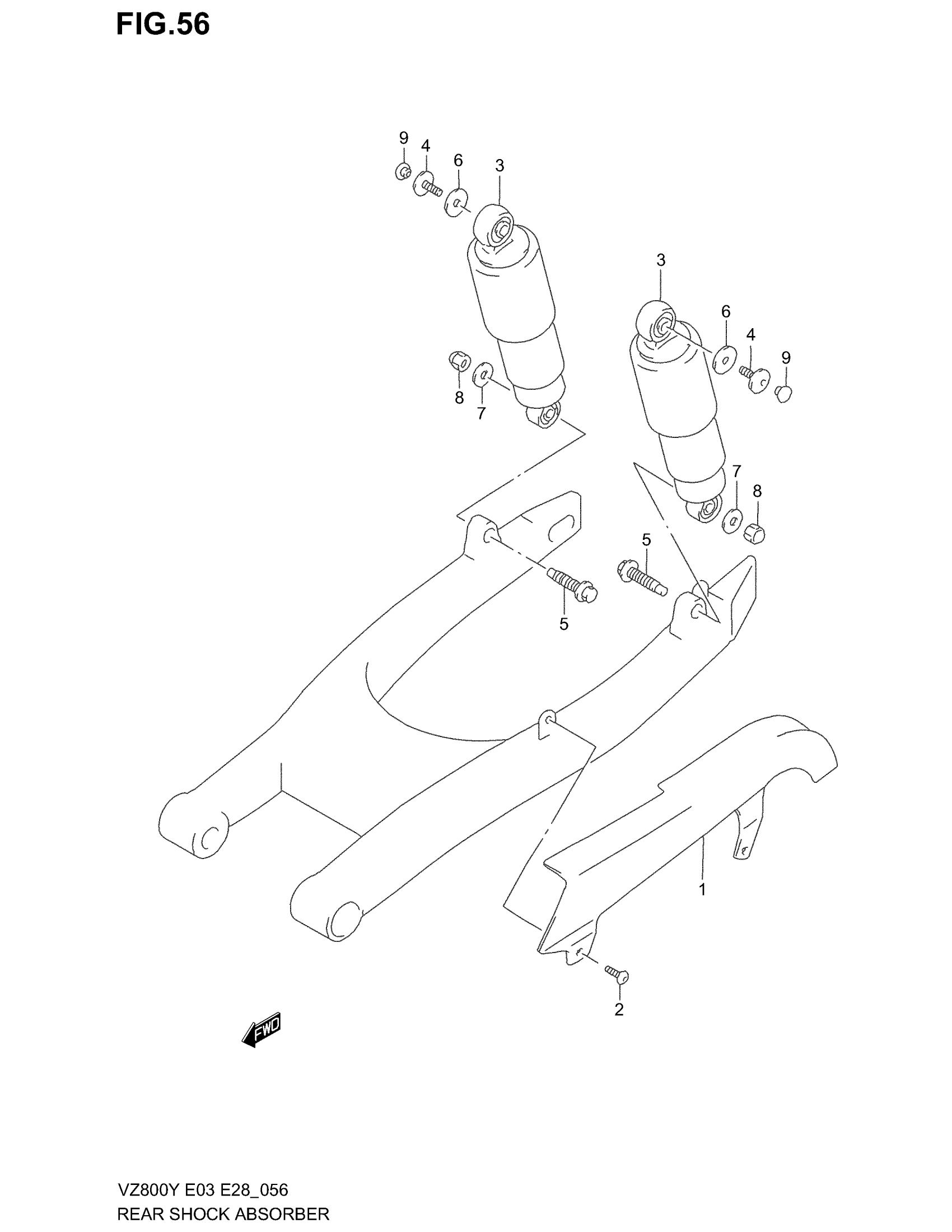

Find the part on the Rear Shock Absorber diagram for your 2003 Suzuki VZ800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki VZ800 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CHAIN

61310-48E10

1
Out of stock

2

SCREW

02142-06107

—
Out of stock

3

ABSORBER ASSY, REAR SHOCK

62100-48E10

2
Out of stock

4

BOLT, UPPER (8X20)

09106-08094

2
Out of stock

5

BOLT, LOWER (10X52.1)

62313-48E00

2
Out of stock

6

WASHER, MUFFLER SUPPORT This part replaces 09160-08138.

09160-08503

2
Out of stock

7

WASHER, LOWER (10.5X28X2.30)

09160-10035

2
Out of stock

8

NUT

08313-10107

2
Out of stock

9

CAP

09250-06009

2

$3.38

In stock
