Description

Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$51.32

2

LEVER ASSY, BRAKE | MODEL V This part replaces 57300-48E00.

57300-32C10

$84.38

2

LEVER ASSY, BRAKE | MODEL W/X/Y/K1/K2/K3; Includes Item(s) 3 - 9

57300-32C10

$84.38

3

LEVER, BRAKE

57420-32C00

$26.47

4

KNOCKER | MODEL V/W This part replaces 57430-32C00.

57430-32C10

$68.13

4

KNOCKER | MODEL X/Y/K1/K2/K3

57430-32C10

$68.13

5

SPRING

57438-32C00

$6.40

6

BOLT, LEVER

57437-32C01

$9.70

7

NUT This part replaces 08319-31063.

08319-3106A

$2.01

8

BOLT, KNOCKER | MODEL V/W

57431-48E00

$10.08

8

BOLT, KNOCKER | MODEL X/Y/K1/K2/K3

57431-17C00

$6.51

9

NUT

08316-10067

$2.27

10

SWITCH ASSY,FR BRAKE | Includes Item(s) 11 This part replaces 57460-17C00.

57460-14J02

$35.21

11

SCREW

57465-17C00

$2.37

12

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

13

LEVER ASSY,CLUT | Includes Item(s) 14 - 22 This part replaces 57500-24B01.

57500-24B02

$42.07

14

LEVER, CLUTCH

57620-24B01

$20.70

15

BOLT, CLUTCH LEVER

57531-24B00

$9.97

16

SPACER, CLUTCH LEVER

57623-24B00

$6.00

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

18

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

$8.29

19

.NUT, LOCK This part replaces 57442-45C00.

57442-45C01

$7.92

20

.SWITCH,CLUTCH

57560-05A00

$11.12

21

SCREW This part replaces 02112-03205.

02112-0320B

$4.61

22

BOLT

07130-06207

$2.80

23

COVER,CLUTCH LE This part replaces 57661-48E00.

57661-48E01

$10.45

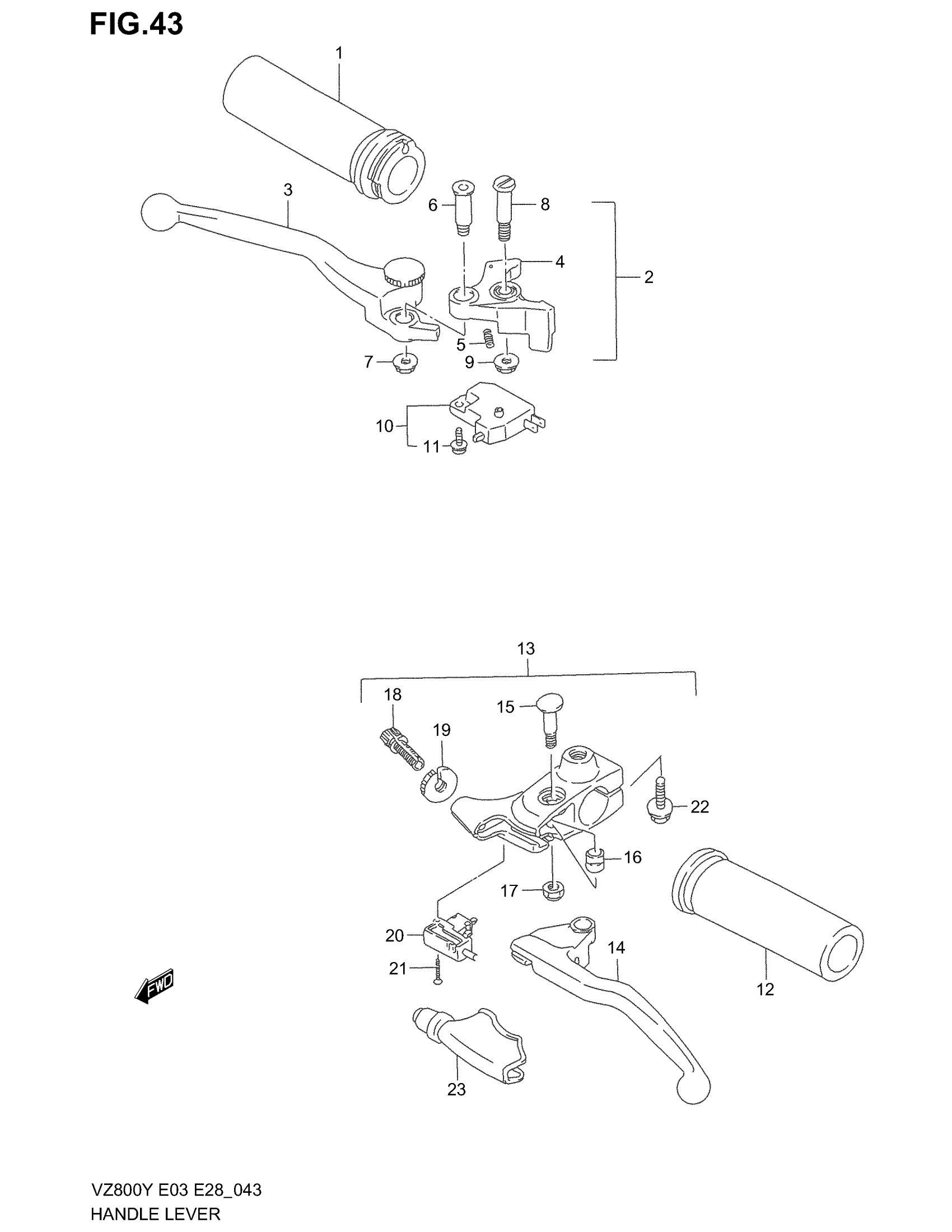

Suzuki VZ800 (2003) HANDLE LEVER Diagram
